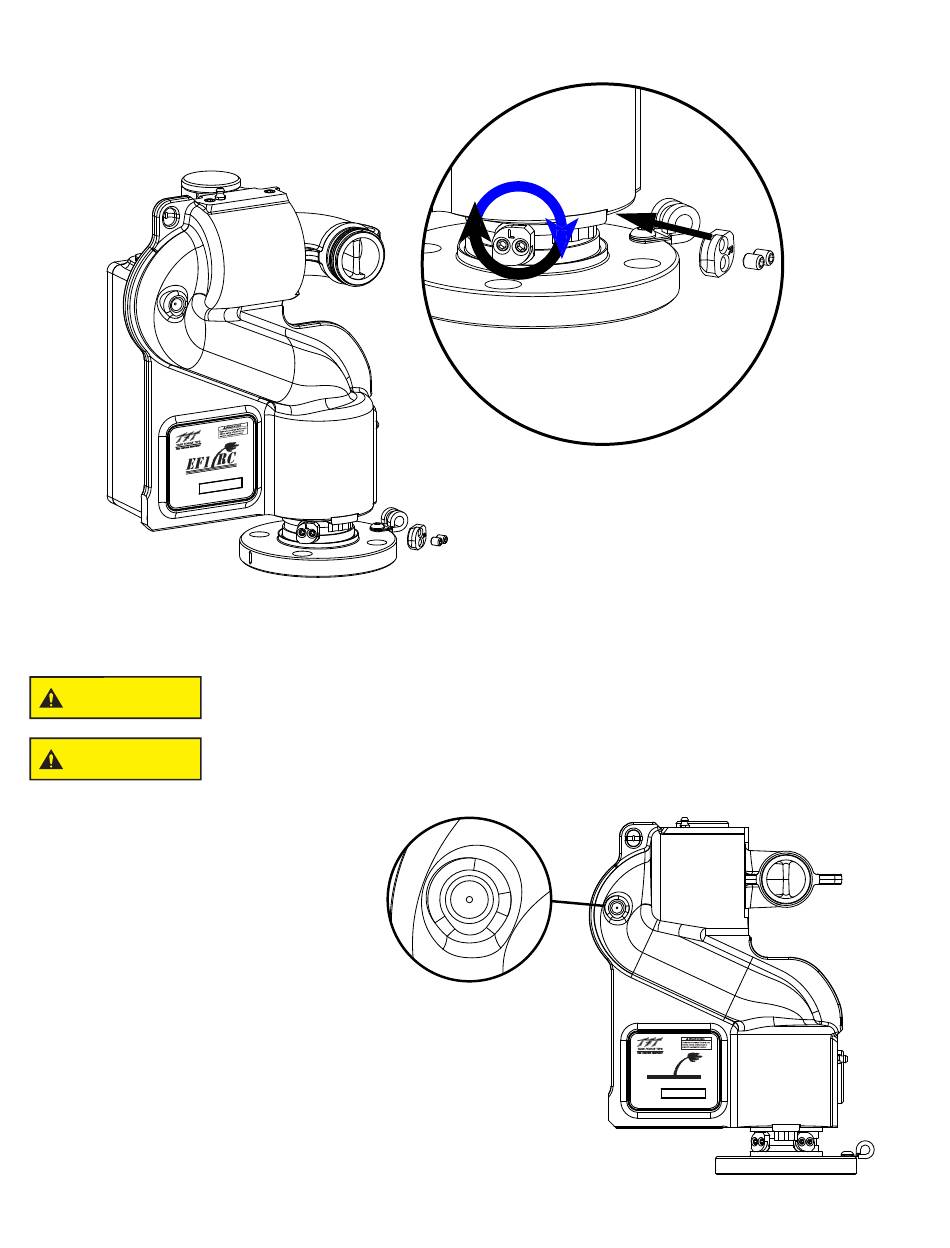

4.2.1 TRAVEL STOPS
Vertical Travel Stops are cast into the elbow of the monitor. Instructions on how to install horizontal travel stops are shown below.
®
ww w.t ft.
61 61 •
21 9- 46 2-
MO DE L#
w w w. tf
SE RI AL #
4.3 NOZZLE INSTALLATION
The nozzle is simply screwed onto the monitor's exit threads.
The nozzle threads must match the threads of the monitor elbow in both size and type. Mismatched
CAUTION
or damaged threads may cause the nozzle to leak or uncouple under pressure and could cause
injury.
Do not connect aluminum to brass or brass to aluminum. Dissimilar metals coupled together
CAUTION
can cause galvanic corrosion that will freeze the threaded joint or cause complete loss of thread
engagement. If dissimilar metals must be coupled together, the effects of corrosion can be greatly
delayed by various coatings on the metal such as powder paint, hard anodizing, or silicone grease.
4.4 PRESSURE GAGE
There is a raised boss on the front of the monitor.
This raised boss is not machined from the factory
but may be drilled and tapped for ¼ NPT threads if a
pressure gage is desired on the monitor.
©Copyright Task Force Tips, Inc. 2017
Y11 65
A
DE IN US
co m • MA
12 34 56
t. co m -Y
1. Rotate horizontal travel stop 90° one direction
and insert into coupling track.
2. Rotate back to original position ensuring the letter
is located at the top of the travel stop.
3. Rotate the monitor to the desired position, position
the travel stop next to the Monitor's Stop Ear.
4. Tighten set screws to lock the travel stop position.
Fig 4.2.1 Travel Stops
Fig 4.4 Pressure Gage
10
®
Y1165
ef1 rc
219-462-6161 • www.tft.com • MADE IN USA
MODEL#
SERIAL# www.tft.com-Y123456
LIY-210 December 4, 2017 Rev00
