3.0 GENERAL INFORMATION

The EF1 RC monitor is extremely compact, yet it has a large 1-½ inch waterway, capable of flowing up to 200 gpm, making it the
ideal forestry bumper turret. Waterway with turning vane has only 15 psi (1.3 bar) friction loss at 200 gpm (760 l/min). Elevation range
is 90° above horizontal to 45° below. Horizontal travel is 270° (135° either side of a center position). Field changeable horizontal
travel stops are factory set to give 180° (90° either side of a center position). Designed for 12 VDC or 24 VDC operation, selection
is automatic. The motor control circuits use position encoders and current limiting to protect the drive train at the ends of travel. Unit
has waterproof factory installed plug on power wire for easy removal or reinstallation. Electric drives and control box are waterproof.
Main waterway made from hardcoat anodized ANSI 356-T6 aluminum. Silver powder coat finish. Various inlets are available.

3.1 PART IDENTIFICATION

REMOVE CAP TO ACCESS
MANUAL OVERRIDE HEX NUT
FOR ELEVATION
ELECTRONICS
ENCLOSURE
©Copyright Task Force Tips, Inc. 2017
®
Y1 16 5
E IN US A
om • M AD
w w w. tf t.c
61 61 •
21 9- 46 2-
M O D E L#
1 2 3 4 5 6
.c o m -Y
w w w .t ft
SE R IA L#
MODEL & SERIAL
NUMBER ON LABEL

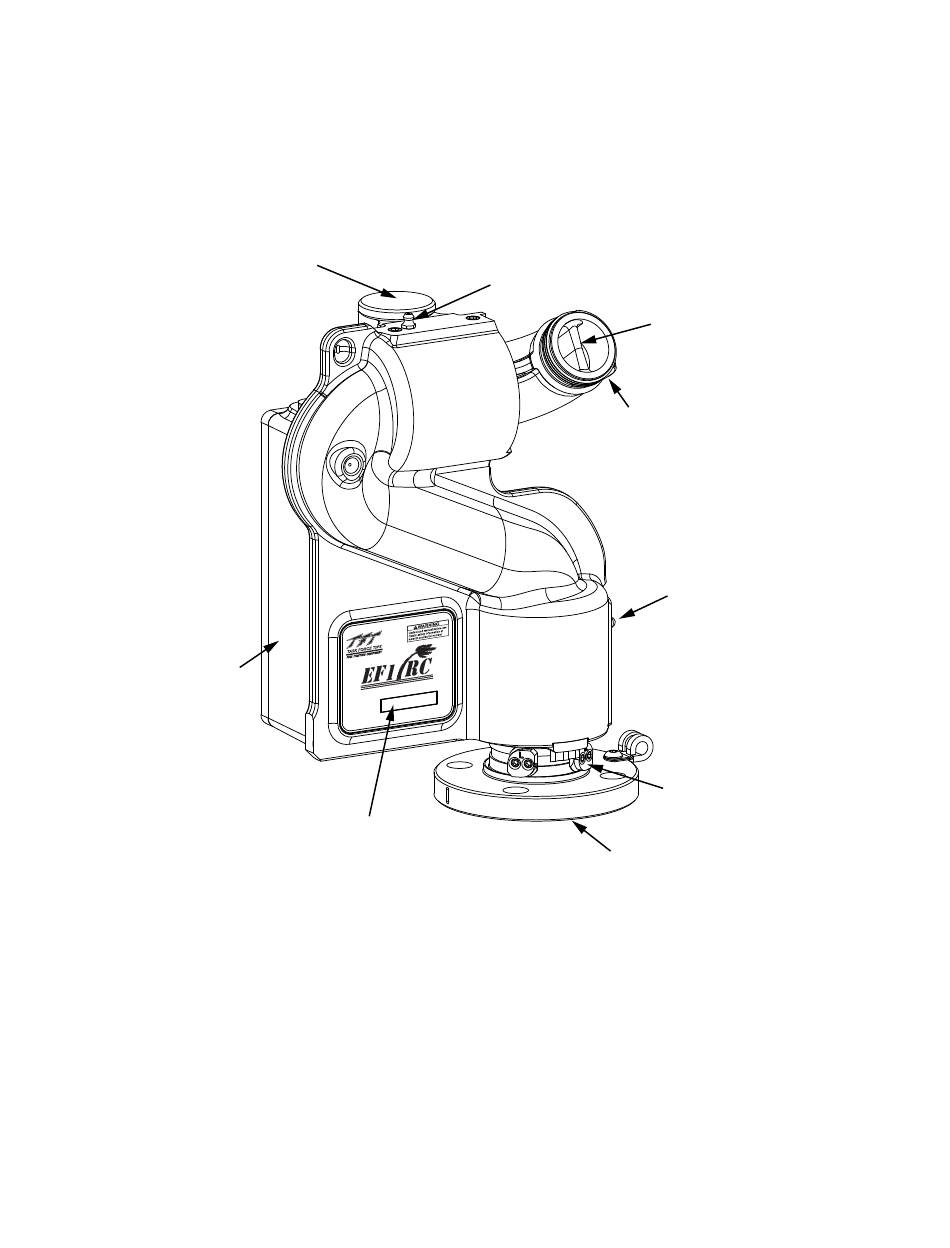

Fig. 3.1
EF1 RC Monitor Part Identification
5
ELEVATION
GREASE FITTING
TURNING VANE
OUTLET
HORIZONTAL
GREASE FITTING
HORIZONTAL ROTATION
TRAVEL STOP
SEE SECTION 4.2
INLET FLANGE
LIY-210 December 4, 2017 Rev00
