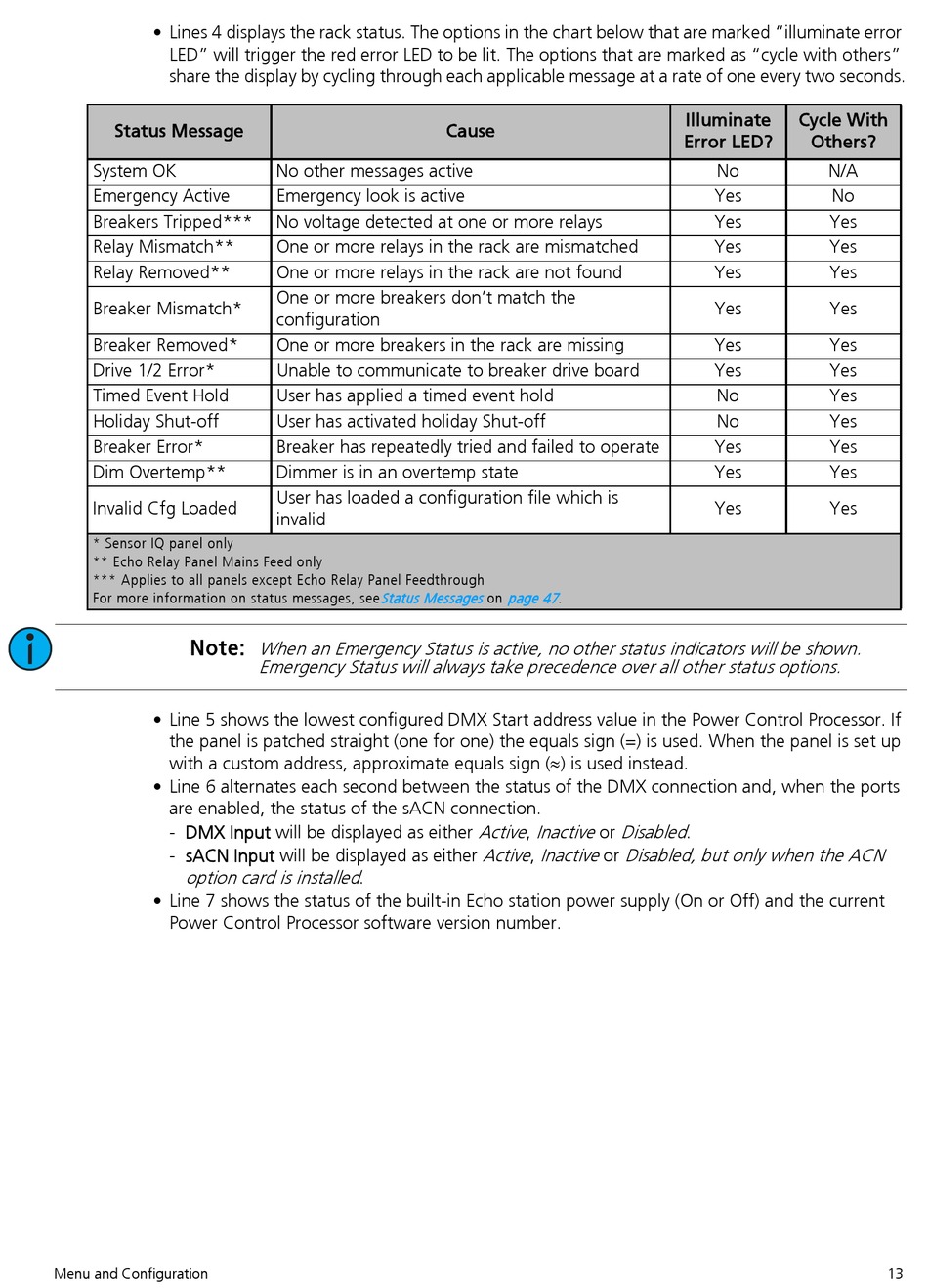

ETC Power Control Processor Configuration Manual page 19

• Lines 4 displays the rack status. The options in the chart below that are marked "illuminate error
LED" will trigger the red error LED to be lit. The options that are marked as "cycle with others"
share the display by cycling through each applicable message at a rate of one every two seconds.
Status Message
System OK
Emergency Active
Breakers Tripped***
Relay Mismatch**
Relay Removed**
Breaker Mismatch*
Breaker Removed*
Drive 1/2 Error*
Timed Event Hold
Holiday Shut-off
Breaker Error*
Dim Overtemp**
Invalid Cfg Loaded
* Sensor IQ panel only
** Echo Relay Panel Mains Feed only
*** Applies to all panels except Echo Relay Panel Feedthrough
For more information on status messages, see
Note:
• Line 5 shows the lowest configured DMX Start address value in the Power Control Processor. If
the panel is patched straight (one for one) the equals sign (=) is used. When the panel is set up
with a custom address, approximate equals sign () is used instead.
• Line 6 alternates each second between the status of the DMX connection and, when the ports
are enabled, the status of the sACN connection.
- DMX Input will be displayed as either
- sACN Input will be displayed as either
option card is installed
• Line 7 shows the status of the built-in Echo station power supply (On or Off) and the current
Power Control Processor software version number.
Menu and Configuration
No other messages active
Emergency look is active
No voltage detected at one or more relays
One or more relays in the rack are mismatched
One or more relays in the rack are not found
One or more breakers don't match the
configuration
One or more breakers in the rack are missing
Unable to communicate to breaker drive board
User has applied a timed event hold
User has activated holiday Shut-off
Breaker has repeatedly tried and failed to operate
Dimmer is in an overtemp state
User has loaded a configuration file which is
invalid
Status Messages
When an Emergency Status is active, no other status indicators will be shown.
Emergency Status will always take precedence over all other status options.
.
