Chapter 2
Menu and Configuration

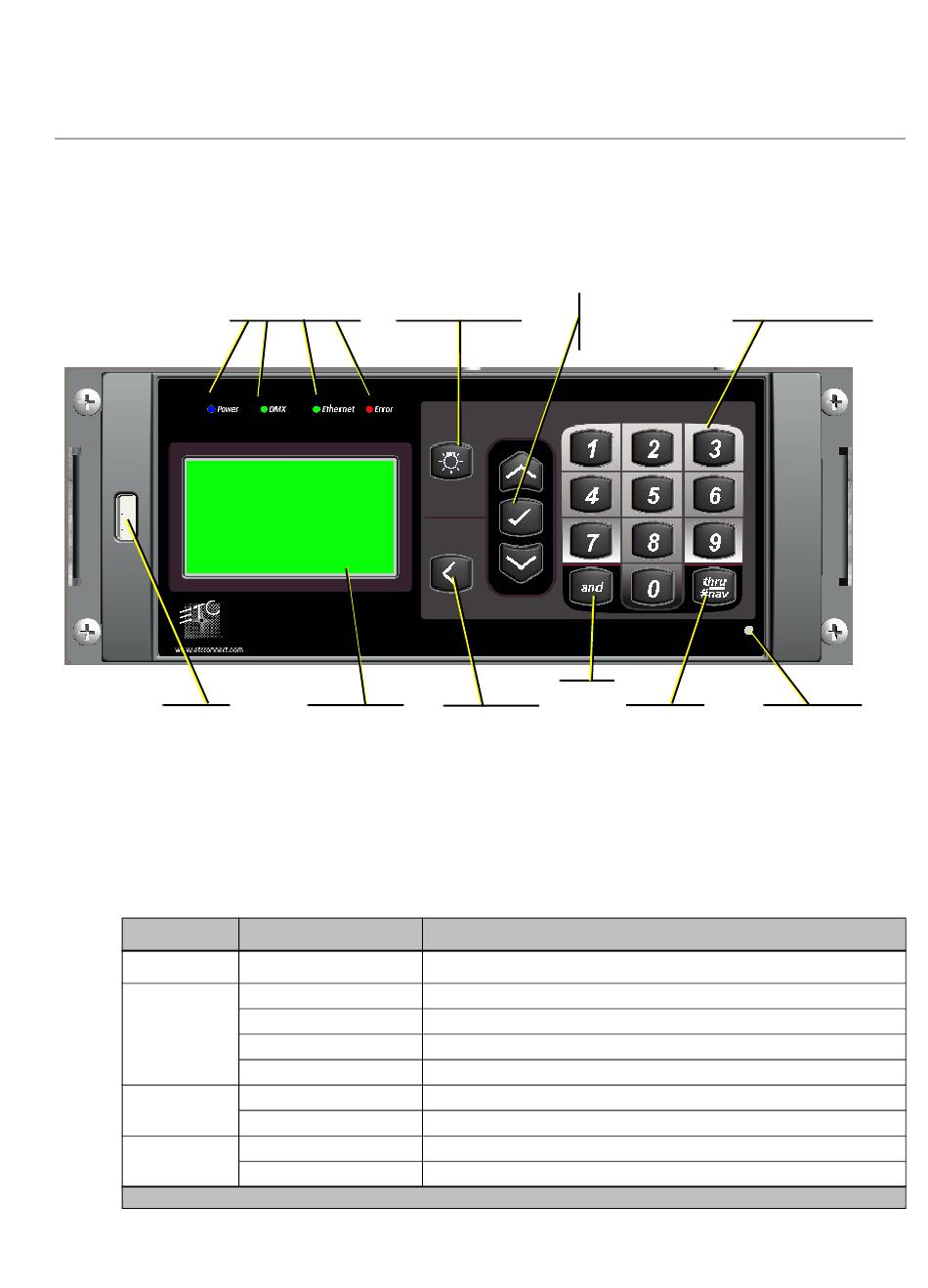

User Interface
The Power Control Processor features a simple user interface with up and down arrows for menu
navigation, a numeric keypad for direct selection, and an easy-to-read graphical display. Additionally,
a USB port is provided on the left side of the controller for storage of configurations to a flash drive.
USB port
The Power Control Processor can be configured from the user interface or from Net3 Concert. For
more information about configuration in Net3 Concert, select Help from the menu of the Net3 Concert
application. Net3 Concert is available for free download from etcconnect.com.
Status Indicators
The user interface features the following status indicators:
Indicator
Power
DMX
Ethernet
Error
See
Status Messages
Menu and Configuration
Status indicators
Control button
Display
LED Color
Blue
Green Steady
Green Flashing
Green Rapid Flashing
Off
Green Flashing
Off
Off
On
on
page 47
for descriptions of errors.
[Up] button
[Enter] button
[Down] button
[and]
button
[Back] button
Power on
DMX input enabled and DMX present
DMX input enabled but no DMX present
DMX input enabled with DMX input error
DMX input disabled
Ethernet activity
No Ethernet activity or Ethernet Interface card is not present
Not in error state
Error state
12-button keypad
[thru/#nav]
Reset switch
button
Status
11
