Stryker MedSurg Standard 3002 S3 Maintenance Manual

Bed
Hide thumbs
Table of Contents

Advertisement

Quick Links

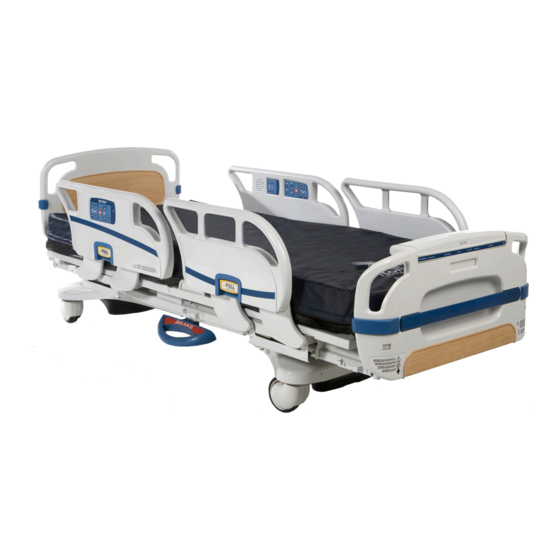

MedSurg Bed
Model 3002 S3
International 230V
Maintenance Manual
For technical assistance
USA: 1-800-327-0770 (option 2)
2009/09
3006-109-006 REV B
www.stryker.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MedSurg Standard 3002 S3 and is the answer not in the manual?

Questions and answers

Related Manuals for Stryker MedSurg Standard 3002 S3

Summary of Contents for Stryker MedSurg Standard 3002 S3

  • Page 1 MedSurg Bed Model 3002 S3 International 230V Maintenance Manual For technical assistance USA: 1-800-327-0770 (option 2) 2009/09 3006-109-006 REV B www.stryker.com...

  • Page 3: Table Of Contents

    Power Supply Replacement ............. . www.stryker.com...
  • Page 4 Fowler Drive Assembly..............3006-109-006 REV B www.stryker.com...
  • Page 5 Optional Litter Assembly, HWI with 1 Stryker Port ....... . .
  • Page 6 Recycling Passport ..............3006-109-006 REV B www.stryker.com...

  • Page 7: Introduction

    >= 35” >= 88,9 cm Length >= 84” >= 213,4 cm 80 lbs 36.3 kg The above stated mattress specifications assist in ensuring the product conforms to HBSW and IEC specifications. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 8: Environmental Conditions

    Atmospheric Pressure 700 hPa 500 hPa Stryker reserves the right to change specifications without notice. Specifications listed are approximate and may vary slightly from unit to unit or by power supply fluctuations. WARNING/CAUTION/NOTE DEFINITION The words Warning, Caution and Note carry special meanings and should be carefully reviewed.

  • Page 9: Bed Illustration

    Bed Illustration Patient Headboard Control Panel Siderail Nurse Footboard Control Panel Control Panel Steer Pedal (not shown) Siderail Release Handle Brake Pedal Footboard Caster Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 10: Symbols

    ACCESSIBLE METAL PARTS cannot become live in the event of a failure of the BASIC INSULATION. Mode of Operation: Continuous IPX4 Protection from liquid splash Dangerous Voltage Symbol Protective Earth Terminal Potential Equalization Symbol Safe Working Load Symbol Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 11: Safety Tips And Guidelines

    Use only a Stryker supplied interface cable. Use of any other cable may cause the bed to function improperly, which may result in patient or user injury.
  • Page 12 • The weight of the foley bags placed on isolated bag hooks should not exceed five pounds. • The weight of pumps placed on footboard pump holder should not exceed 45 pounds. Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 13: Ibed Awareness Option

    Awareness as the display information to troubleshoot the bed will get lost. • If the optional iBED Awareness system is being used, use of accessories that cover the center and side alert lights at the footboard are not recommended. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 14: Static Discharge Precautions

    2 and 3 of the following procedure. Do not place unprotected circuit boards on the floor. All circuit boards to be returned to Stryker Medical should be shipped in the static shielding bags the new boards were shipped in.

  • Page 15: Setup Procedures

    Grounding reliability can be achieved only when a hospital grade receptacle is used. • Use only a Stryker supplied interface cable. Use of any other cable may cause the bed to function improperly which may result in patient or user injury.

  • Page 16: Maintenance Menu Guide

    HR, FL or FR will be displayed below the message. (Refer to the Error Handling Section). • If no errors are present, then the maintenance menu will be displayed and menu items 1-9 above may be accessed where applicable. Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 17 If an error occurs during the procedure the display will show an error message, “Calibration Error,” for four seconds. WARNING Ensure there is no patient on the bed while the calibration procedure is being performed. Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 18 Down Scroll Display Selected Scroll Display Selected Is ‘New’ Setting Item Up One item. Item Down One item. Display = “Save Successful” (Hold message for 2 seconds) Return to Maintenance Menu Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 19 To Clear the Information: In the Maintenance Menu, select the Clear Scale Stats item; then press and hold the Enter/Check button. The following message will be shown on the display screen: “Clear Scale Statistics?” Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 20 In the Maintenance Menu, select the Scale Units item; then press and hold the Enter/Check button. The Scale Units Screen will display Figure 41 with the current state as the highlighted item. Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 21 Exit Menu • This feature allows the operator to exit the menu back to the previous screen. • When this menu item is selected the screen will exit to the “Status” screen. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 22: Cleaning

    Some cleaning products are corrosive in nature and may cause damage to the product if used improperly. If the products described above are used to clean Stryker patient care equipment, measures must be taken to ensure the beds are wiped with a damp cloth soaked in clean water and thoroughly dried following cleaning. Failure to properly rinse and dry the beds will leave a corrosive residue on the surface of the bed, possibly causing premature corrosion of critical components.

  • Page 23: Preventative Maintenance

    _____ Inspect footboard control labeling for signs of degradation. _____ Inspect siderail gas spring for oil leaks and replace if necessary. _____ Check fowler motor flexible mounting for damage or wear. Bed Serial Number: Completed by: _______________________________________ Date: ___________________ Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 24: Grease Points

    Apply Mobile #28 grease to the entire length of the ball screw. If dry, apply a thin film layer of Syn-Tech grease (p/n 3000-200-700) to the outside of the brake spring. Ball Screw Brake Spring Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 25: Troubleshooting Guide

    If the CPU board has been replaced, reconfigure the bed by resetting the: Bed Type, Bed Options, Serial Number, Burn-in Limits (Fowler and Height) and calibrating the scale. G. Verify bed function and return to service. Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 26 Verify the motors are running, if so, replace lift couplers. If motors are not running, check voltage at motor connection. If voltage is present at motor, check capacitors or motors. D. Verify bed function and return to service. Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 27 3 (white), of the CPU board while pressing gatch down. If voltage is not present, replace the CPU board. If 5VDC is present, check the capacitor and motor. C. Verify bed function and return to service. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 28: Ibed Awareness System Error Codes

    Scale System HL-Load Cell Patient Head Left Load Cell. Under/Over Logged Scale, Bed Exit, range. iBED Awareness HR-Load Cell Patient Head Right Load Cell. Under/Over Logged Scale, Bed Exit, range. iBED Awareness Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 29: Error Messages

    The message “Scale Calib. Err” will be displayed in the lower status screen window. Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 30 This will cause the product to stop all function and product a message screen indicating the error number and the message “Unknown Bed Type - Call Service” Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 31 CalibrationException If the scale calibration routine fails then the Message Motion message “Calibration Error” will be displayed for 4 seconds and then return to the mainte- nance menu. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 32: Quick Reference Replacement Parts List

    The parts and accessories listed on this page are all currently available for purchase. Some of the parts identified on the assembly drawing parts in this manual may not be individually available for purchase. Please call Stryker Customer Service USA: 1-800-327-0770 for availability and pricing.
  • Page 33 Paint, Touch-Up, Bottle with Brush 7000-001-321 Paint, Touch-Up, Spray Can 7000-001-318 Potentiometer, Foot End 3001-200-230 Potentiometer, Head End 3006-200-240 Power Cord 3002-700-049 Single Tube of Grease 3000-200-700 Head/Footboard “C” Bumper Adhesive 0072-002-071 Fowler Potentiometer 3001-345-807 Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 34: Service Information

    Push the brake rod through the frame until the brake pedal is clear. Remove the brake pedal. Reverse the above steps to attach the new brake pedal. Note Use Loctite 242 when reinstalling the bolts and torque the bolts to 25 foot-pounds. Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 35: Lift Motor And Capacitor Removal And Replacement

    The drive shaft on the new motor probably will have to be turned to be aligned with the coupler. Use a 7/16” open end wrench to turn the drive shaft of the motor. The procedure for lift motor and capacitor removal and replacement is the same for both ends of the bed. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 36: Lift Housing Removal And Replacement

    Using a 7/32” hex Allen socket, remove the two screws (A) holding the lift screws to the header crossbar plate. CAUTION The bed litter retracts on rollers. Secure it to prevent it from rolling while the procedure is being done. Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 37 12. Reverse the above steps to reinstall the lift housing assembly after service is completed. Note The procedure for lift housing removal and replacement is the same for both ends of the bed. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 38: Lift Potentiometer Replacement And Adjustment

    10. Reverse steps 4-8 to install the new potentiometer and potentiometer housing assembly. 11. After installing the new potentiometer, the “burn-in” procedure below must be followed. Note Be sure to maintain the potentiometer position while installing. Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 39: Lift Potentiometer "Burn-In" Procedure

    16” - 16 3/8” with the litter fully down and 29 1/4” - 29 7/8” with the litter fully up. WARNING Ensure there is no patient on the bed while the burn-in procedure is being performed. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 40: Lift Motor Isolation Plate Replacement

    Use a 7/16” open end wrench to turn the drive shaft of the motor. WARNING Ensure there is no patient on the bed while the procedure is being performed. Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 41: Lift Motor Coupler Replacement

    The motor coupler can now be removed from the lift housing. Reverse the above steps to install the new motor coupler and bushings. WARNING Ensure there is no patient on the bed while the replacement procedure is being performed. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 42: Power And Sensor Coil Cord Replacement

    Arrange the cords exactly as shown in the illustration (left in front of right). If this is not done correctly, damage to the cords will result. WARNING Ensure there is no patient on the bed while the replacement procedure is being performed. Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 43: Power And Sensor Coil Cord Replacement Illustration

    Service Information POWER AND SENSOR COIL CORD REPLACEMENT ILLUSTRATION VIEW FROM CENTER OF BED View from Center of Bed Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 44: Knee Motor Removal And Replacement

    Gatch section. Reinstall the pin, the wires for the auto contour switch, and the motion interrupt pan. 13. Test the bed for proper operation before returning it to service. WARNING Ensure there is no patient on the bed while the replacement procedure is being performed. Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 45: Fowler Motor Cam And Cam Guide Replacement

    Reverse the above steps to install the replacement cam and cam guide/micro switch assembly. Refer to page 46 “Limit Setting - Fowler Motor”. WARNING Ensure there is no patient on the bed while the replacement procedure is being performed. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 46: Limit Setting - Fowler Motor

    Ensure the head section will lower to flat (0) before returning the bed to service. Verify the head section lowers onto the rubber rests and the motor stops running. Reinstall the litter access panels removed in step 1. Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 47: Fowler Motor Removal And Replacement

    3000-200-700) to the brake spring. Reverse the above steps to install the new motor assembly and reattach all litter panels. Test the bed for proper operation before returning it to service. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 48: Fowler Motor Drive Isolator And Cpr Decoupler Removal And Replacement

    Put the springs in the isolator and install it on the shaft. Reinstall the fowler motor (refer to page 47 “Fowler Motor Removal and Replacement”). Run the Fowler up and down several times to test it before returning the bed to service. Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 49: Fowler Motor Ball Screw Assembly Replacement

    10. To prevent the ball nut from coming off the drive screw, cable tie both ends of the ball screw. 11. Pull the ball screw toward the foot of the bed and remove the head end of the ball screw assembly from the support. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 50: Head Motor Brake/Clutch Replacement

    Using the wire cutters, remove the four wire ties from the new brake/clutch. Reinstall the fowler motor (refer to page 47 “Fowler Motor Removal and Replacement”). Test the bed for proper operation before returning it to service. Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 51: Load Cell Replacement

    Be sure the load cell’s strain gauge is facing up when installing a new load cell or the weigh system will not work properly. Recalibrate the weigh system (refer to page 17 “Scale Calibration”). Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 52: Load Cell Replacement - Grease Points

    LOAD CELL REPLACEMENT - GREASE POINTS Apply Syn-Tech NS-18191-G grease (p/n 3000-200-700) to rollers on the Lift Header Assembly as shown in figure below. Rollers Rollers Litter Assembly (Reference p/n: 3006-375-197) Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 53: Power Supply Replacement

    Lift Potentiometer “Burn-In” procedures on page c. If your Bed is equipped with a Scale System, execute the Scale Calibration procedures on page 10. Test bed operations before returning the bed to service. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 54: Soft Config. Procedures

    S3.) Hit “Enter” on the footboard panel to confirm the bed type; hit “Exit” to cancel the operation.  = Accept X = Cancel Figure S-3 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 55 OFF, Zoom or Battery Backup. Scroll up or down to select one of the three available items and hit Zoom “Enter” on the footboard panel. Batt. = Save  X = Cancel Figure S-6 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 56 Figure S-9 will be displayed. You can set the Scale option to ON or OFF. Hit “Enter” on the footboard panel to make your selection or hit “Exit” to O FF cancel. = Save  X = Cancel Figure S-9 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 57 Bed Exit Option to OFF, Multi Zone or Single Zone. Hit “Enter” on the footboard panel to make your selection or “Exit” to cancel. M ult i Zo ne Single Zone = Save X = Cancel  Figure S-12 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 58 Awareness will then automatically be set to OFF as well. It cannot be set to ON unless either kind of Bed Exit was previously chosen.  = Save X = Cancel Figure S-15 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 59 Note that the user can see the state of the items Bed Type [S3] previously set. Bed Options [SET] Se r i a l Nu m b e r Clear All Figure S-18 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 60 Figure S-20 Edit SN 21. If the Edit SN item is selected, the screen in Figure S-21 will be displayed to the user. 080115000 = Save  X = Cancel Figure S-21 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 61 Current SN item, the screen in Figure S-26 will be displayed. The entered serial number will be displayed until the user hits the “Exit” button on the footboard panel. 080115000 Figure S-26 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 62 Bed Motion Lock. The screen will display the message “Hold to Set Height Limits.” Once the lock button is held for two seconds, the message “Release Button” will Figure S-29 flash. Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 63 I.E., the user must choose the Bed Type, set all options to either ON, OFF or some variety of the option, enter the serial number and burn-in the height limits in order to exit the Bed Config. menu on a power cycle. Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 64 • The Bed Config. menu will then only display Bed Typ e the Bed Type menu item as shown in Figure S-35 and the user can now re-enter all the bed information starting with the Bed Type. Figure S-35 Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 65: Optional Smart Tv Interface "Burn-In" Procedure

    TV Config. 2 Zenith 1 TV Config. 3 Zenith 2 TV Config. 4 Philips TV Config. 5 Magnavox TV Config. 6 Traditional Traditional Traditional Plus Traditional Plus Auto-Configure Auto-Config. Auto-Configure DV Auto-Config. DV Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 66: Fowler Potentiometer Replacement

    “Burn-In” menu. The menu item should now read “Fowler Limits [SET]”. Unplug the bed and plug back in to return to normal operating mode. WARNING Ensure there is no patient on the bed while the burn-in procedure is being performed. Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 67: Head And Foot Siderail Cover Removal

    Remove the cables from the siderail. Make note of the proper location for the cables. Reverse the above steps to reattach the cover. CAUTION Do not snag the cables when installing the siderail cover. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 68: Head Siderail Hoop Replacement

    11. Lift the head siderail hoop straight up and out. 12. Remove the inner siderail boards and reinstall on the new head siderail hoop. 13. Reverse steps 2-11 to install a new siderail hoop. Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 69: Footboard Module Removal

    Lift the module out and replace. Reverse the above steps to attach the replacement door and/or hinge. Note Screw (B) is a machine screw and must be reinstalled in the proper hole. Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 70: Footboard Interface Plug Replacement

    Be sure to install the plug with the flat edge (B) at the top left, as shown in the illustration, or the footboard interface plug will not mate properly with the bed. Damage to the plug or the footboard could result. Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 71: Bed Circuit Boards

    Bed Circuit Boards CPU BOARD - 3006-307-900 Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 72: Cpu Board - 3006-307-900 (Continued)

    Head Lift Up 230VAC w/Switch 0VAC w/o Switch Pin 3 Black Pin 1 Red Foot Lift Down 230VAC w/Switch 0VAC w/o Switch Pin 6 White Pin 1 Red Foot Lift Up 230VAC w/Switch Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 73: Software Configuration

    Locate switch bank 4, labeled SB4 on the CPU board (see above). Move switch one to the “ON” position (see below). To verify the switch settings, check what the footboard LCD displays. General Setting, S3 Bed Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 74: Power Supply - 0059-157-000

    Pin 2 Pin 4 or 5 Pin 3 Pin 4 or 5 Pin 4 Pin 4 or 5 Pin 5 Pin 4 or 5 -12V Pin 6 Pin 4 or 5 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 75 Notes Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 76: Ibed Enhanced Nurse Call Option, 37-Pin Plugover Board - 3006-303-900

    (Select N.O. N.C. or OFF ) N.O. N.C. (Check Here) (Check Here) (Check Here) Low Height Alert (SB2): SW7, SW8 (Select N.O. N.C. or OFF ) N.O. N.O. (Check Here) (Check Here) (Check Here) Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 77 (Check Here) Not Used (SB1): SW7, SW8 ( Do Not Select ) I Bed Alert (SB2): SW1, SW2 (Select N.O. N.C. or N.C. N.O. OFF ) (Check Here) (Check Here) (Check Here) Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 78: Head Wall Output Configuration

    Head Wall Output Configuration Stryker Pendant Port 37-Pin Connector Pin 1 iBed Awareness Status On Pin 2 Read Light Pin 3 Room Light Pin 4 Speaker High Pin 5 Potentiometer Wiper Pin 6 Bed Exit Status On Pin 7 Nurse Call Interlock...

  • Page 79: Assembly Drawings

    Bed Assembly, Standard Bed For Reference Only: 3006-075-102 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 80 Bed Assembly, Standard Bed Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 81 Bed Assembly, Standard Bed Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 82 Bed Assembly, Standard Bed Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 83 Bed Assembly, Standard Bed Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 84 FE Siderail Assembly, Left (pg. 177) 3006-400-400 FE Siderail Assembly, Right (pg. 177) 3006-300-033 Mattress Retainer 0025-120-000 Rivet 3006-300-275 Shield, Right 3006-300-276 Shield, Left 0011-180-000 Flat Washer 0016-028-000 Fiberlock Hex Nut 0059-126-000 Push-Mount Wire Clip Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 85: Bed Assembly, Ibed Awareness Option

    Bed Assembly, iBed Awareness Option (Scale, Bed Exit, Zone Control) For Reference Only: 3006-500-115 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 86 Foot End Siderail Assembly, LH 3006-400-405 Foot End Siderail Assembly, RH 3006-500-100 Footboard Assembly 3002-317-003 Scale/Bed Exit Option Assembly 3006-326-501 Load Cell Bed Lift Header Assembly 1 3006-307-501 Load Cell Bed Lift Header Assembly 1 Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 87: Base Assembly, Standard Bed

    Base Assembly, Standard Bed For Reference Only: 3006-275-003 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 88 Base Assembly, Standard Bed Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 89 Base Assembly, Standard Bed Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 90 Base Assembly, Standard Bed Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 91 Base Assembly, Standard Bed Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 92 Base Assembly, Standard Bed Typical Both Ends Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 93 Base Assembly, Standard Bed Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 94 Swivel Lock Caster Ass’y (pg. 106) 3001-200-317 Brake Cam Shaft Bushing 3001-200-334 Spring 3001-200-342 Steer Lock Cable 3006-200-381 Steer Swivel Lever 3006-201-371 Steer Pedal Arm Assembly 3002-200-302 Brake Ratchet Link Assembly Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 95 Caster Cover, LH 3006-200-139 Caster Cover, RH 3002-200-311 Brake Shaft 3002-200-313 Brake Cam Spacer 3006-200-312 Brake Cam 3006-200-374 Swivel Lever 3006-200-376 Swivel Lock Activation Spring 3006-200-379 SWivel Lock Return Spring, LH Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 96: Brake Plate Assembly

    Brake Plate Assembly Item Part No. Part Name Qty. 0011-193-000 Heavy Flat Washer 3006-200-352 Brake Plate Spring 3006-200-354 Brake Plate, Fork Assembly 3006-200-356 Gill Brake Plate, Body 3006-200-362 Hex Head Cap Screw, LH Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 97: Lift Assembly (Head And Foot End)

    Foot End Pot Assembly 3006-275-275 Lift Common Components Ass’y, HE (pg. 98) 3001-200-815 Lift Sensor Coil Cord, FE 3006-200-815 Lift Sensor Coil Cord, HE 3006-275-275 Lift Common Components Ass’y, FE (` 98) Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 98: Lift Assembly

    Lift Assembly For Reference Only: 3006-275-275 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 99 Lift Assembly Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 100 Lift Assembly 0004-245-000 (Holds Bellow Brackets) Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 101 Output Gear 3000-300-455 Isolation Bushing 3001-200-214 Isolation Plate Assembly (pg. 102) 3001-200-228 Mounting Standoff 3001-200-864 Cable Power Coil 3001-300-019 Isolation Sleeve 3002-200-052 Bellows Bracket 3002-200-235 Idler Manual Override Shaft 3221-016-603 Lift Motor Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 102: Motor Isolation Plate Assembly

    Motor Isolation Plate Assembly For Reference Only: 3001-200-214 Item Part No. Part Name Qty. 3001-200-213 Isolation Plate 3000-300-442 Grommet Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 103: Brake Shaft Assembly, Standard Bed

    Brake Shaft Assembly, Standard Bed For Reference Only: 3006-200-340 Item Part No. Part Name Qty. 0004-270-000 Socket Head Cap Screw 3006-200-314 Brake Shaft 3006-200-325 Brake Pedal Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 104: Brake Crank Assembly

    Brake Crank Assembly For Reference Only: 3006-200-330 Item Part No. Part Name Qty. 0014-004-000 Washer 0025-146-000 Rivet 3001-200-311 Brake Link 3001-200-312 Dog Leg Brake Link 3002-200-309 Brake Crank 3006-200-302 Brake Shaft Crank Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 105: Brake Bar Assembly

    Part No. Part Name Qty. 0005-018-000 Carriage Bolt 0016-035-000 Nylock Hex Nut 3000-200-318 Guide Pin 3000-200-310 Brake Bar Return Spring 3003-200-324 Brake Bar Bumper 3000-200-323 Brake Bar 3006-200-327 Toothed Brake Ring Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 106: Swivel Lock Caster Assembly - 3006-200-060

    Swivel Lock Caster Assembly - 3006-200-060 Item Part No. Part Name Qty. 0003-342-000 Hex Head Cap Screw 0016-060-000 Lock Nut 3006-200-059 Caster Horn with Bearing and Swivel 1 5000-002-010 Molded Wheel Assembly (pg. 108) Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 107: Steer Swivel Caster Assembly - 3006-200-065

    Steer Swivel Caster Assembly - 3006-200-065 Item Part No. Part Name Qty. 0003-342-000 Hex Head Cap Screw 0016-060-000 Lock Nut 3006-200-063 Steer Caster Horn with Bearing and Steer Swivel, White 5000-002-010 Molded Wheel Assembly (pg. 108) Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 108: 6" Molded Wheel Assembly - 5000-002-010

    6” Molded Wheel Assembly - 5000-002-010 Item Part No. Part Name Qty. 0081-226-000 Bearing 0715-001-255 Wheel Bushing 5000-002-020 Molded Wheel 6060-002-046 Bearing Spacer Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 109: Bottom Cover - 3001-200-022

    Bottom Cover - 3001-200-022 Item Part No. Part Name Qty. 3002-001-100 Bottom Cover 3000-000-039 Grommet Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 110: Litter Assembly, Standard Components

    Litter Assembly, Standard Components For Reference Only: 3006-300-002 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 111 Litter Assembly, Standard Components Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 112 Litter Assembly, Standard Components Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 113 Litter Assembly, Standard Components Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 114 3006-088-820 Caution Label 3001-300-008 Bumper 3006-301-097 CPU Cover Assembly 3001-300-099 Fowler Modified Bushing 3006-300-170 Thigh Litter Assembly 3002-300-870 8” Litter Ground Jumper 3006-300-135 Seat Weldment Skin 3006-090-100 500 Lb. Maximum Label Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 115: Litter Assembly, Standard Bed

    Litter Assembly, Standard Bed For Reference Only: 3006−375−002 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 116 Litter Assembly, Standard Bed Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 117 Litter Assembly, Standard Bed Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 118 Litter Assembly, Standard Bed Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 119 Litter Assembly, Standard Bed Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 120 Litter Assembly, Standard Bed Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 121 Foot Cover Assembly 3006-300-190 Foot Litter Weldment 3006-300-349 3001-345-807 Fowler Pot Cable 3004-345-450 Pot Linkage Assembly 3001-400-558 Spacer 0003-226-000 Hex Head Washer Screw 3000-300-113 8” Cable Tie 3001-345-809 Fowler Pot Extension Cable Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 122: Foot Prop Assembly, Standard Length Bed - 3003-034-010

    Foot Prop Assembly, Standard Length Bed - 3003-034-010 Item Part No. Part Name Qty. 0025-177-000 Dome Head Rivet 0052-754-000 Nyliner Bearing 3006-300-160 Foot Prop Rod Weldment 3006-300-186 Prop Rod Retainer Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 123: Litter Cpu Cover Assembly - 3001-300-097

    Qty. 3001-300-098 CPU Cover 7900-001-291 Foam Tape (21.38”) 7900-001-291 Foam Tape (12.25”) 7900-001-291 Foam Tape (5.75”) 0988-002-708 Service Caution Label 7900-001-291 Foam Tape (11.75”) 7900-001-291 Foam Tape (4.25”) 3001-300-663 Velcro Strip Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 124: Foot Cover Assembly - 3003-300-042

    Part No. Part Name Qty. 7900-001-291 Foam Tape (5.63”) 7900-001-291 Foam Tape (8.88”) 7900-001-291 Foam Tape (1”) 3003-300-043 Foot Cover (Standard) 3001-342-042 Foot Cover (8” Shorter Bed) 0988-002-708 Service Caution Label Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 125: Electrical Litter Assembly, Standard Bed

    Electrical Litter Assembly, Standard Bed For Reference Only: 3006-375-895 Assemble connector to frame in the orientation shown. Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 126 Electrical Litter Assembly, Standard Bed Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 127 Electrical Litter Assembly, Standard Bed Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 128 Electrical Litter Assembly, Standard Bed Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 129 Electrical Litter Assembly, Standard Bed Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 130 Siderail Extension Cable 3001-300-865 Motion Interrupt Lift Sensor Cable 0030-048-000 Strain Relief 0030-047-000 Strain Relief 3000-300-113 Cable Tie 2011-001-104 Danger Label 1550-090-001 Hospital Grade Plug Label 3002-300-874 LItter Ground Jumper 0013-038-000 Washer Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 131 Strain Relief Bushing 3006-300-601 Foley Bag Hook Label 3003-300-803 CPU to Siderail Sensor Cable 0059-400-000 8 AMP Circuit Breaker 3006-275-003 Base Assembly (pg. 87) 3006-375-625 230V Specification Label 3221-300-897 230V Gatch Power Cable Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 132: Mechanical Litter Assembly

    Mechanical Litter Assembly For Reference Only: 3006-375-197 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 133 Mechanical Litter Assembly Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 134 Mechanical Litter Assembly Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 135 Mechanical Litter Assembly Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 136 Fowler Limit Switch Assembly 3006-375-550 Fowler Drive Assembly 3006-300-204 Moving Frame Weldment 3006-300-303 Stationary Frame Assembly 7900-001-291 1” Vibration Tape 3002-300-870 8” Litter Ground Jumper 3006-301-422 Motor Shield 0011-159-000 Steel Washer Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 137: Lift Header Assembly - No Load Cells

    “Imitation” Load Cell 3001-300-530 Lift Header 3001-300-530 Lift Header 3002-300-871 Ground Jumper 3002-300-871 Ground Jumper 3000-300-353 Roller Cap 3002-326-010 Iso. Foley Bag Ass’y, Lt. 3002-326-020 Iso. Foley Bag Ass’y, Rt. 3000-300-353 Roller Cap Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 138: Lift Header Assembly With Load Cells

    Load Cell 3001-300-530 Lift Header 3001-300-530 Lift Header 3002-300-871 Ground Jumper 3002-300-871 Ground Jumper 3000-300-353 Roller Cap 3002-326-010 Iso. Foley Bag Ass’y, Lt 3002-326-020 Iso. Foley Bag Ass’y, Rt. 3000-300-353 Roller Cap Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 139: Gatch Motor Assembly - 3006-375-420

    Gatch Motor Mounting Plate 3001-300-225 Motor Mount Bracket 0052-817-000 Grommet 3002-300-421 Gatch Limit Bracket 3000-300-041 Micro Switch 0002-107-000 Phillips Round Head Screw 0016-069-000 Twin-Type Fastener 3221-016-602 Gatch Motor 3000-300-114 Wire Tie (not shown) Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 140: Fowler Drive Assembly

    Fowler Drive Assembly For Reference Only: 3006-375-550 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 141 3006-375-705 Fowler Actuator Assembly 0014-083-000 Flat Washer 3000-300-457 CPR Ball Screw 3006-301-496 Fowler Link 3002-300-493 Fowler Link Bracket 0025-092-000 Rivet 3006-300-121 Motor Mount Isolator 3006-300-122 Isolator Plate 3006-300-123 Mounting Plate Tabs Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 142: Fowler Actuator Assembly - 3006-375-705

    Thrust Needle Roller Bearing 3000-200-224 Idler Gear Thrust Washer 3001-300-569 Brake Cup 3001-300-552 CPR Brake Disc 3001-300-551 CPR Spring Cup 3001-300-563 CPR Brake Spring 3001-300-570 CPR Spring Cup 4712-116-602 Fowler Motor Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 143: Fowler Brake Kit Assembly - 3001-300-775

    3001-300-551 CPR Spring Cup 3001-300-563 CPR Brake Spring 3001-300-570 CPR Spring Cup 0003-064-000 Hex Head Cap Screw 3000-300-776 Flat Washer 0011-193-000 Heavy Flat Washer 0016-035-000 Nylock Nut 3000-300-113 8” Wire Tie Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 144: Fowler Limit Switch Assembly - 3002-343-035

    Part No. Part Name Qty. 0002-003-000 Round Head Screw 0016-069-000 Twin Type Fastener 0016-129-000 Hex Washer Head Screw 3000-300-036 Fowler Cam Card 3000-300-041 Micro Switch 3000-300-044 Cam Guide 3002-300-038 Link Wire Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 145 Notes Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 146: Night Light Assembly - 3006-410-020

    LH bottom side of moving frame (3006-300-204) RH bottom side of moving frame (3006-300-204) (No toggle switch required on RH side of bed.) Orient switch so that the “O” is towards the head end of the bed. Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 147 0003-224-000 Hex Washer Head Screw 0059-191-000 Toggle Switch 3000-300-113 8” Cable Tie 3002-310-018 Night Light Cover 3002-310-010 LED Lens 3002-310-025 Retaining Spacer 3006-310-601 Night Light Label 3002-036-801 Night Light Wiring Harness Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 148: Optional Scale/Bed Exit Assembly

    Optional Scale/Bed Exit Assembly For Reference Only: 3002-317-003 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 149 Foot End Load Cell Cable Installation (Typical Both Sides of the Bed) Item Part No. Part Name Qty. 3002-317-835 FE Load Cell Cable 3002-317-834 HE Load Cell Cable 0007-053-000 Truss Head Torx 3000-300-113 Cable Tie Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 150 Notes Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 151: Optional Litter Assembly, Nurse Call And Communication

    For Reference Only: 3006-303-052 Item Part No. Part Name Qty. 0012-046-000 Lock Washer 0059-710-000 Static Plug 3000-300-113 Cable Tie 3001-300-007 Screwjack 3001-303-821 Headwall Interface Cable 3006-303-045 Battery Enclosure Assembly 7900-001-291 Foam Tape Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 152: Optional Litter Assembly, Hwi With 1 Stryker Port

    Optional Litter Assembly, HWI with 1 Stryker Port For Reference Only: 3006-314-012 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 153 Optional Litter Assembly, HWI with 1 Stryker Port Optional Litter Assembly, HWI with 1 Stryker Port - 3006-314-012 (Reference Only) Item Part No. Part Name Qty. 0003-224-000 Hex Washer Head Screw 0007-053-000 Truss Head Screw 0012-046-000 Lock Washer 0059-710-000 Static Plug...

  • Page 154: Optional Ibed Enhanced Nurse Call, 37-Pin Plugover Assembly

    Optional iBed Enhanced Nurse Call, 37-Pin Plugover Assembly (Applies to beds with iBed Awareness option only) For Reference Only: 3006-303-010 Rev E 3006-307-900 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 155 Cable Tie used to attach 3006-303-800 to 3001-300-877. Item Part No. Part Name Qty. 3006-303-900 37-Pin Plugover Board 3006-303-800 iBed Awareness Plugover Board Cable 3001-300-007 Jackscrew 3000-300-113 8” Cable Tie 0059-144-000 Split Ferrite Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 156: Battery Enclosure Assembly

    For Reference Only: 3006-303-045 Rev A Item Part No. Part Name Qty. 0029-008-000 Dual Lock 0029-010-000 Dual Lock 3000-303-871 Battery - 9V 3001-303-811 Battery Cable 3006-304-012 Battery Enclosure 7900-001-291 Foam Tape (1.75”) Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 157: Head End Siderail Assembly

    Head End Siderail Assembly For Reference Only: 3006-400-105 (LH) 3006-400-205 (RH) (LEFT SIDERAIL SHOWN) Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 158 Head End Siderail Assembly Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 159 Head End Siderail Assembly Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 160 Head End Siderail Assembly Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 161 Head End Siderail Assembly Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 162 Head End Siderail Assembly Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 163 Head End Siderail Assembly LEFT SIDERAIL (3006-400-105) RIGHT SIDERAIL (3006-400-205) Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 164 BB 3006-400-552 Spring Arm, A BC 3006-400-553 Spring Arm, B BD 3006-400-554 Spring Arm Stop 3006-400-557 Spring Arm Cap 3006-400-560 Gas Spring BG 3006-400-561 Spring Plunger Clip BH 3006-400-570 Release Handle Assembly Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 165 Latch Return Spring 3006-400-551 Spring Plunger BB 3006-400-552 Spring Arm, A BC 3006-400-553 Spring Arm, B BD 3006-400-554 Spring Arm Stop 3006-400-557 Spring Arm Cap 3006-400-560 Gas Spring BG 3006-400-561 Spring Plunger Clip Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 166: Head End Siderail Assembly, Standard Options

    Head End Siderail Assembly, Standard Options For Reference Only: • 3006-999-005 • 3006-999-006 • 3006-999-013 • 3006-999-016 • 3006-999-030 • 3006-999-031 • 3006-999-403 • 3006-999-405 Note: See Drawing Part Lists on pages 167 - 169 Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 167 Speaker with Cable 3006-430-133 Smart TV Blank Label 3006-400-633 NC, G/F, CC Label, Outer Left 3006-400-643 NC, G/F, CC Label, Outer Right 0023-088-000 3/8” Tapping Screw Outer Right NC, G/F, CC Label Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 168 Speaker with Cable 3006-430-133 Smart TV Blank Label 3006-400-633 NC, G/F, CC Label, Outer Left 3006-400-643 NC, G/F, CC Label, Outer Right Outer Right NC, G/F, CC Label 0023-088-000 3/8” Tapping Screw Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 169 5/16” Tapping Screw 3001-402-803 PCB Cable, RIght 5000-400-930 Siderail Lumbar Board, Left 1 5000-400-920 Siderail Lumbar Board, Right 1 3003-039-800 Smart TV Auto Detect Ass’y 1 Outer Right NC, G/F Label Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 170: Head End Siderail Assembly, Outer Panel

    Part Name Qty. 0023-112-000 Pan Head High/Low Tapping Screw 8 3001-400-522 Filler Cap 3001-400-953 Switch Cap 3006-400-127 Head End Siderail Cover, Left 3006-400-227 Head End Siderail Cover, Right 3006-400-910 Outer Siderail Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 171: Head End Siderail Assembly, Inner Panel

    Part No. Part Name Qty. 0023-088-000 Pan Head High/Low Tapping Screw 8 3001-400-522 Filler Cap 3001-400-953 Switch Cap 3006-400-115 Head End Toprail, Left 3006-400-215 Head End Toprail, Right 3006-400-930 Main Siderail Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 172 Release Handle Assembly Item Part No. Part Name Qty. 3006-400-565 Release Handle 3006-400-657 Siderail Release Label Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 173: Siderail Ass'y, Ibed Awareness Option, He, Left - 3006-400-100

    Siderail Ass’y, iBED Awareness Option, HE, Left - 3006-400-100 REF: 3006-400-105 Siderail Standard Components Item Part No. Part Name Qty. 0023-123-000 Hex Washer Head Screw 0058-105-000 P-Clamp 3006-400-120 Siderail Switch Assembly, Head Left (pg. 175) Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 174: Siderail Ass'y, Ibed Awareness Option, He, Right - 3006-400-200

    Siderail Ass’y, iBED Awareness Option, HE, Right - 3006-400-200 REF: 3006-400-205 Siderail Standard Components Item Part No. Part Name Qty. 0023-123-000 Hex Washer Head Screw 0058-105-000 P-Clamp 3006-400-220 Siderail Switch Assembly, Head Right (pg. 175) Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 175: Switch Assembly, Ibed Awareness Option, Head End

    3006-400-120 (Left) / 3006-400-220 (Right) LEFT SHOWN Item Part No. Part Name Qty. 0023-294-000 High-Low Tapping Screw 3006-400-558 Switch Holder, Left 3006-400-559 Switch Holder, Right 3006-400-802 Head End Siderail Switch Cable Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 176 Notes Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 177: Foot End Siderail Assembly

    Foot End Siderail Assembly For Reference Only: 3006-400-300 (LH) 3006-400-400 (RH) (LEFT SIDERAIL SHOWN) Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 178 Foot End Siderail Assembly Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 179 Foot End Siderail Assembly Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 180 Foot End Siderail Assembly Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 181 Foot End Siderail Assembly Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 182 Foot End Siderail Assembly Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 183 Release Handle Assembly BB 3006-400-566 Handle Retainer Plate BC 3006-400-567 Extension Spring BD 3006-400-568 Bearing 3006-400-569 Glide Rod Restraint 3006-400-581 Machined Support Plate BG 3006-400-584 Speed Nut BH 3006-400-628 Inner Arm Cover Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 184 Release Handle Assembly BB 3006-400-566 Retainer Plate Handle BC 3006-400-567 Extension Spring BD 3006-400-568 Bearing 3006-400-569 Glide Rod Restraint 3006-400-581 Machined Support Plate BG 3006-400-584 Speed Nut BH 3006-400-618 Inner Arm Cover Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 185: Siderail Ass'y, Ibed Awareness Option, Fe Left - 3006-400-305

    Siderail Ass’y, iBED Awareness Option, FE Left - 3006-400-305 REF: 3006-400-300 Siderail Standard Components Item Part No. Part Name Qty. 0023-123-000 Hex Washer Head Screw 0058-105-000 P-Clamp 3006-400-315 Siderail Switch Assembly, FE, Left (pg. 187) Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 186: Siderail Ass'y, Ibed Awareness Option, Fe, Right - 3006-400-405

    Siderail Ass’y, iBED Awareness Option, FE, Right - 3006-400-405 REF: 3006-400-400 Siderail Standard Components Item Part No. Part Name Qty. 0023-123-000 Hex Washer Head Screw 0058-105-000 P-Clamp 3006-400-415 Siderail Switch Assembly, FE, Right (pg. 187) Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 187: Switch Assembly, Ibed Awareness Option, Foot End

    3006-400-315 (Left) / 3006-400-415 (Right) LEFT SHOWN Item Part No. Part Name Qty. 0023-294-000 High-Low Tapping Screw 3006-400-558 Switch Holder, Left 3006-400-559 Switch Holder, Right 3006-400-801 Head End Siderail Switch Cable Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 188: Optional Pendant Assembly

    Optional Pendant Assembly Combination Pendant Motion/ Combination Pendant Communication Communication - 3001-315-012 Only - 3001-315-016 Combination Pendant Motion Only - 3001-315-014 Combination Pendant Motion/ Nurse Call - 3001-315-018 Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 189: Footboard Assembly, Standard

    3006-050-448 (Honey Maple) 3006-050-449 (Select Cherry) 3006-050-450 (Sand White - Standard) 3006-050-900 (Custom White) Custom Option Only Label graphics are identified by unique number (i.e. ARTWORK-00001, ARTWORK-00254) (Part of Custom Label Kit 3006-900-000). Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 190 3006-500-030 Footboard Connector Assembly 3006-500-050 Guide Tube - Rectangular Assembly 1 3006-500-055 Guide Tube - Square Assembly 3006-508-010 Oxygen Warning Label 3006-508-011 Footboard Screw Cover Label 3006-508-012 Footboard Screw Cover Label Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 191: Footboard Pump Rack Assembly

    Footboard Pump Rack Assembly For Reference Only: 3006-500-010 Item Part No. Part Name Qty. 0004-459-000 Button Head Cap Screw 3006-500-013 Footboard 3006-570-023 Footboard Pump Holder Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 192: Footboard Module Assembly

    Footboard Lid 3006-500-028 Bushing, Right 3006-500-029 PCB Shaft Damper Weldment 3006-500-031 PCB Mount Support 3006-500-032 Bushing, Left 3006-508-013 Lid, Hospital Staff Use Label 3006-508-014 Lid, Logo Label 3006-553-011 Footboard PCB Assembly Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 193: Footboard Assembly, No Options - 3006-500-104

    Footboard Assembly, No Options - 3006-500-104 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 194 Pan Head Screw, High/Low 3001-400-522 Filler Cap 3006-500-007 Center Lens Assembly 3006-500-081 Non-LBS Lens, Blank Inserts, RH 3006-500-082 Non-LBS Lens, Blank Inserts, LH 3006-508-004 Footboard Label, No Scale, No Bed Exit Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 195: Footboard Assembly, Bed Exit Option - 3006-500-105

    Footboard Assembly, Bed Exit Option - 3006-500-105 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 196 Pan Head Screw, High/Low 3001-400-522 Filler cap 3006-500-007 Center Lens Assembly 3006-500-081 Non-LBS Lens Blank Insert, RH 3006-500-082 Non-LBS Lens Blank Insert, LH 3006-508-005 Footboard Label 3001-400-953 Switch Cap 3006-508-109 Bed Exit Label Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 197: Footboard Assembly, Bed Exit/Scale Option - 3006-500-107

    Footboard Assembly, Bed Exit/Scale Option - 3006-500-107 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 198 Hex Washer Head Tapping Screw, 3001-400-522 Filler cap 3006-500-007 Center Lens Assembly 3006-500-081 Non-LBS Lens Blank Insert, RH 3006-500-082 Non-LBS Lens Blank Insert, LH 3006-508-007 Footboard Label 3001-400-953 Switch Cap 3006-508-109 Bed Exit Label Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 199: Footboard Assembly, Bed Exit/Zone Control Option - 3006-500-106

    Footboard Assembly, Bed Exit/Zone Control Option - 3006-500-106 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 200 Pan Head Screw, High/Low 3001-400-522 Filler Cap 3006-500-007 Center Lens Assembly 3006-500-081 Non-LBS Lens Blank Insert, RH 3006-500-082 Non-LBS Lens Blank Insert, LH 3006-508-006 Footboard Label 3001-400-953 Switch Cap 3006-508-106 Bed Exit Label Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 201: Footboard Assembly, Bed Exit/Scale/Zone Option - 3006-500-109

    Footboard Assembly, Bed Exit/Scale/Zone Option - 3006-500-109 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 202 Filler cap 3006-500-007 Center Lens Assembly 3006-500-081 Non-LBS Lens Blank Insert, RH 3006-500-082 Non-LBS Lens Blank Insert, LH 3006-508-009 Footboard Label 3001-400-953 Switch Cap 3006-508-106 Bed Exit Label 3006-508-107 Scale Label Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 203: Footboard Assembly, Ibed Awareness Option - 3006-500-100

    Footboard Assembly, iBED Awareness Option - 3006-500-100 (with Scale, Bed Exit and Zone Control) Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 204 Footboard Cable, Left Lens 3006-508-002 Bed Exit with Zone Control Label 3006-508-107 Scale Label 3006-508-108 Awareness Label 3006-508-106 Bed Exit with Zone Control Label 0023-319-000 Hex Washer Head Tapping Screw 3006-400-208 Cable Restraint Label Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 205: Head Board Assembly - 3006-600-010

    3006-060-443 (Port Maple) (i.e. ARTWORK-00001, ARTWORK-00254) 3006-060-446 (Wild Cherry) (Part of Custom Label Kit 3006-900-000). 3006-060-447 (Cayenne Maple) 3006-060-448 (Honey Maple) 3006-060-449 (Select Cherry) 3006-060-450 (Sand White -Standard) 3006-060-900 (Custom White) Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 206 Head Board Assembly - 3006-600-010 Item Part No. Part Name Qty. 0023-319-000 Hex Washer Head Screw 3006-508-011 Footboard Screw Cover Label 3006-600-000 Headboard Ass’y, Standard Comp. 3006-600-017 Headboard Bumper, Right 3006-600-018 Headboard Bumper, Left Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 207: Optional Cpr Board Assembly - 3006-626-010

    Optional CPR Board Assembly - 3006-626-010 Item Part No. Part Name Qty. 0023-088-000 Pan Head Tapping Screw 3006-526-002 CPR Headboard Clip 3006-526-003 CPR Board Label 3006-626-001 CPR Board Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 208: Optional Removable I.v. Pole And Mounting Ass'y - 3001-338-010

    Optional Removable I.V. Pole and Mounting Ass’y - 3001-338-010 Item Part No. Part Name Qty. 0002-031-000 Round Head Screw 0003-124-000 Hex Washer Head Screw 0958-001-224 I.V. Clip 3000-300-080 I.V. Pole Assembly 3001-300-087 Mounting Bracket 0013-018-000 External Tooth Lock Washer Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 209: Removable I.v. Pole Assembly - 3000-300-080

    Removable I.V. Pole Assembly - 3000-300-080 Item Part No. Part Name Qty. 3000-300-081 Outer Tube 3000-300-089 Label 0024-050-000 Fluted Knob 0052-017-000 Spacer 0007-040-000 Phillips Truss Head Screw 1010-059-016 I.V. Hook 3000-300-085 Inner Tube Assembly Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 210: Optional 2-Stage I.v. Pole Assembly - 2035-112-000

    Item Part No. Part Name Qty. 1015-024-035 Retaining Pin 0021-140-000 Set Screw 2035-112-001 I.V. Receptacle, HE, Left 2035-112-010 I.V. Pole Assembly, HE, Left (pg. 212) 3000-311-016 I.V. Rest 2035-112-110 Specification Label Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 211: Optional Dual Head End I.v. Pole Assembly - 2035-113-000

    2035-112-110 Specification Label 2035-113-002 I.V. Receptacle, Dual HE, Left 2035-113-001 I.V. Receptacle, Dual HE, Right 2035-113-011 I.V. Pole Assembly, HE, Right (pg. 212) 2035-113-111 Specification Label 2035-113-006 Head End Bumper Spacer Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 212: 2-Stage I.v. Pole - 2035-112-010 & 2035-113-011

    Base Tube Weldment 1001-259-032 Base Tube Weldment 1010-259-016 I.V. Hook 1010-259-016 I.V. Hook 0785-035-103 I.V. Pole Latch (pg. 213) 0785-035-103 I.V. Pole Latch (pg. 213) 1211-110-029 2nd Stage Assembly 1211-110-029 2nd Stage Assembly Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 213: Pole Latch Assembly - 0785-035-103

    I.V. Latch ID Housing 0785-035-024 I.V. Latch OD Housing 0785-035-029 I.V. Release Label 1211-011-018 I.V. Latch Seal 1211-110-020 Washer 1211-110-021 I.V. Latch Locking Pin 1211-110-022 I.V. Latch Guide 1211-110-035 Washer 1211-110-036 Self-Tapping Screw Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 214: Optional Defibrillator Tray Assembly - 3006-120-004

    Spacer 1010-050-019 “Push/Pull” Label 1010-050-021 Long Strap 1010-050-050 Knob 1010-050-057 Maximum Weight Label 1010-050-242 Lock Pin 2025-120-005 Equipment Label 3006-120-018 Tray Assembly 2040-090-001 Warning Label - Accessories 3006-120-003 Pivot Weldment Frame Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 215: Optional Pleur-Evac Rack With Defibrillator Tray - 2040-120-004

    Optional Pleur-Evac Rack with Defibrillator Tray - 2040-120-004 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 216 Spacer 1010-050-019 “Push/Pull” Label 1010-050-021 Long Strap 1010-050-050 Knob 1010-050-057 “Max. Weight” Label 1010-050-242 Lock Pin 2025-120-005 Equipment Label 2025-120-018 Tray Assembly 2040-090-001 Warning Label 2040-090-005 Specification Label 2040-120-003 Rack Weldment Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 217: Optional Upright O2 Bottle Holder Assembly - 3006-150-000

    Optional Upright O2 Bottle Holder Assembly - 3006-150-000 Item Part No. Part Name Qty. 2025-150-001 Bottle Holder Adapter 3006-046-001 Upright Bottle Holder Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 218: Optional Accessory Adapter Frame - 3006-333-000

    Accessory Adapter Label 0003-031-000 Hex Head Cap Screw 0003-025-000 Hex Head Cap Screw 0011-361-000 3/8” Flat Washer 0011-004-000 Flat Washer 0016-035-000 Nylock Nut 3000-300-002 Plastic Clip Nut 0023-080-000 Truss Head Screw Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 219: Optional Litter Roller Assembly - 3006-335-000

    Optional Litter Roller Assembly - 3006-335-000 Item Part No. Part Name Qty. 3006-335-005 Roller Assembly (pg. 220) Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 220: Roller Assembly - 3006-335-005

    Item Part No. Part Name Qty. 0003-225-000 Hex Washer Head Screw 0052-727-000 Groove-less Retainer Ring 3000-335-011 Roller Bumper 3000-335-012 Roller Shaft 3006-336-020 Roller Bracket 3006-336-025 Roller Mounting Plate 0052-017-000 Plastic Washer Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 221: Optional Bed Extender Assembly - 3006-346-020

    Optional Bed Extender Assembly - 3006-346-020 Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 222 0007-052-000 Truss Head Screw 0013-010-000 External Tooth Lock Washer 3001-200-228 Mounting Standoff 0050-039-000 Pan Head Machine Screw 3003-318-801 Bed Extender Cable 3000-300-114 Cable Tie 3006-300-349 7900-001-102 Velcro Adhesive Pile 0011-146-000 Washer Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 223: Optional Bed Extender Mattress - 3000-318-050

    Optional Bed Extender Mattress - 3000-318-050 Return To Table of Contents www.stryker.com 3006-109-006 REV B...

  • Page 224: Optional Traction Socket Extensions

    Optional Traction Socket Extensions For Reference Only: 3000-337-050 For Reference Only: 3000-337-450 For Reference Only: 3000-337-475 For Reference Only: 3000-337-850 For Reference Only: 3000-337-875 Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 225: Warranty

    Stryker’s obligation under this warranty is expressly limited to supplying replacement parts and labor for, or replacing, at its option, any product which is, in the sole discretion of Stryker, found to be defective. If requested by Stryker, products or parts for which a warranty claim is made shall be returned prepaid to the factory. Any improper use or any alteration or repair by others in such manner as in Stryker’s judgment affects the product materially and adversely...

  • Page 226: Service Contract Programs

    Stryker authorized parts used Service during regular business hours (8−5) * Does not include maintenance due to abuse or for any disposable items. Stryker reserves the right to change options without notice. Stryker Medical also Offers personalized service contracts. Pricing is determined by age, location, model and condition of product.

  • Page 227: Emc Information

    IEC 61000-4-8 characteristic typical location in a typical commercial and/or hospital environment. Note: U is the a.c. mains voltage prior to applications of the test level. Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 228 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. Note 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 229 S3 MedSurg Bed. Over the frequency range 150 kHz to 80 MHz, field strengths are less than 3 V/m. Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 230 CISPR 11 connected to the public low voltage power supply network that supplies buildings used for domestic purposes. Harmonic Emissions Class A IEC 61000-3-2 Voltage Fluctuations Flicker Emissions Complies IEC 6100-3-3 Return To Table of Contents 3006-109-006 REV B www.stryker.com...

  • Page 231: Recycling Passport

    Recycling Passport Assembly Part number: 3006-375-895 (Reference Only) Item Recycling/Material Code Important Information (3006-307-900) CPU Board (0059-157-000) Power Supply Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 232 Recycling Passport Assembly Part number: 3006-303-010 (Reference Only) Item Recycling/Material Code Important Information (3006-303-900) 37-Pin Plugover Board Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 233 Recycling Passport Assembly Part number: 3006-400-125 (Reference Only) Assembly Part number: 3006-400-225 (Reference Only) Item Recycling/Material Code Important Information (3006-400-910) Siderail Outer PCB, Left (3006-400-910) Siderail Outer PCB, Right Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 234 Recycling Passport Assembly Part number: 3006-400-130 (Reference Only) Assembly Part number: 3006-400-230 (Reference Only) Item Recycling/Material Code Important Information (3006-400-930) Siderail Outer PCB, Left (3006-400-930) Siderail Outer PCB, Right Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 235 Recycling Passport Assembly Part number: 3006-303-045 (Reference Only) HEAD END, Patient Left Side Item Recycling/Material Code Important Information (3006-303-871) Battery 9V Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 236 Recycling Passport Assembly Part number: 3001-314-012 (Reference Only) Item Recycling/Material Code Important Information (3001-314-920) Pendant Port PCB Return To Table of Contents 3006-109-006 REV B www.stryker.com...
  • Page 237 Recycling Passport Assembly Part number: 3006-553-011 (Reference Only) Item Recycling/Material Code Important Information (3006-500-011) Footboard PCB Return To Table of Contents www.stryker.com 3006-109-006 REV B...
  • Page 239 UNITED STATES UNITED STATES Stryker Medical Stryker Medical 3800 E. Centre Ave., 3800 E. Centre Ave., Portage, Michigan USA Portage, Michigan USA 49002 49002 CANADA CANADA Stryker Canada Stryker Canada 45 Innovation Drive 45 Innovation Drive Hamilton, Ontario Canada Hamilton, Ontario Canada...

This manual is also suitable for:

Medsurg patriot 3002 s3Medsurg signature 3002 s3

Table of Contents

Save PDF
