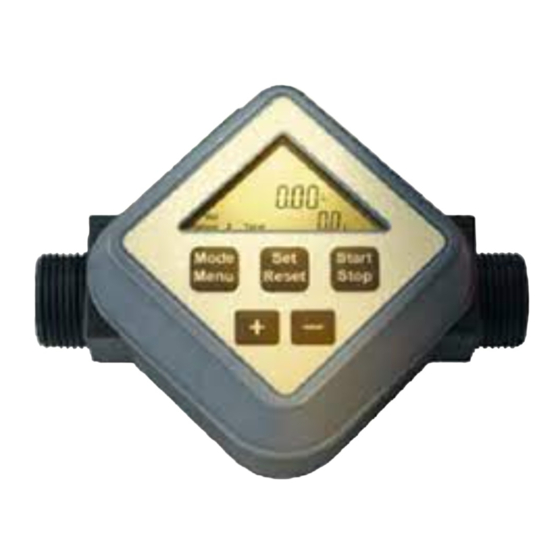

- Page 1 PKP Prozessmesstechnik GmbH Borsigstrasse 24 D-65205 Wiesbaden-Nordenstadt Tel: 06122 / 7055 - 0 Fax: 06122 / 7055 – 50 Operating Instructions DR15 Rotating Vane Flowmeter, Counter, and Batcher...
-
Page 2: Table Of Contents
Revision 1.7en Operation Manual Rel. 16.10.06 Flowmeter DR15 Table of content: OPERATION ELEMENTS.................... 2 Front panel layout ..............................2 Operating Keys:..............................2 STARTING OPERATION:.................... 3 Mounting ................................3 OPERATING MODES: ....................3 Turn on..................................3 Turn off .................................4 Volume measurement (standard mode): ......................4 Flow measurement: ..............................4 Presettable Batch Controller (Option): ......................5... -
Page 3: Operation Elements
1.1 Front panel layout 1.2 Operating Keys: Selection of menu/mode Setting of selected mode/reset to definite state Start / stop activates/inactivates an electronic switch (e.g. pump) Increment/selection of range Decrement/selection of range Seite 2/8 Operation manual DR15 Rev 1.7e 16.10.06... -
Page 4: Starting Operation
- Presetting: Preset 3.1 Turn on The device is turned on by pressing . Furthermore the flow-meter starts operation when a minimum liquid flow is detected. In this case counting is started immediately. Seite 3/8 Operation manual DR15 Rev 1.7e 16.10.06... -
Page 5: Turn Off
To set the lower numerical display to zero press and hold and press 3.4 Flow measurement: The upper numerical display shows the actual flow in L/min Flowrate The lower numerical display shows the total sum of the selected range Range Seite 4/8 Operation manual DR15 Rev 1.7e 16.10.06... -
Page 6: Presettable Batch Controller (Option)
Pump a known volume of liquid through the flow-meter (e.g. 20 litres). Make sure that the selected flow rate is within the flow-meters specification. The upper display shows the volume that is measured with the selected calibration factor. Seite 5/8 Operation manual DR15 Rev 1.7e 16.10.06... -
Page 7: Additional Functions
Remove old battery and put new on in. Put cover on and look for proper fit of the sealing ring. Tighten 4 screw so that cover and case fit together. Don’t’t tighten screws with force! Seite 6/8 Operation manual DR15 Rev 1.7e 16.10.06... -
Page 8: Firmware Version Indication
For resetting the flow-meter the mode for identifying the firmware version (s. 5.3) must be entered. Now the reset could be done with . After this the standard mode is selected. Pressing leaves the mode without changes. Seite 7/8 Operation manual DR15 Rev 1.7e 16.10.06... -
Page 9: Specifications
6 Specifications Specifications of flow-meter DR15 Type DR1520 Principle of operation Radial turbine wheel with proportional impulse transmitter Fluid examples according to type DR15-PP hydrochloric acid, caustic soda, seewater DR15-POM Diesel, heating oil, DR15-PVDF sulfuric acid, chlorine bleaching liquor Material of fluid connecting devices... - Page 10 Specification Revision 1.1 Vom 31.5.2010 DR15...IK The flowmeter DR15...IK is equipped with a switch output and a one channel impulse output Technical data: Switching output: High-Side, load to GND output „HIGH“ : Supply – 2VDC (appr.) output „LOW“ : max. 0.5VDC max.
- Page 11 Revision 1.1 Specification Vom 31.5.2010 DR15...IK Connection: cable 5 pin., length 1.5 m colors: white: yellow: Supply 12 .. 32 VDC (appx 20mA, without load) green: High side output brown: Impulse output grey: GND for impulse page 2/2 DR15...IK 31.5.2010...
- Page 12 Typical applications: A turbine mounted in the flow tube is rotated by the flowing Model DR15 flow meters and counters are used to monitor, liquid. The rotary motion is sensed by two reed relays via a measure and dose low-viscosity liquids such as water, diesel magnetic coupling, and transmitted to an electronic in the oil, sodium hydroxide solution and the like.
- Page 13 LCD, 2 x 6-digit Display: foil keyboard with 5 keys Operation: Supply: lithium-battery type AA, 3,6 V, 2300 mAh ca. 300 g Weight: PKP Prozessmesstechnik GmbH +49 (0) 6122-7055-0 • T +49 (0) 6122 7055-50 Borsigstr. 24 • D-65205 Wiesbaden info@pkp.de • www.pkp.de...
