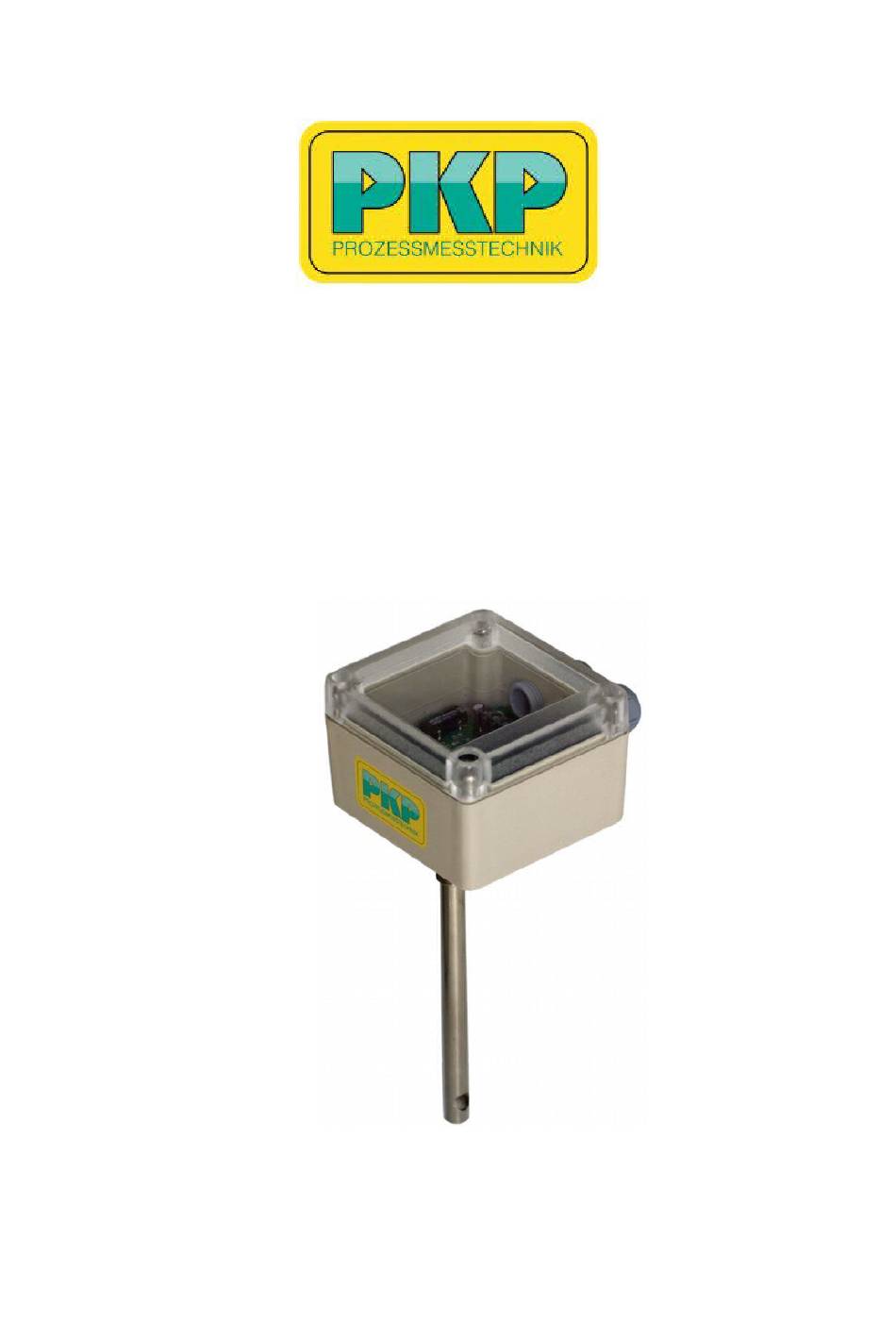

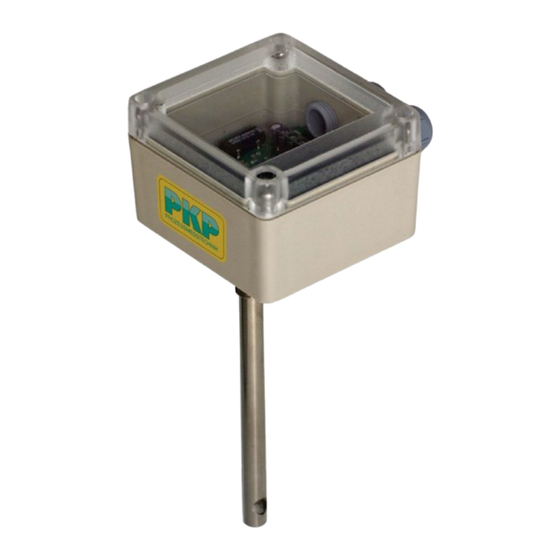

- Page 1 Instruction Manual DTL06 Calorimetric flow sensor for air -analogue output- PKP Prozessmesstechnik GmbH Borsigstraße 24 D-65205 Wiesbaden-Nordenstadt Tel.: ++49-(0)6122-7055-0 Fax: ++49-(0)6122-7055-50 Email: info@pkp.de - www.pkp.de...
- Page 2 The series DTL06 flow meter devices should not be deployed as the sole agents to pre- vent dangerous conditions occurring in plant or machinery. Machinery and plant need to be designed in such a manner that faulty conditions and malfunctions do not arise that could pose a safety risk for operators.
- Page 3 Qualified Personnel The DTL06 devices may only be installed by trained, qualified personnel who are able to mount the devices correctly. Qualified personnel are persons, who are familiar with assembling, installation, placing in service and operating these devices and who are suit- ably trained and qualified.
- Page 4 (VDE 0100, VDE 0113, VDE 0160). Wiring diagram: Commissioning Commissioning the DTL06 you need to follow these points: 1. install the device (see also: “Installation instruction”!) 2. connect the device regarding to the manual 3. set potentiometer “sensitivity” to minimum sensitivity 4.
- Page 5 Check installation conditions Sensor is highly plluted Clean the sensor Device shows unusual Sensor is heavily contaminated Clean the sensor response by the medium Mistakes and misprints are not to be excluded. All information „without guarantee“. DTL06 Instruction manual 05/2021 page 5...
- Page 6 The temperature difference between the two resistances is proportional to the flow velocity and thus to the volume flow. The measured values of the DTL06 can be read off analogously by a voltage signal, which is simply set on site via a built-in potentiometer.
- Page 7 3 clamps, 2,5 mm² Protection class housing: IP54 Protection class sensor: IP67 Reference conditions: 20 °C, 48 % r.h., 1016 mbar Electrical Connection: PKP Prozessmesstechnik GmbH +49 (0) 6122-7055-0 • T +49 (0) 6122 7055-50 Borsigstr. 24 • D-65205 Wiesbaden info@pkp.de • www.pkp.de...
