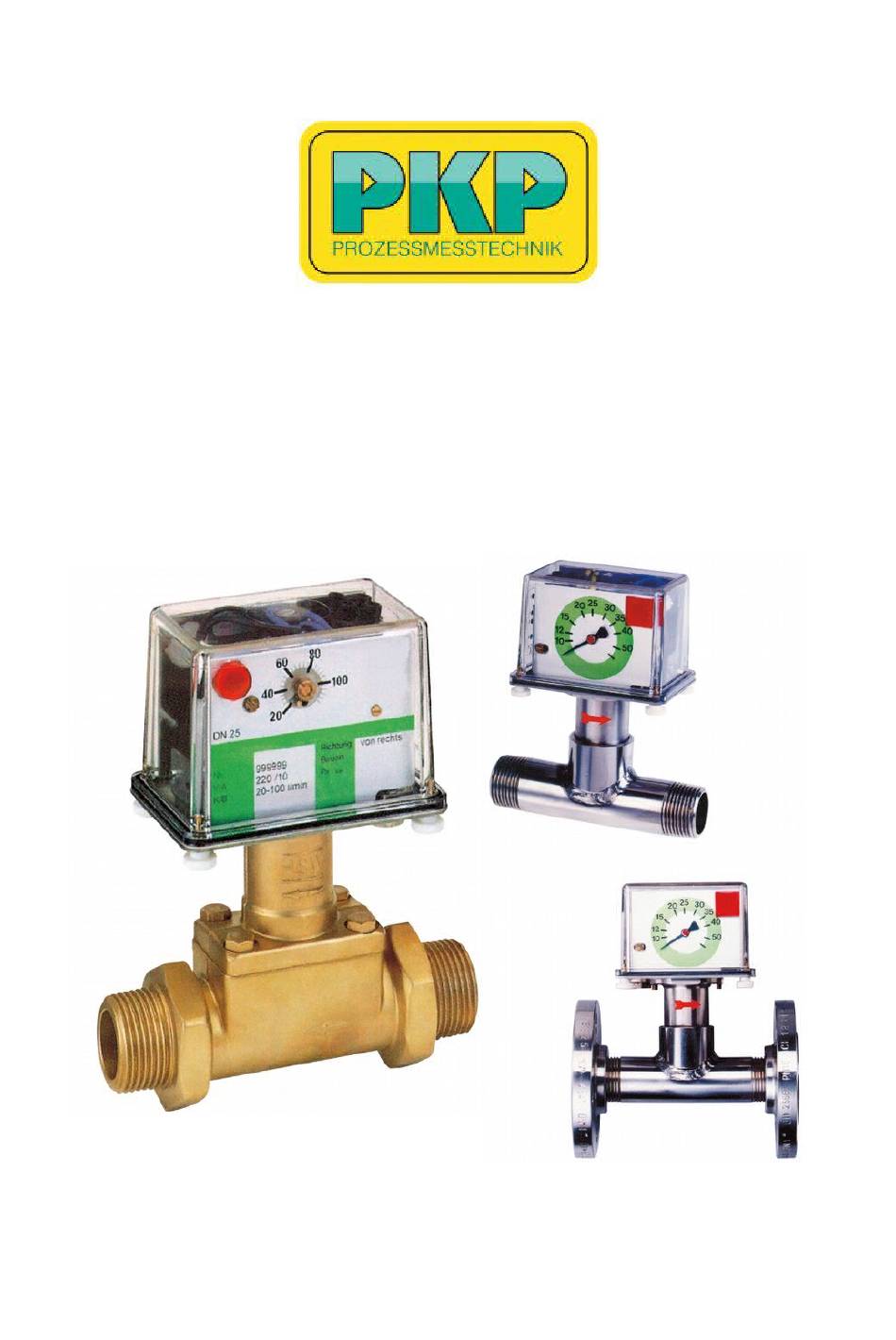

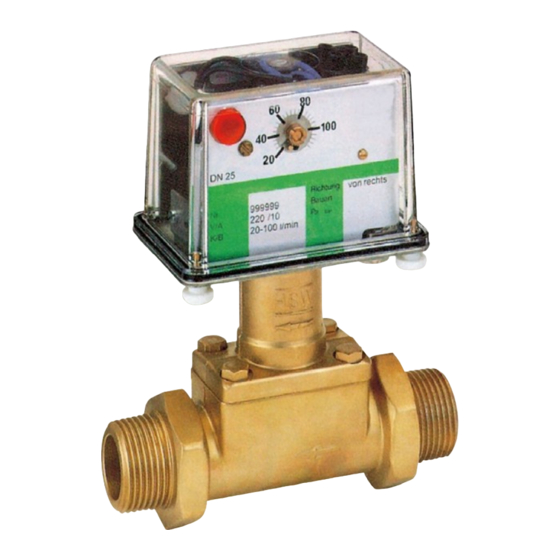

- Page 1 Instruction Manual DP05 / DP06 Paddle bellows flow switch / meter PKP Prozessmesstechnik GmbH Borsigstraße 24 D-65205 Wiesbaden-Nordenstadt Tel.: ++49-(0)6122-7055-0 Fax: ++49-(0)6122-7055-50 Email: info@pkp.de...
-
Page 2: Table Of Contents
In particular, applications in which shock loads occur (for example, pulsed operation) should be discussed and checked in advance with our technical staff. The series DP05 and DP06 flow meter devices should not be deployed as the sole agents to prevent dangerous conditions occurring in plant or machinery. Machinery and plant need to be designed in such a manner that faulty conditions and malfunctions do not arise that could pose a safety risk for operators. -
Page 3: Measuring Principal / Function
Qualified Personnel The DP05 and DP06 devices may only be installed by trained, qualified personnel who are able to mount the devices correctly. Qualified personnel are persons, who are familiar with assembling, installation, placing in service and operating these devices and who are suitably trained and qualified. -
Page 4: Mounting
Mounting Mounting orientation The Flow-Switches and Flow-Meters DP05 and DP06 are designed to be installed directly in a pipe system. Make sure that the instruments are installed according the information on the type plate. The flow-direction correlates to the direction of the pipe. Inaccuracy of the instrument will result from incorrect mounting. -
Page 5: Process Connection
Drill a ridge less hole in the pipe and weld on the socket. Use the enclosed sealing. Please keep the flow direction in consideration during mounting procedure (arrow). The pipe must be free from pollution. DP05 / DP06 Instruction manual 07/2020 page 5... -
Page 6: Electrical Connection
Circuit diagram Calibration dates Calibration dates, type of device and serial number are indicated at the label. Changes of medium, pressure and position of mounting will influence accuracy. DP05 / DP06 Instruction manual 07/2020 page 6... -
Page 7: Switch-Point
The actual flow is indicated at front side of the unit. Maintenance The flow switches and meters DP05 and DP06 are almost maintenance-free. In case of mal-function first of all check the pipe system for calcification or other obstruction. For cleaning do not use sharp-edged tools. Damaged instruments can only be repaired in our factory, because they have to be re-calibrated. - Page 8 • optical switching display by signal lamp Description: Typical applications: The flow switches model DP05 operates according to the The DP05 paddle-bellows flow switch is suitable for paddle-bellows principle. The flowing liquid pushes against monitoring thin and low-viscosity liquids in average to large the surface area of a paddle mounted at the end of a pivoting flow volumes, eg.
- Page 9 Models: Order Code: Order number: DP05. R025. 1. 20-100 Each of the 3 types of DP05 flow switches are available in 3 material combinations: Paddle-bellows flow switch with T-fitting and pipe-thread connection DP05.R… Process connection from R 3/8 to R 2 male thread...
- Page 10 (no flow), which causes the system to automatically signal a fault. 20181114 PKP Prozessmesstechnik GmbH +49 (0) 6122-7055-0 • T +49 (0) 6122 7055-50 Borsigstr. 24 • D-65205 Wiesbaden info@pkp.de •...
- Page 11 (depending on the con. voltage) IP55 (IP65 on request) Protection Class: Please specify the connection voltage 24 V or 230 V. PKP Prozessmesstechnik GmbH +49 (0) 6122-7055-0 • T +49 (0) 6122 7055-50 Borsigstr. 24 • D-65205 Wiesbaden info@pkp.de •...
