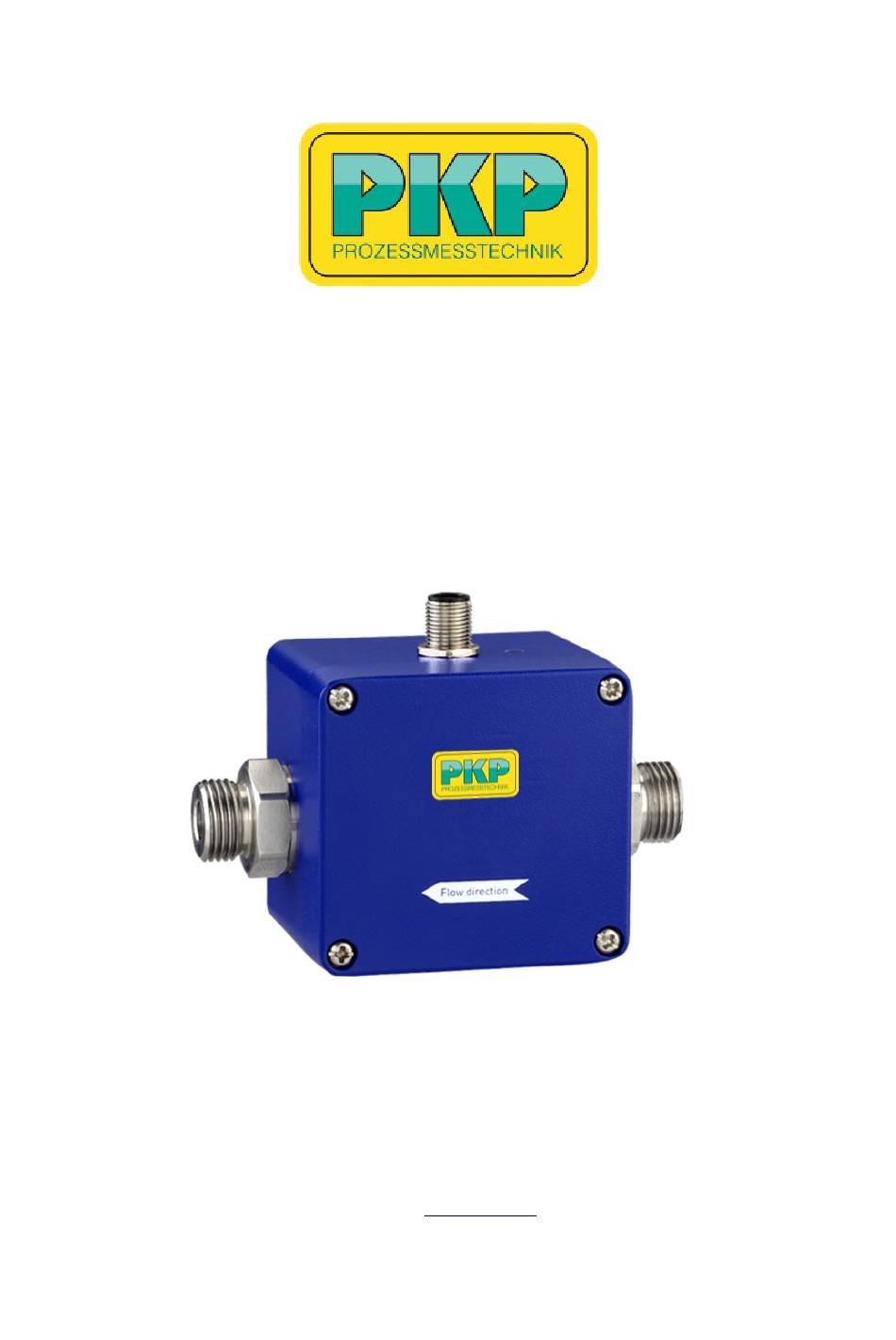

- Page 1 Instruction Manual DM04 Magnetic inductive flowmeter PKP Prozessmesstechnik GmbH Borsigstraße 24 D-65205 Wiesbaden-Nordenstadt Tel.: ++49-(0)6122-7055-0 Fax: ++49-(0)6122-7055-50 Email: info@pkp.de...
-
Page 2: Table Of Contents
1 Device description............................3 1.1 Delivery, unpacking and accessories.......................3 1.2 Intended use.............................4 1.3 Exclusion of liability..........................4 2 Safety instructions............................5 3 Construction and function...........................6 4 Installation of DM04...........................7 4.1 Installation instructions..........................7 4.2 Mounting..............................8 5 Electrical connection...........................9 5.1 Wirings..............................10 6 Commissioning and measuring mode.......................11 6.1 Commissioning............................11... -
Page 3: About This Operating Manual
Check the specified points or notices. that is marked with this symbol. Reference to another section, document or Follow the specified instructions and steps. source. Adhere to the given order. • Item. - 2 - PKP Prozessmesstechnik • 08/2019... -
Page 4: Device Description

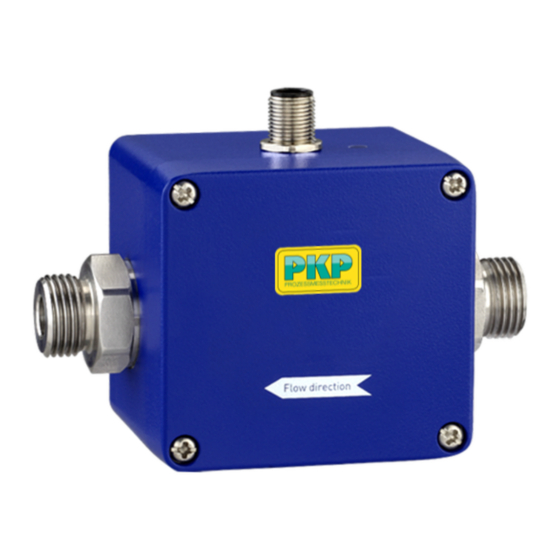

DM04 Device description The devices of the DM04 series from PKP, is a non-contact flow sensor. The measurement is performed us- ing magnetic induction and works without any moving parts. The DM04 is used for measuring or metering water and aqueous solutions. The compact design and inde- pendence from the intake and discharge sections allows the DM04 to be used under a variety of conditions. -
Page 5: Intended Use
Measuring tube empty (or partially filled). / Conductivity too low. The green LED may blink irregularly if the measuring tube of the DM04 is empty or partially filled or if the conductivity of the fluid being used is too low. Random pulses will be present at the output, but they do not represent an actual flow. -
Page 6: Safety Instructions
Prevent freezing of the medium in the device with appropriate measures. Only use the DM04 if it is in perfect condition. Damaged or faulty devices must be checked without delay and, if necessary, replaced. When fitting, connecting and removing the DM04 use only suitable appropriate tools. -
Page 7: Construction And Function
The two stainless steel electrodes are located in the middle of the measuring tube between the earthing sleeves. The DM04 does not need any moving parts to make measurements. The inside of the measuring tube is completely open, allowing the fluid to flow unhindered through the measuring tube. -
Page 8: Installation Of Dm04
Ensure that no external magnetic fields are present at the installation site of the DM04. The DM04 can always be installed anywhere along the pipeline. Straight sections of piping are prefer- able, however. - 7 - PKP Prozessmesstechnik • 08/2019... -
Page 9: Mounting
The inlet and outlet sections and the gaskets must have the same or a slightly larger inside diameter than the measuring tube in order to achieve the specified accuracy. 4.2 Mounting The DM04 is installed directly into the pipeline. The compact design and light weight of the unit make wall- mounting unnecessary. IMPORTANT NOTICES: ... -
Page 10: Electrical Connection
DM04 Electrical connection The electrical connection of the DM04 is via the 5-pin plug M12x1 at the top of the housing. The wiring of the DM04 depends on the ordered version. A distinction is made between frequency and ana- logue output, as well as basic and optional wiring. -
Page 11: Wirings
DM04 with frequency output: Push-Pull: NPN Open Collector: PNP Open Collector: *1: Push-Pull switching outputs of several DM04 may not be connected in parallel. *2: Recommendation Pull-Up / Pull-Down resistance R ~5 kΩ Use of frequency and analogue output Push-Pull:... -
Page 12: Commissioning And Measuring Mode
the measuring system is vented by flushing. 6.2 Switching on and off The DM04 has no switch and can therefore not be switched on and off independently. Switching on and off takes place via the connected supply voltage. Switch on the supply voltage. - Page 13 Instruction Manual DM04 DM04 with analogue output: According to the configuration of the DM04, the analogue output provides a voltage or current sig- nal. This signal is proportional to the measured flow. - 12 - PKP Prozessmesstechnik • 08/2019...
-
Page 14: Maintenance And Cleaning
DM04 Maintenance and cleaning Maintenance: The DM04 is maintenance-free and cannot be repaired by the user. In case of a defect, the device must be re- placed or sent back the manufacturer for repair. CAUTION! Material damage! When opening the device, critical parts or components can be damage. -
Page 15: Disassembly And Disposal
Disposal: NO HOUSEHOLD WASTE! The DM04 consists of various different materials. It must not be disposed of with household waste. Take the DM04 to your local recycling plant send the DM04 back to your supplier or to PKP. -
Page 16: Technical Data
Instruction Manual DM04 Technical data The technical data of customised versions may differ from the data in these instructions. Please observe the information specified on the type plate. 9.1 Characteristics DM04 Type DM04 DN 07 DM04 DN 10 DM04 DN 20... -
Page 17: Materials Table
Housing Aluminium die casting Measuring tube PEEK-GF30 Electrodes Stainless steel 1.4571 Gaskets EPDM • FKM (optional) Process connections Stainless steel 1.4571 9.3 Pressure drop DM04 DN07 and DM04 DN 10: DM04 DN 20: - 16 - PKP Prozessmesstechnik • 08/2019... -
Page 18: Temperature Limits
Instruction Manual DM04 9.4 Temperature limits The maximum ambient temperature depends on the medium temperature and the version of the DM04. - 17 - PKP Prozessmesstechnik • 08/2019... -
Page 19: Dimensions
Instruction Manual DM04 9.5 Dimensions DM04 DN 07 and DM04 DN 10: G¾A only for DM04 DN 10. The cross section of the DM04 DN 10 does not taper to 4 mm. DM04 20: - 18 - PKP Prozessmesstechnik • 08/2019... - Page 20 • universally applicable due to the very wide measuring span • foreign bodies carried along in the flow and viscous media interspersed with solids are also unproblematic. • due to the compact design and the low price the DM04 is suitable for serial applications. 20190123 PKP Prozessmesstechnik GmbH +49 (0) 6122-7055-0 •...
- Page 21 0...20 l/min 0...40 l/min 0...200 l/min flow rate * 0...30 l/min 0...60 l/min 0...250 l/min * other ranges available on request PKP Prozessmesstechnik GmbH +49 (0) 6122-7055-0 • T +49 (0) 6122 7055-50 Borsigstr. 24 • D-65205 Wiesbaden info@pkp.de • www.pkp.de...
- Page 22 A = frequency and analogue (4...20 mA) V = frequency and analogue (0...10 V) Measuring range DM04.1 and DM04.2 (G ½ male): 1 = 0...20 l/min (DN 07 only) 2 = 0...30 l/min (DN 07 only) 3 = 0...40 l/min (DN 10 only) 4 = 0...60 l/min (DN 10 only)
- Page 23 Dimensions: DN 7, DN 10: DN 20: PKP Prozessmesstechnik GmbH +49 (0) 6122-7055-0 • T +49 (0) 6122 7055-50 Borsigstr. 24 • D-65205 Wiesbaden info@pkp.de • www.pkp.de...
