STOP RING NUT

NB: If you use tubes with a round form, the driving pulley must be fixed to the tube, and

the installation is to be paid by the person who installs the system. For other tube sections

the fitting is optional, but strongly recommended.

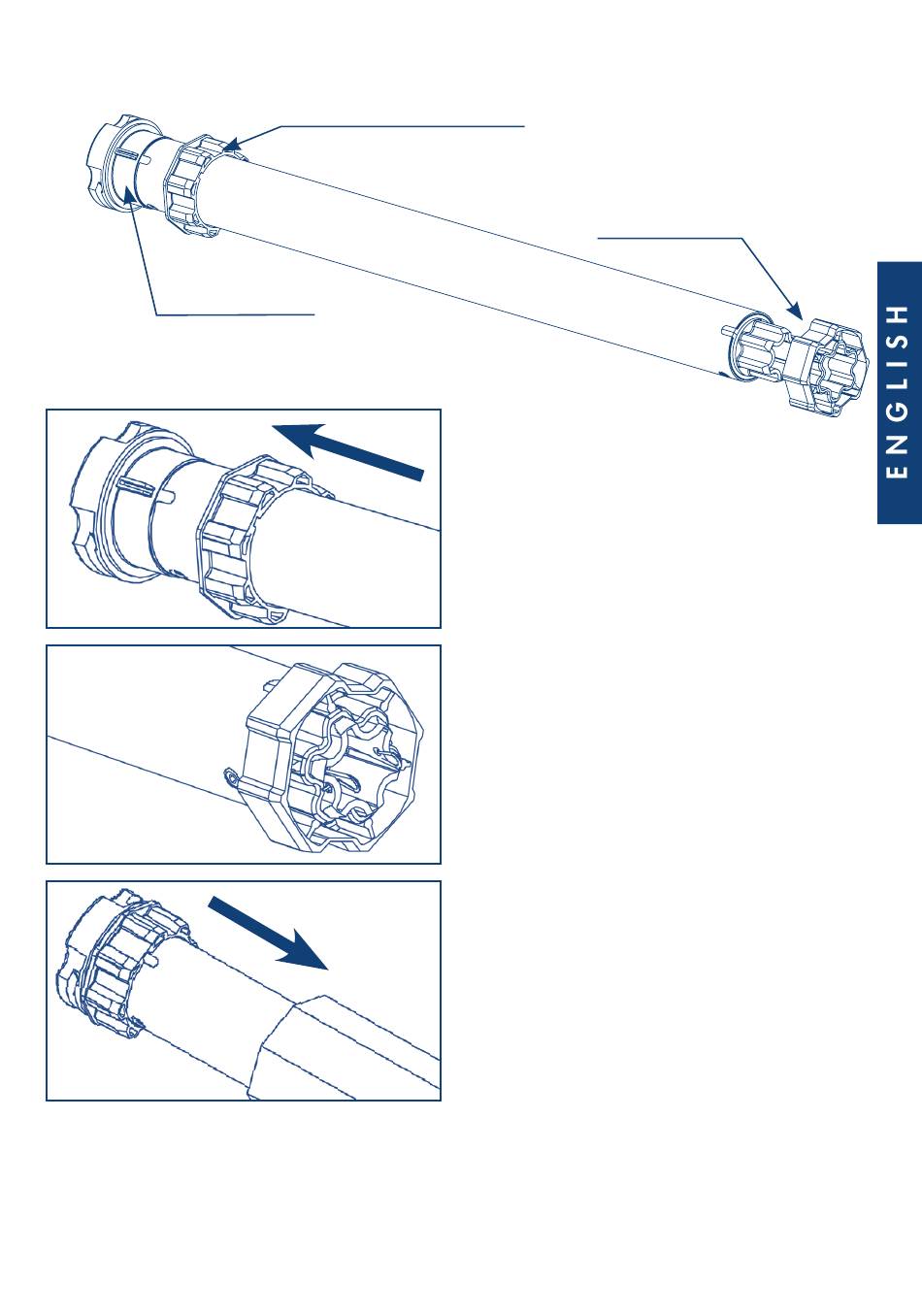

HOW TO PREPARE THE MOTOR

STOP RING NUT ADAPTOR

DRIVING PULLEY

1. Insert the adaptor in the stop ring nut

mating the groove with the reference

notch and push till they touch.

2. Fix the driving pulley on the motor pin

until the stop pin clicks.

3. Insert the motor fully in the rolling tube.
