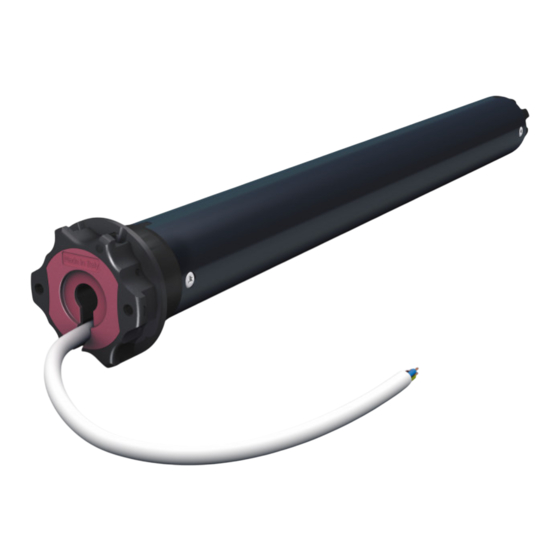

CHERUBINI ORA ZRX Instructions Manual

Dual radio motor with electronic limit switch for awnings and pergolas
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ORA ZRX
IT
MOTORE DOPPIA RADIO CON FINECORSA ELETTRONICO
PER TENDE DA SOLE E PERGOLE
DUAL RADIO MOTOR WITH ELECTRONIC LIMIT SWITCH
EN
FOR AWNINGS AND PERGOLAS
DUAL-FUNKMOTOR MIT ELEKTRONISCHEN ENDLAGEN
DE
MARKISEN UND PERGOLAS
MOTEUR À DOUBLE COMMANDE RADIO AVEC CONTACT
FR
DE FINS DE COURSE ÉLECTRONIQUES POUR STORES À BRAS
MOTOR RADIO DUAL CON FIN DE CARRERA ELECTRÓNICO
ES
PARA TOLDOS Y PÉRGOLAS
ISTRUZIONI - INSTRUCTIONS - EINSTELLANLEITUNGEN
INSTRUCTIONS - INSTRUCCIONES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ORA ZRX and is the answer not in the manual?

Questions and answers

Related Manuals for CHERUBINI ORA ZRX

Summary of Contents for CHERUBINI ORA ZRX

  • Page 1 ORA ZRX MOTORE DOPPIA RADIO CON FINECORSA ELETTRONICO PER TENDE DA SOLE E PERGOLE DUAL RADIO MOTOR WITH ELECTRONIC LIMIT SWITCH FOR AWNINGS AND PERGOLAS DUAL-FUNKMOTOR MIT ELEKTRONISCHEN ENDLAGEN MARKISEN UND PERGOLAS MOTEUR À DOUBLE COMMANDE RADIO AVEC CONTACT DE FINS DE COURSE ÉLECTRONIQUES POUR STORES À BRAS MOTOR RADIO DUAL CON FIN DE CARRERA ELECTRÓNICO...

  • Page 3: Table Of Contents

    TRANSLATION OF THE ORIGINAL INSTRUCTIONS Table of contents: Motor installation: main steps ................p. 38 How to prepare the motor ..................p. 39 Electrical connections ..................... p. 40 Compatible remote controls ................... p. 41 Key to symbols ..................... p. 41-42 Command sequences example ................

  • Page 4: Motor Installation: Main Steps

    Table of contents: USING THE MOTOR INTO A Z-WAVE NETWORK Device description ....................p. 58 Z-WAVE technical specification ................p. 58 Device installation ....................p. 59 Inclusion/exclusion the device into/from a Z-WAVE network (classic) ....p. 59 STANDARD inclusion (inclusion/exclusion) ............p. 60 SMARTSTART inclusion ..................

  • Page 5: How To Prepare The Motor

    HOW TO PREPARE THE MOTOR STOP RING NUT ADAPTOR DRIVING PULLEY STOP RING NUT 1. Insert the adaptor in the stop ring nut mating the groove with the reference notch and push till they touch. 2. Fix the driving pulley on the motor pin until the stop pin clicks.

  • Page 6: Electrical Connections

    ELECTRICAL CONNECTIONS - In order to prevent dangerous situations or malfunctioning, the electrical command elements wired to the motor must be sized according to the motor’s electrical features. - Means for disconnection must be incorporated in the fixed wiring in accordance with the national installation standards.

  • Page 7: Compatible Remote Controls

    COMPATIBLE REMOTE CONTROLS GIRO GIRO Wall stop DOWN down STOP GIRO Lux GIRO P-Lux DISPLAY GIRO Plus DISPLAY Activating the Change channel DISPLAY Change Sun sensor channel Wind sensor Wind sensor is “ON” is “ON” Sun sensor is “ON” Sun sensor is “ON” Change Activating/ Deactivating the Sun sensor Deactivating the Sun sensor...

  • Page 8: Command Sequences Example

    KEY TO SYMBOLS short motor rotation in one direction Press button A long motor rotation in other direction Down double short rotation Press buttons A and B at the same time COMMAND SEQUENCES EXAMPLE Most of the command sequences have three distinct steps, at the end of which the motor indicates if the step has been concluded positively or not, by turning in different ways.

  • Page 9: Function Open/Close Programming Remote Control

    FUNCTION OPEN/CLOSE PROGRAMMING REMOTE CONTROL SKIPPER PLUS - SKIPPER LUX - SKIPPER P-LUX REMOTE CONTROL POP PLUS - POP LUX - POP P-LUX To prevent accidental changes to the programming of the motor during the daily use of the remote control, the possibility of programming is disabled automatically 8 hours after sending the last sequence (A+B or B+C).
  • Page 10 FUNCTION OPEN/CLOSE PROGRAMMING REMOTE CONTROL SKIPPER - SERIES GIRO - REMOTE CONTROL POP To prevent accidental changes to the programming of the motor during the daily use of the remote control, the possibility of programming is disabled automatically 8 hours after sending the last sequence (A+B or B+C).

  • Page 11: Setting The First Remote Control

    SETTING THE FIRST REMOTE CONTROL This operation can only be performed when the motor is new, or after a total delete of the memory. During this step, power up only one motor at time! T1: First remote control to be set T1 (2 sec) AUTOMATIC DISABLING OF THE FIRST REMOTE CONTROL SETTING FUNCTION...

  • Page 12: Setting Of The Limit Switches

    SETTING OF THE LIMIT SWITCHES Tubular motors have an electronic limit switch system with an encoder. This system ensures great reliability and precision in keeping the positions. Limit switch regulation is performed simply with the remote control. During setting, the motor moves only as long as the up or down button is pressed, stopping when the button is released.

  • Page 13: Deleting The Limit Switch Positions

    DELETING THE LIMIT SWITCH POSITIONS DELETING THE CLOSING LIMIT SWITCH To delete only the closing limit switch perform the following steps and proceed with “SETTING THE CLOSING LIMIT SWITCH”. Tn: Already programmed remote control Tn (2 sec) DELETING THE OPENING LIMIT SWITCH To delete only the opening limit switch perform the following steps and proceed with “SETTING THE OPENING LIMIT SWITCH”.

  • Page 14: Setting A Middle Position

    SETTING A MIDDLE POSITION This function allows to drive the awning to a favourite middle position. When this middle position is memorized, just press the STOP button for 2 seconds and automatically the motor will move the awning to this position. To memorize the middle position, move the awning to the desired position and then hold the STOP button down (for about 4 seconds) until the motor gives confirmation.

  • Page 15: Closing Force Adjustment

    CLOSING FORCE ADJUSTMENT 70 % This system, the only one of its kind, guarantees that cassette-awnings remain perfectly closed, 40 % without any danger of the canvas suffering excessive traction. The system works in all kinds of applications, thanks to the possibility of manually adjusting the closing force.

  • Page 16: Setting Of Additional Remote Controls

    SETTING OF ADDITIONAL REMOTE CONTROLS Up to 15 remote controls can be set, including the light/wind sensor. Tn: Already programmed remote control Tx: Additional remote control Tx (2 sec) REMOTE CONTROL MEMORY CLEARING It is possible to delete singly all the memorized remote controls. When the last one is deleted the motor initial condition is restored.

  • Page 17: Full Memory Clearing

    FULL MEMORY CLEARING This full memory clearing does not delete the setting of the limit switch. The full memory clearing can be performed in two ways: 1) WITH THE REMOTE CONTROL Tn: Already programmed remote control Tn (4 sec) 2) WITH THE WHITE WIRE Do this operation only in case of emergency, if all remote controls are no longer operating.

  • Page 18: Special Functions

    SPECIAL FUNCTIONS ADDITIONAL MIDDLE POSITION The additional middle position is useful to open the awning automatically through the WindTec Lux sensor and to bring it to a middle position when the light of the environment exceeds the threshold set. This additional middle position can be used only in combination with the light automatism of the WindTec Lux sensor.

  • Page 19: Changing The Additional Middle Position

    CHANGING THE ADDITIONAL MIDDLE POSITION To change the additional middle position repest the procedure described in the previous section. DELETING THE ADDITIONAL MIDDLE POSITION Carry out the following command sequence in order to cancel the additional middle position: Tn: Already programmed remote control Tn (2 sec) SHORT-TERM SETTING OF A REMOTE CONTROL This function makes it possible to store a remote control temporarily, for example, with the...

  • Page 20: Setting The A530058 Pocket Remote Control

    SETTING THE A530058 POCKET REMOTE CONTROL NB: The new pocket remote control can be set only after programming of a previous remote control as the traditional Cherubini remote controls (Skipper, Giro or POP - 3 buttons Up-Down-Stop remote control). HOW TO PROCEED TO SET THE BUTTON ON THE POCKET REMOTE CONTROL...

  • Page 21: Fabric Tightening Function

    FABRIC TIGHTENING FUNCTION By programming this function, the motor after reaching the outer limit, automatically performs a short backwards turn to tighten the fabric. Specially designed for pergolas and horizontal awnings. N.B: The programming of this option can be made only after setting the limit switches. STARTING THE SETTING PROCEDURE: Tn: Already programmed remote control Tn (2 sec)

  • Page 22: Electric Wiring To Motor Command For Up-Down Mode

    ELECTRIC WIRING TO MOTOR COMMAND FOR UP-DOWN MODE (2 independent UP-DOWN buttons) To connect the switch, use only kind of switches with mechanical or electrical interlock, to prevent to press both buttons at same time. The motor automatically recognizes the switch-type (with 1 or 2 buttons) and sets the proper operational mode.

  • Page 23: Command Management From White Wire

    COMMAND MANAGEMENT FROM WHITE WIRE UP-STOP-DOWN-STOP / UP-DOWN / UP-DOWN “DEAD MAN” NB: The default function provided in the motors leaving the factory is UP-STOP-DOWN- STOP for singular UP/DOWN button switch. (Not for the switch with two independent UP-DOWN buttons!) PROCEDURE TO CHANGE THE CONTROL MODE: Tn: Already programmed remote control Tn (2 sec)

  • Page 24: Using The Motor Into A Z-Wave Network

    This product operates in any Z-Wave network with other Z-Wave/Z-Wave Plus certified devices and controllers from any other manufacturer. As a constantly powered node, ORA ZRX will act as repeater regardless of the vendor in order to increase the reliability of the network.

  • Page 25: Device Installation

    INCLUSION/EXCLUSION THE DEVICE INTO/FROM A Z-WAVE NETWORK (classic) ORA ZRX and REBIS ZRX are compatible with all Z-Wave/Z-Wave Plus certified controllers. The devices support both the Network Wide Inclusion (which offers the ability to be included in a network, even if the device is not directly connected to the controller) and Standard Inclusion.

  • Page 26: Standard Inclusion (Inclusion/Exclusion)

    STANDARD INCLUSION (INCLUSION/EXCLUSION) Make sure that the motor is powered and possibly connected to an up/down button if you wish to use the wired programming sequence, or have a remote control already saved in the motor. Before starting the inclusion process, make sure that the motor is not already included in a Z-Wave network;...

  • Page 27: Smartstart Inclusion

    The SmartStart inclusion process only includes authenticated devices. ORA ZRX and REBIS ZRX can be added into a Z-Wave network by scanning the Z-Wave QR Code attached to the product with a controller providing SmartStart inclusion. No further action is required and the SmartStart product is added automatically within 10 minutes after being switched on inside the network range.

  • Page 28: Device Control

    - Opening the awning: press and release the DOWN button - Stop the awning: press and release the STOP button. ORA ZRX and REBIS ZRX can also be controlled by a wired button, both single and a double-action (up/down). With the single action button, the operation is as follows: - Each time the button is pressed/released, the motor will perform the following operations in sequence: Closing, Stopping, Opening, Stopping and so on.

  • Page 29: Controlling The Motor With A Z-Wave Controller

    CONTROLLING THE MOTOR WITH A Z-WAVE CONTROLLER ORA ZRX and REBIS ZRX can be controlled by any Z-Wave / Z-Wave Plus certified controller available in the market. In the figure below it’s shown how the device will appear once included into the WiDom Multi Sensor Room Controller.

  • Page 30: Reset To The Factory Settings

    RESET TO THE FACTORY SETTINGS The Z-Wave configuration of the ORA ZRX motor can be reset to the original factory values with the following programming sequence: 1) From the remote control: AB - AC - BC (4 seconds), wait for confirmation movements to be executed.

  • Page 31: Advanced Settings

    ADVANCED SETTINGS SUPPORTED COMMAND CLASSES Non-Secure Secure Command Class Version COMMAND_CLASS_ZWAVEPLUS_INFO COMMAND_CLASS_APPLICATION_STATUS COMMAD_CLASS_INDICATOR COMMAND_CLASS_ASSOCIATION COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION COMMAND_CLASS_ASSOCIATION_GRP_INFO COMMAND_CLASS_TRANSPORT_SERVICE COMMAND_CLASS_VERSION COMMAND_CLASS_MANUFACTURER_SPECIFIC COMMAND_CLASS_POWERLEVEL COMMAND_CLASS_CONFIGURATION COMMAND_CLASS_SECURITY_2 COMMAND_CLASS_SUPERVISION COMMAND_CLASS_FIRMWARE_UPDATE_MD COMMAND_CLASS_BASIC COMMAND_CLASS_WINDOW_COVERING COMMAND_CLASS_MULTILEVEL COMMAND_CLASS_NOTIFICATION COMMAND_CLASS_PROTECTION...

  • Page 32: Command_Class_Basic" Support

    “COMMAND_CLASS_BASIC” SUPPORT The device supports Indicator V3 with Indicator ID 0x50 (identity). “COMMAND_CLASS_INDICATOR” SUPPORT The device supports Indicator V3 with Indicator ID 0x50 (identity). When the device receives an indicator set, the motor will perform opening and closing movements of the awning. The number of movements will be a maximum of 15, with a minimum stroke time of 0.5 s, and a minimum pause time of 0.5 s.

  • Page 33: Command_Class_Notification" Control

    “COMMAND_CLASS_NOTIFICATION” CONTROL When the motor receives a System Notification, it reacts by opening/closing and setting the protection. The logic of processing notifications is as follows: Notification Event Code The meaning associate to the event 9 (Digital Input State) Wind above a threshold 10 (Digital Input State) Light above a threshold 11 (Digital Input State)

  • Page 34: Associations

    ASSOCIATIONS The device supports 4 association groups, each of which supports the association of up to 5 devices (nodes): Group Group N° max Description Command sent Name node Windows Covering report, Switch Multilevel report, Lifeline Life Line Group Device Reset Locally Notification, Notification Report The device in this group...

  • Page 35: Configurations

    CONFIGURATIONS SCENE ACTIVATION Parameter No. 30: OPEN_COLLISION_SCENE_ID (2 byte), simple. Scene ID sent if a collision is detected during opening operation. Configuration Result 0 (Default value) Do not send the scene activation From 1 to 254 The scene ID sent for the collision during opening Parameter No.
  • Page 36 Parameter No. 34: AUTOMATION_CONFIG (1 byte), advanced. The value of this parameter is the sum of Wind, Sun and Rain status. It can be used to set the automation status. Since Automation for Wind and Rain are always activated the only valid values are: 5 to disable the Sun automation 7 to enabled it.
  • Page 37 Il testo completo della dichiarazione di conformità UE è disponibile facendone richiesta sul sito: www.cherubini.it. EU DECLARATION OF CONFORMITY CHERUBINI S.p.A. declares that the product is in conformity with the relevant Union harmonisation legislation: Directive 2014/53/EU, Directive 2011/65/EU. The full text of the EU declaration of conformity is available upon request at the following website: www.cherubini.it.
  • Page 38 CHERUBINI S.p.A. Via Adige 55 25081 Bedizzole (BS) - Italy Tel. +39 030 6872.039 | Fax +39 030 6872.040 info@cherubini.it | www.cherubini.it CHERUBINI Iberia S.L. Avda. Unión Europea 11-H Apdo. 283 - P. I. El Castillo 03630 Sax Alicante - Spain Tel.

This manual is also suitable for:

Rebis zrx
