Tubular motor with automatic adjustment of the electronic limit switch
Hide thumbs Also See for Plug&Play Short RX:
Table of Contents

Advertisement

L
N
PE
E P
1
2 3

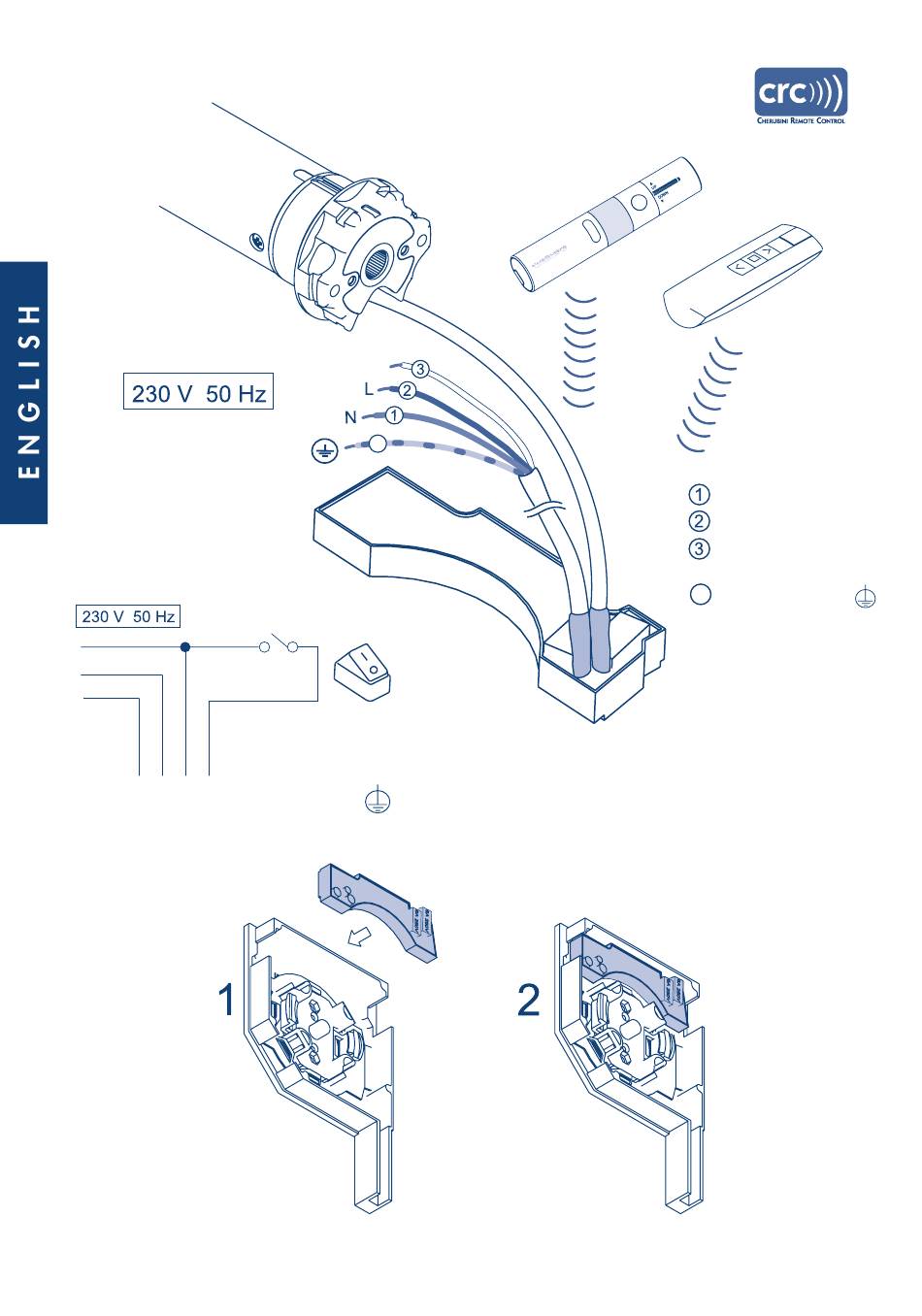

ELECTRICAL CONNECTIONS
AUX
PE
=
1 - NEUTRAL
2 - PHASE
3 - WIRED SWITCH (WHITE)
PE - EARTH
Series GIRO
24
Series SKIPPER
BLUE
BROWN
WHITE
(WIRED SWITCH)
PE
YELLOW-GREEN
