- To prevent any danger or malfunction, the size of electrical control components
connected to the motor must be compatible with the electrical features of the motor.
- Means for disconnection must be incorporated in the fixed wiring in accordance with
the national installation standards.
- The selectors inverting the direction of rotation of the motor must be provided with
mechanical interlocking.
- NEVER connect two or more selectors to the same motor.
- For outdoor use, provide the appliance with a supply cord with designation H05RN-F
containing at least 2% of carbon.
- To avoid short circuits, arrange an automatic bipolar switch with opening distance of
the contacts of at least 3 mm before the circuit.
- If not used, the white wire must be insulated. It is dangerous to touch the white wire
when the motor is powered.

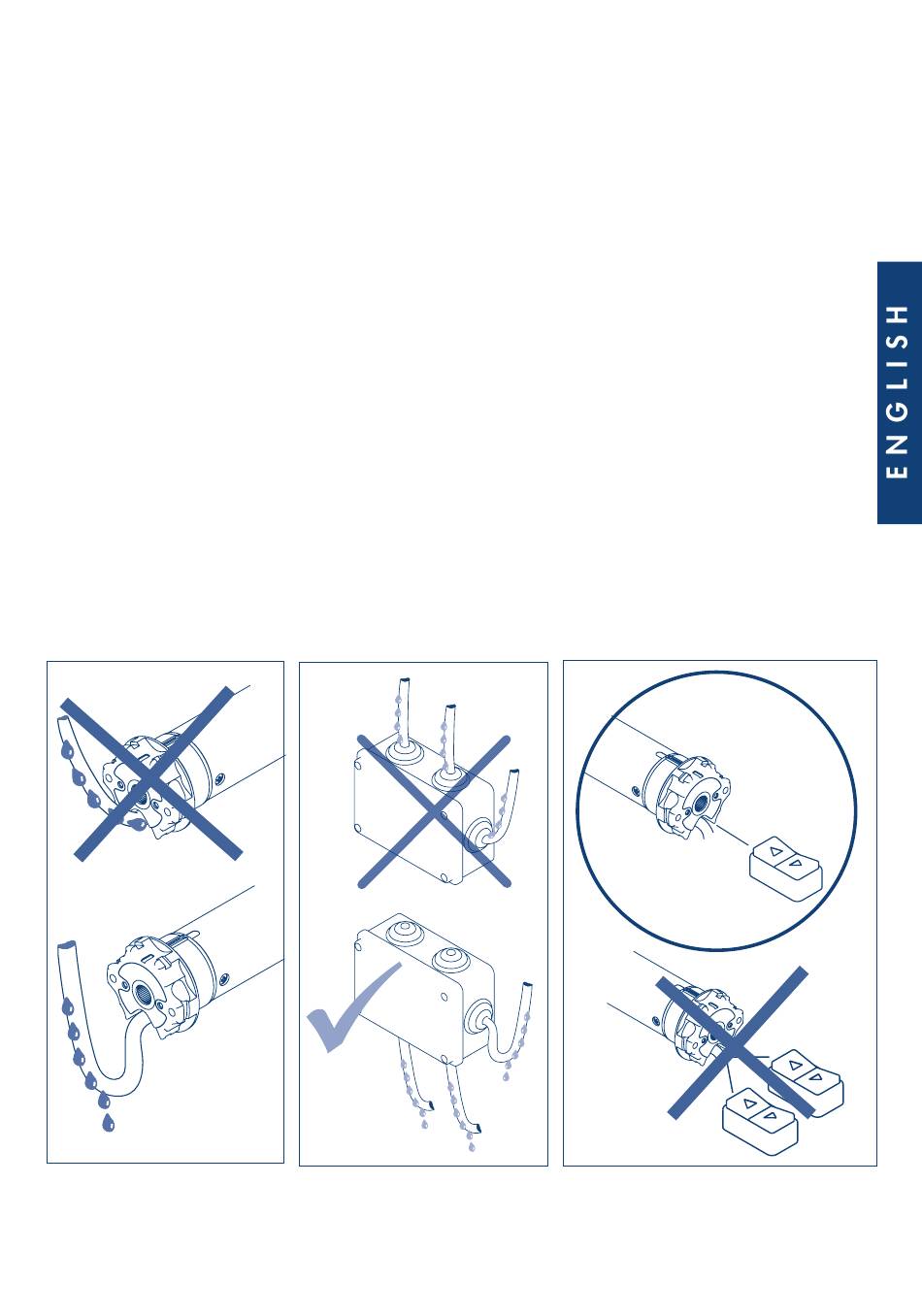

ELECTRICAL CONNECTIONS
