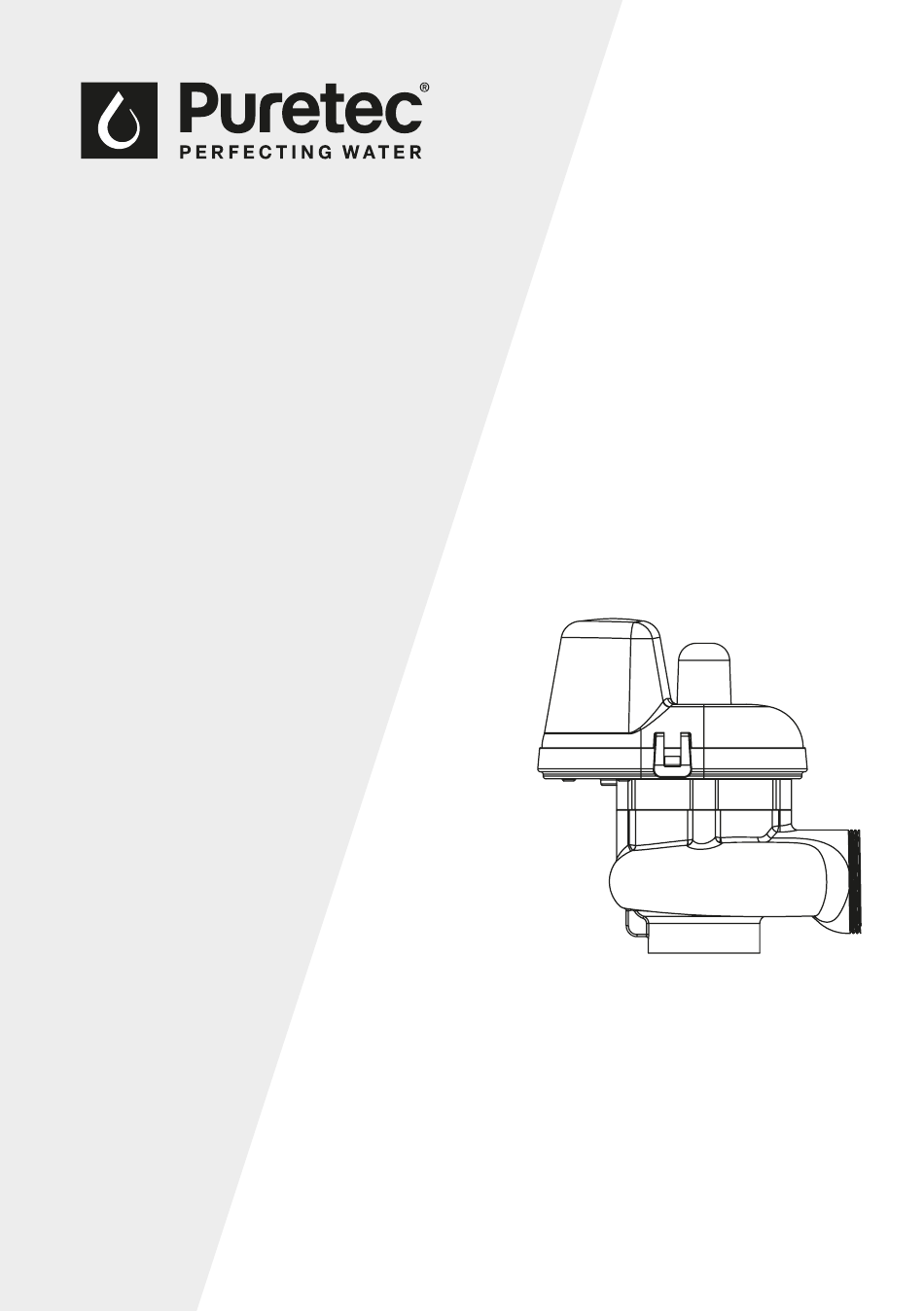

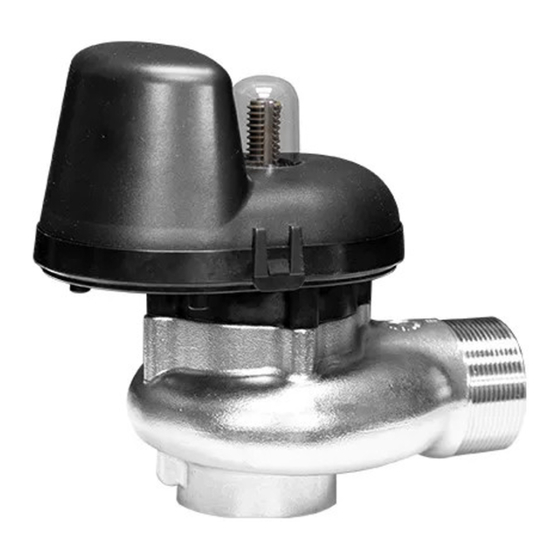

- Page 1 Installation Guide WTV7550 No Hard Water Bypass For correct operation & installation, it is essential to observe these instructions. MAR2021...
-
Page 2: Parts Included
Thank you for purchasing a Puretec No Hard Water Bypass. Your bypass is a proven performer manufactured from only quality materials and components. The WTV7550 No Hard Water Bypass can be used to provide a no hard water bypass during a regeneration = nHbP Please follow the initial installation guidelines carefully. -
Page 3: Installation
Note: If the control valve enters into an error state during the regeneration mode, the no hard water bypass vale will remain in its current state until the error is corrected and reset. Copyright © Puretec Pty Ltd 2020 WTV7550 | No Hard Water Bypass... - Page 4 3. Remove the cover from the control valve. Pull out the release tabs located on each side of the cover and pull cover off. 4. Diconnect power and meter cables from the PC Board. Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
- Page 5 7. Re-install the drive bracket assembly and re-connect any disconnected wires back to the proper location on each PC Board. Copyright © Puretec Pty Ltd 2020 WTV7550 | No Hard Water Bypass...
- Page 6 10. Thread the NHBP cable through the backplate and connect to the two pin connector labelled MAV on the PC Board. Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
- Page 7 2. Preset to default. Press NEXT to go to step 3. STEP 7CS STEP 7CS STEP 7CS STEP 8CS STEP 8CS Copyright © Puretec Pty Ltd 2020 WTV7550 | No Hard Water Bypass STEP 8CS STEP 3CS STEP 3CS STEP 3CS...
- Page 8 5. Preset to default. Press NEXT to go to step 6. STEP 5CS STEP 12CS RETURN TO NORMAL MODE STEP 6CS 6. Preset to default. Press NEXT to go to step 7. STEP 5CS RETURN TO NORMAL MODE STEP 7CS Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
- Page 9 10. Preset to default. Press NEXT to go to step 11. STEP 12CS STEP 12CS STEP 12CS STEP 12CS STEP 5CS Copyright © Puretec Pty Ltd 2020 WTV7550 | No Hard Water Bypass RETURN TO NORMAL MODE RETURN TO NORMAL MODE STEP 12CS...
- Page 10 Note: If programming is done prior to completing the installation steps, the valve will go into ERROR and clear the programming. 13. Unit is now programmed for a no hard water bypass during a regeneration. 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2020...
-
Page 11: Advanced Programming
- Immediately after 10 minutes of no water usage when the volume capacity reaches 0 (zero). Copyright © Puretec Pty Ltd 2020 WTV7550 | No Hard Water Bypass...
