Enttec DATAGATE MK2 Quick Start Manual

Box Contents

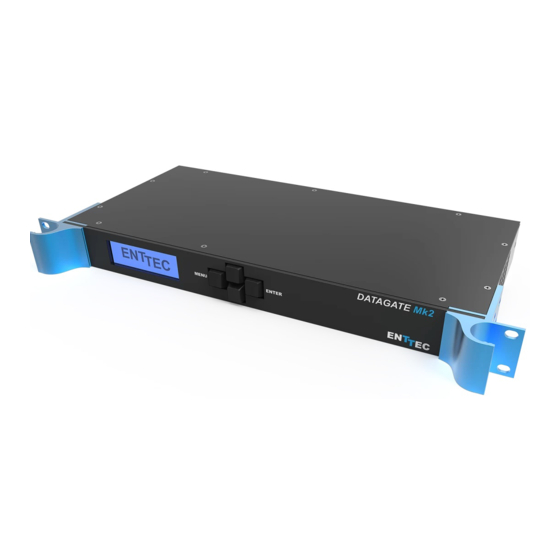

Datagate Mk2 (pn: 70044 or 70045)
•
• Straight connect Ethernet lead (pn:79102)
IEC power cord (country dependent plug)
•
• This User manual
Features
• 8 DMX ports isolated up to 1500V
• Gigabit Ethernet Connection
LCD display provides network and status
•
information
DMX refresh rate configurable for each DMX port
•
(1Hz to 44Hz) default is 35Hz.
• Break time/MAB configurable for each DMX port
• All configurations are made through web
browser and saved as Profiles.
• Graphical User Interface for creating and editing
ports is flow-chart oriented and documents data
flow as you configure it.
• OSC support
• DMX Generator and Stream snapshot feature
(web)
DATAGATE MK2
( P N 7 0 0 4 4 O R 7 0 0 4 5 )
• Supports numerous protocols for DMX over
Ethernet:
◦ ESP
◦ Art-Net
◦ KiNet (input only)
◦ sACN
Available in two models with one license each:
•
◦ 70044 (Ethernet License only)
◦ 70045 (Merging License only)
Additional Features (licenses)
• Stream Auditor: A status monitoring web-screen that
includes data throughput statistics, un-matched DMX
over Ethernet data streams (streams that are not
included in the current profile), and other information
for troubleshooting, available through web page
Merging:
•
◦ HTP
◦ LTP
◦ A/B Priority
• RDM Tools (GET, SET DMX address, Identify Fixtures ...)
• RDM Sensors on enabled fixtures (temperature, faults,
lamp hours ....)
• D-PRO Playback (1 universe only)
Quick Start Manual
MANUAL-DATAGATE
for more information, visit:
www.enttec.com/datagate
