KOMFORT ZONE KIT
#KZK-045
For use with the Bellingham-44

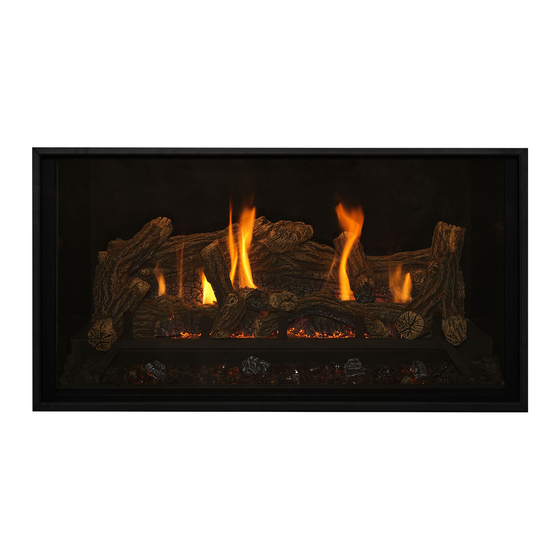

Direct Vent Gas Fireplace
English and French installation manuals are available through your
local dealer. Visit our website www.kozyheat.com.
Les manuels d'installation en français et en anglais sont disponibles
chez votre détaillant local. Visitez www.kozyheat.com .
1.0 INTRODUCTION .......................................................................3
1.1 Kit Contents.......................................................................................... 3
1.2 Fireplace Preparation ........................................................................ 3
1.3 Suggested Configurations .............................................................. 4
1.4 Dimensions and Overview ............................................................. 5
1.5 Air Duct Run ......................................................................................... 6
2.0 FRAMING AND CLEARANCES ................................................7
2.1 Clearance to Sprinkler ...................................................................... 7
2.2 Framing.................................................................................................. 8
2.3 #KZK-045 Clearances ........................................................................ 9
3.0 FACING AND FINISHING .......................................................10
3.1 Non-combustible Requirements ................................................10
3.2 Combustible Finish ..........................................................................11
3.3 Hearth and Mantel Clearances ....................................................13
4.0 INSTALLATION .......................................................................14
Hussong Manufacturing Co., Inc.
P.O. Box 577, 204 Industrial Park Drive
Lakefield, MN 56150-0577, USA
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
HUSSONG MANUFACTURING CO., INC.
READ ALL THESE STEPS
BEFORE STARTING INSTALLATION.
LEAVE THESE INSTRUCTIONS WITH THE
APPLIANCE.
This kit must be installed by a qualified installer,
service agency, or gas supplier at the time of
the heater installation. These instructions must
be used in conjunction with the installation and
operation manual provided with the appliance.
Please read the appliance owner's manual
completely before performing any procedures in
these instructions.
This optional convection duct kit redistributes the
warm air flow away from the fireplace opening to
a more desirable location using natural convection
without the use of a fan. The warm air flow may be
relocated to a position higher up the wall, out the
sidewalls, or even to an adjacent room. The result
is much cooler wall temperatures above the fire-
place opening for locating televisions, artwork, etc.
Rev. 1, 8/20
Advertisement
Chapters
Table of Contents
Related Manuals for kozy heat KOMFORT ZONE KIT
Summary of Contents for kozy heat KOMFORT ZONE KIT
-
Page 1: Table Of Contents
KOMFORT ZONE KIT #KZK-045 For use with the Bellingham-44 HUSSONG MANUFACTURING CO., INC. Direct Vent Gas Fireplace INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference. English and French installation manuals are available through your READ ALL THESE STEPS local dealer. -
Page 3: Introduction
Figure 1.1, #KZK-045 #KZK-410-6 Figure 1.3, Stand-off Assembly Installation (4) - 10’ x 6” (aluminum ex) listed to UL-181Class 0 Air Duct Figure 1.2, #KZK-410-6 Komfort Zone Kit #KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces INTRODUCTION 3... -
Page 4: Suggested Configurations
1.3 Suggested Configurations #KZK-045 front wall outlet #KZK-045 rear wall outlet #KZK-045 corner installation Figure 1.4, #KZK-045 Suggested Configurations 4 INTRODUCTION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Komfort Zone Kit #KZK-045 R.1... -
Page 5: Dimensions And Overview
½ ” (38mm) ¾ ” (19mm) stando stando 6” ¼ ¾ ¼ 4” ” ” ” (152mm) (101mm) (210mm) (425mm) (210mm) Figure 1.5, #KZK-045 Dimensions Komfort Zone Kit #KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces INTRODUCTION 5... -
Page 6: Air Duct Run
WHEN INSTALLING AIR DUCT PIPE MAINTAIN A MINIMUM 4" VERTICAL RISE FOR EVERY 12" HORIZONTAL RUN Minimum bend radius=6” (152mm) 4” (102mm) 12” (304mm) Figure 1.6, Minimum Vent Pipe Run 6 INTRODUCTION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Komfort Zone Kit #KZK-045 R.1... -
Page 7: Framing And Clearances
60” min (1524mm) ½ ” min Ceiling sprinkler head (89mm) Figure 2.1, KZK Clearance to Sprinkler Komfort Zone Kit #KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FRAMING AND CLEARANCES 7... -
Page 8: Framing
” (1463mm) (1175mm) 22” ¼ ” (558mm) (1175mm) Dimensions re ect minimum replace enclosure height Figure 2.3, BHM-44 Unit Wall Enclosure Rough Opening 8 FRAMING AND CLEARANCES Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Komfort Zone Kit #KZK-045 R.1... -
Page 9: Kzk-045 Clearances
The combustible KZK support framing is the only combustible framing support allowed within the enclosure Figure 2.5, #KZK-045 and BHM-44 Framed Opening and Clearances Komfort Zone Kit #KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FRAMING AND CLEARANCES 9... -
Page 10: Facing And Finishing
” (1148mm) ⁄ ” (633mm) ½ ” (1130mm) ½ ” (63mm) Non-combustible material only Combustible material allowed Figure 3.1, Minimum Non-combustible Finishing Dimensions 10 FACING AND FINISHING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Komfort Zone Kit #KZK-045 R.1... -
Page 11: Combustible Finish
Combustible material up to 1” (25mm) thick Discharge trim ⁄ ” (124mm) Figure 3.3, Combustible Finish Material up to 1" Thick Komfort Zone Kit #KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FACING AND FINISHING 11... - Page 12 Non-combustible material Finishing edge Figure 3.5, #KZK-045 Combustible Wall Finish 12 FACING AND FINISHING Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Komfort Zone Kit #KZK-045 R.1...
-
Page 13: Hearth And Mantel Clearances
6” (152mm) Top nishing edge 25” (635mm) ½ ” (699mm) ½ ” Bottom (64mm) nishing edge 14” (356mm) Figure 3.6, Hearth and Mantel Clearances Komfort Zone Kit #KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FACING AND FINISHING 13... -
Page 14: Installation
Use metal strapping (not supplied) as required to further secure Figure 4.4,Trim Installation the plenum to framing. 14 INSTALLATION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Komfort Zone Kit #KZK-045 R.1... - Page 16 KIT KOMFORT ZONE nº KZK-045 Pour utiliser avec le foyer au gaz à évacuation HUSSONG MANUFACTURING CO., INC. directe Bellingham 44 nº BHM-44 INSTALLATEUR : Laissez ce manuel avec l’appareil. PROPRIÉTAIRE : Conservez ce manuel pour le consulter. English and French installation manuals are available through your LISEZ TOUTES CES ÉTAPES local dealer.
-
Page 18: Introduction
(4) - section de 10 pieds x 6 po conduit exible (aluminium) homolgué UL-181, Conduit d’air De Classe 0 Figure 1.2, Item no KZK-410-6 Kit Komfort Zone nº KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces INTRODUCTION 3... -
Page 19: Configurations Suggérées
1.3 Configurations suggérées KZK-045 sortie mural avant KZK-045 sortie mural avant KZK-045 installations dan un coin Figure 1.4, Configurations suggérées du KZK-045 4 INTRODUCTION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kit Komfort Zone nº KZK-045 R.1... -
Page 20: Dimensions Et Vue D'ensemble
” (19mm) dégagement espaceur de 6” ¼ ¾ ¼ 4” ” ” ” dégagement (152mm) (101mm) (210mm) (425mm) (210mm) Figure 1.5, Dimensions du KZK-045 Kit Komfort Zone nº KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces INTRODUCTION 5... -
Page 21: Installation Des Conduit D'air
LES CONDUITS D’AIR DOIVENT ÊTRE INSTALLÉS AVEC UNE ÉLÉVATION VERTICALE MINIMALE DE 4 PO (10 CM) À TOUS LES 12 PO (30 CM) DE COURSE HORIZONTALE 4” (102mm) 12” (304mm) Figure 1.6, Installation de conduits d'air de longueur minimale 6 INTRODUCTION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kit Komfort Zone nº KZK-045 R.1... -
Page 22: Encadrement Et Dégagements
à votre installation. 60” min (1524mm) ½ ” min Tête de gicleur au plafond (89mm) Figure 2.1, Dégagement au gicleur du kit KZK Kit Komfort Zone nº KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces ENCADREMENT ET DÉGAGEMENTS 7... -
Page 23: Encadrement
” (108mm) 88” (2235mm) 88” ⁄ ” (2235mm) ¼ ” (1463mm) (1175mm) 22” ¼ ” (558mm) (1175mm) Figure 2.3, Encadrement et dégagement 8 ENCADREMENT ET DÉGAGEMENTS Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kit Komfort Zone nº KZK-045 R.1... -
Page 24: Dégagements D'encadrement
Le support d'encadrement combustible de KZK est le seul support d’encadrement combustible autorisé à l'intérieur de l'enceinte Figure 2.5, Dégagements et dimensions minimum d'encadrement de plénum Kit Komfort Zone nº KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces ENCADREMENT ET DÉGAGEMENTS 9... -
Page 25: Façade Et Finition
(633mm) ½ ” (1130mm) ½ ” (63mm) Matériaux incombustibles Matériaux combustible seulement permis Figure 3.1, Dimensions minimales des matériaux incombustibles de finition 10 FAÇADE ET FINITION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kit Komfort Zone nº KZK-045 R.1... -
Page 26: Matériaux De Finition Combustibles
¾ ” Figure 3.2, Revêtement en matêriau combustible (70mm) Figure 3.4, Finition de l’ouverture de sortie d’air en matériaux incombustibles Kit Komfort Zone nº KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FAÇADE ET FINITION 11... - Page 27 être installée par dessus le panneau de ciment Matériau incombustible Bord de nition du foyer Figure 3.5, Matériaux de finition murale combustibles avec le KZK-045 12 FAÇADE ET FINITION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kit Komfort Zone nº KZK-045 R.1...
-
Page 28: Dégagements De L'âtre Et Du Manteau
(635mm) ½ ” (699mm) ½ ” Bord de nition (64mm) du foyer 14” (356mm) Figure 3.6, Dégagements de l’âtre et du manteau Kit Komfort Zone nº KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces FAÇADE ET FINITION 13... -
Page 29: Installation
NOTE: Les brides de fixation ne sont pas conçues pour supporter le poids du plénum et des conduits. Installez des 14 INSTALLATION Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces Kit Komfort Zone nº KZK-045 R.1... - Page 30 KZK-045 est optionnelle, tout dépendant du choix des matériaux de finition. 10. Continuez l’installation du foyer. Figure 4.4, Installation de la garniture de sortie d’air du plénum Kit Komfort Zone nº KZK-045 R.1 Hussong Mfg. Co., Inc. • Kozy Heat Fireplaces INSTALLATION 15...
