Manrose WF100P Installation Instructions

INSTALLATION INSTRUCTIONS
WINDOW FAN (WF100P)
Thank you for selecting a Manrose WF100 Fan. Please read all instructions before commencing installation.
SIDE ELEVATION OF FAN FITTED IN WINDOW
CABLE
COVER STRIP OVER
P.C.B. CONTROLS
FRONT
COVER
INSIDE KITCHEN
INSIDE
FAN CHASSIS
NOTE: Do not install within a shower cubicle, see our website for shower fan options.
Take care - glass has very sharp edges.
The fan is to be installed so that the blades are more than 2.1m above the floor.
1. Cut a 115mm diameter hole in the glass. This is best cut by a qualified glazier, or alternatively measure
your window and get a new piece of glass with a precut hole from a glass merchant and replace.
2. Remove the internal front cover by removing the two small screw caps and removing the two small
screw beneath.
3. Remove the two screws that are fitted next to where the front cover is secured onto the main
chassis (the part that holds the motor) and then slide out the external shutter assembly away from
the chassis).
4. Ensure that the rubber gasket is in place around the flange with the join at the bottom, then hold
the shutter assembly (the part with 3 flaps) over the outside of the hole and replace the two
securing screws from the inside (do not over tighten). Refit the front cover and replace screw caps.
5. Not suitable for double glazed windows.
ELECTRICAL
These fans are double insulated and do
not require an earth. All wiring must comply
with national wiring rules. The fan must not
be accessible to a person using either the
shower or the bath.
Specifications
Electrical: 220 - 240V ~ A.C. 50Hz
3
Airflow: 23 l/s (85m
Max Temp: 40°C
Fan Wattage: 20W
IP Rating: IP24
Single phase consuming 20 watts.
WINDOW
GLASS
BACK
COVER
FIXING
SCREWS
THROUGH
GLASS
INTO BACK
COVER
BLACK GASKET SEAL
/hr)

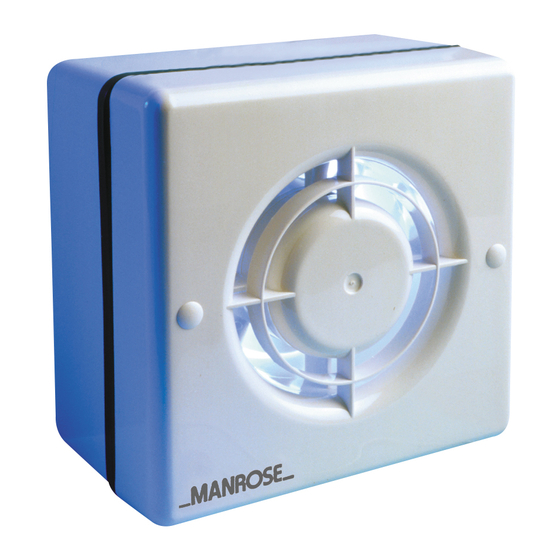

The WF100P fan for window fixing
comes complete with integral
pullcord switch and has built-in
external backdraft shutters.
It fits into a standard 115-155mmØ
hole and includes 1m of 2 core cable.
GRAVITY
FLAPS
OUTSIDE
VIEW OF FAN WITH COVER REMOVED
PULLCORD MODEL
TWO FIXING SCREWS
C L A S S I C S E R I E S
CABLE
