Manrose FAN7180 Manual

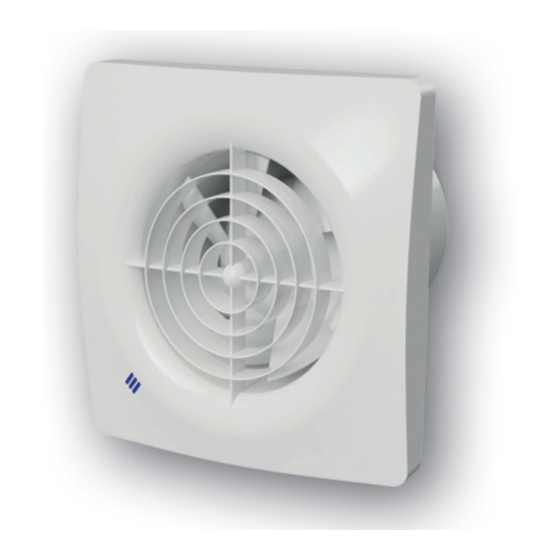

QUIET 125mm Extraction Fan

SPECIFICATIONS

Max.
Max. Free Air Fan Performance
Duct Fan
Fan Watts
(mm) Pressure
(W)
(Pa)
125 15 68
Compliance: AS/NZS60335-2.80:2016
WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE
FOLLOWED TO REDUCE THE RISK OF PROPERTY DAMAGE OR PERSONAL INJURY.
ALL ELECTRICAL WORK MUST BE CARRIED OUT BY A REGISTERED ELECTRICIAN IN
CAUTION
• Before use, please check that the supply voltage and that of the appliance are the same (see product rating label).
• All wiring and wiring connections must comply with all current national wiring rules and regulations including AS/NZS3000:2018, or latest
edition thereof.
• Any changes or modifi cations made or attempted to this product, without the prior written approval of the manufacturer, will void any and all
stated warranties.
• This fan is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they are capable of, and have been given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
• Precautions must be taken to avoid the back fl ow of combustion gases from the open fl ue of gas or other fuel-burning appliances in the room,
or from other rooms. These gases can potentially result in carbon monoxide poisoning. Open fl ued gas appliances should be tested by a
competent person, after fan installation, to ensure that back fl ow of combustion gases does not occur.
WARNING
• Do not insert or allow foreign objects to enter any ventilation openings, as this may cause an electric shock, fi re or damage to the fan.
• Do not put fi ngers or foreign objects into the grille while in operation.
• To prevent overheating of this fan, keep the air inlets and outlets clean and free of anything that may cause blockage. Check all inlets and
outlets from time to time to ensure it is clear of any dirt or dust accumulation. DO NOT COVER.
• Do not use it in areas where gasoline, paint, or fl ammable liquids are used or stored.
• This product contains recyclable materials. Do not dispose of this product as unsorted council waste. Please contact your local council for the
nearest collection point.
Installation Instructions
enquiry@manrose.co.nz | www.manrose.co.nz
Specific
Fan
Power
3
(l/s) (m /hr)
(W/l/s)
54 194 0.28
ACCORDANCE WITH THE LATEST WIRING RULES AS/NZS3000.
Specifi cations are subject to change without notice
Mounting
Wall or Ceiling
These axial fans are designed for easy installation, low running noise
and effi cient operation.
For best results, Simx recommend this product for bathrooms.
In bathroom installations, do not install the fan, laterally, any closer
than 1.5m from the steam source.
Once installed, following these instructions, this product will meet the
Healthy Homes Standard for bathroom and kitchen installations in a
rental property.
This product will also comply with the G4 Building Code for
bathrooms.
Operating
Sound IP
Temperature
dB(A) Rating
(max.)
38 40°C IPX4
Switching
Standard
Timer
Humidity Control
DIMENSIONS
B
A
A
Product Code
FAN7180
FAN7181
FAN7182
C
A 187
B 29
C 100
D
D 120
Page 1
Distributed by Simx Limited
