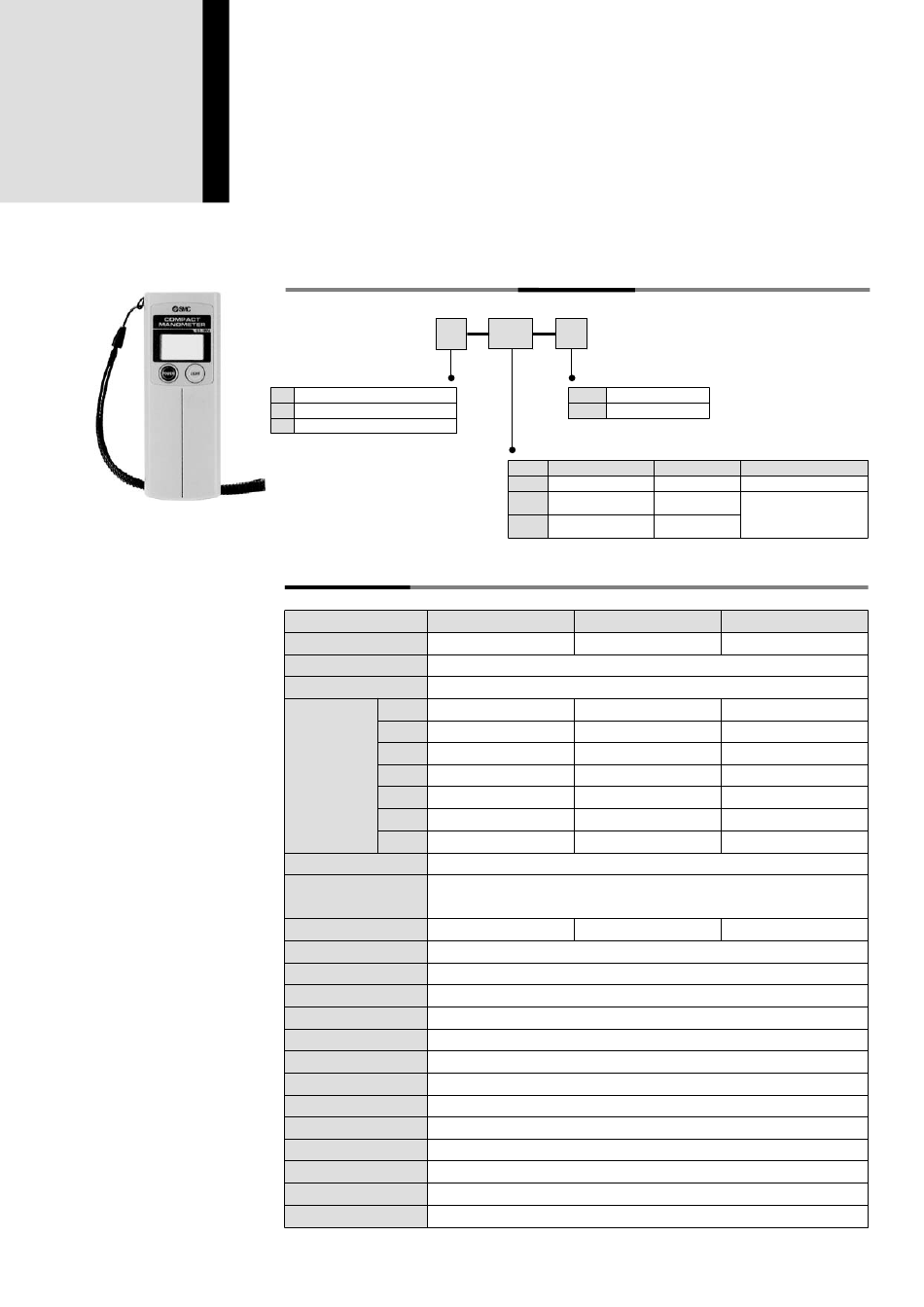

How To Order; Specifications - SMC Networks PPA Series Manual

Compact
Manometer
1
Series
PPA100 ⋅101 ⋅102
PPA10
Pressure specification
– 0.1 to 1MPa(for high pressure)
0
– 101 to 10kPa(for vacuum)
1
– 10 to 100kPa(for low pressure)
2

Specifications

Model
Rated pressure range
Pressure display
Pressure display discrimination
kPa
MPa
mmHg
kgf/cm
Minimum
display units
inHg
PSI
bar
Error display
Functions
Withstanding pressure
Fluids
Power supply
Battery life
Response speed
Display accuracy
Repeatability
Temperature characteristics
Piping port
Ambient operating temperature
Ambient operating humidity
Shock resistance
Enclosure
Weight
Note) 2 pcs. of type AA dry batteries (manganese R6 or alkaline LR6) are not included.
PPA

How to Order

0
Option/Case holder
Nil
B
One-touch fitting type
Symbol Applicable tube size
Nil
04 ø4 (mm size)
06 ø6 (mm size)
PPA100 for high pressure
-0.1 to 1MPa
3 digit LCD with back light
–
0.01
–
2 0.1
–
1
0.1
Over pressure, Memory data error, Change battery sign
Peak/bottom display, Back light, Auto power OFF
Zero clear, Units display switching
1.5MPa
Air, Non-corrosive gases
3V(DC), type AA dry cell x 2 pcs.
12 months continuous operation (without back lighting)
±2% F.S. or less (temperature conditions: at 25°C)
±1% F.S. or less (temperature conditions: at 25°C)
±3% F.S. or less (0 to 50°C, with 25°C standard)
0 to 50°C (with no condensation)
35 to 85% RH (with no condensation)
100G in X, Y, Z directions, 3 times each
IP40 (IEC standard)
Approx. 100g(unit 50g, batteries 50g)
Without case
With PPA-B
One-touch fitting Applicable tube material
N/A N/A
KJH04-M5
KJH06-M5
PPA101 for vacuum PPA102 for low pressure
-101 to 10kPa -10 to 100kPa
1/100
1
–
5
0.01
0.2
0.1
0.01
200kPa
250ms
M5 x 0.8
N/A
Nylon
Soft nylon
Polyeurethane
1
–
–
0.01
–
0.1
0.01
200kPa
