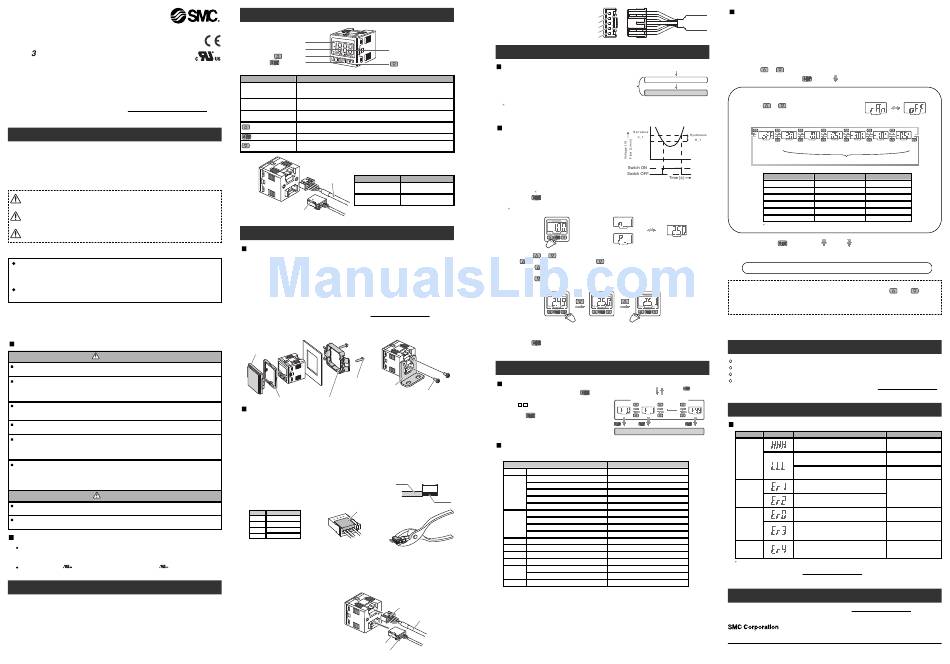

SMC Networks PFMV3 Series Operation Manual

Flow Monitor
Operation Manual
PFMV
Thank you for purchasing an SMC PFMV3 Series Flow Monitor.
Please read this manual carefully before operating the product and make sure you
understand its capabilities and limitations.
Please keep this manual handy for future reference.
To obtain more detailed information about operating this product,
please refer to the SMC website (URL http://www.smcworld.com) or
contact SMC directly.
Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or
equipment damage.
These instructions indicate the level of potential hazard with the labels of
"Caution", "Warning" or "Danger". They are all important notes for safety and must
be followed in addition to International standards (ISO/IEC) and other safety
regulations.
CAUTION indicates a hazard with a low level of risk which, if
Caution:
not avoided, could result in minor or moderate injury.
WARNING indicates a hazard with a medium level of risk
Warning:
which, if not avoided, could result in death or serious injury.
DANGER indicates a hazard with a high level of risk which, if
Danger:
not avoided, will result in death or serious injury.
Operator
This operation manual is intended for those who have knowledge of machinery
using pneumatic equipment, and have sufficient knowledge of assembly,
operation and maintenace of such equipment. Only those persons are allowed
to perform assembly, operation and maintenance.
Read and understand this operation manual carefully before assembling,
operating or providing maintenance to the product.
Safety Instructions
Warning
Do not disassemble, modify (including changing the printed circuit board) or repair.
An injury or failure can result.
Do not operate the product outside of the specifications.
Do not use for flammable or harmful fluids.
Fire, malfunction, or damage to the product can result.
Verify the specifications before use.
Do not operate in an atmosphere containing flammable or explosive gases.
Fire or an explosion can result.
This product is not designed to be explosion proof.
Do not use the product in a place where static electricity is a problem.
Otherwise it can cause failure or malfunction of the system.
If using the product in an interlocking circuit:
•Provide a double interlocking system, for example a mechanical system.
•Check the product regularly for proper operation.
Otherwise malfunction can result, causing an accident.
The following instructions must be followed during maintenance :
•Turn off the power supply
•Stop the air supply, exhaust the residual pressure and verify that the air is released before performing
maintenance work
Otherwise an injury can result.
Caution
Do not touch the terminals and connectors while the power is on.
Otherwise electric shock, malfunction or damage to the product can result.
After maintenance is complete, perform appropriate functional inspections and leak tests.
Stop operation if the equipment does not function properly or there is a leakage of fluid.
NOTE
The direct current power supply used should be UL approved as follows.
Circuit (of class 2) which is of maximum 30Vrms (42.4 V peak), with UL 1310
class 2 power supply unit or UL 1585 class 2 transformer.
The product is a approved product only if it has a mark on the body.
Maintenance
How to reset the product after a power cut forcible de-energizing
The setting of the product will be retained as it was before a power cut or de-energizing.
The output condition is also basically recovered to that before a power cut or de-energizing,
but may change depending on the operating environment.
Therefore, check the safety of the whole installation before operating the product.
Summary of Product parts
Front
LCD Display
Indicator LED (OUT1)
Indicator LED (OUT2)
button (UP)
button (SET)
button (DOWN)
Item Description
Displays the flow value, setting mode, and error indication.
LCD Display Four display modes can be selected: display always in red or green, or display
changing from green to red, or red to green, according to the output status (OUT1).
Indicates the output status of OUT1.
Indicator LED (OUT1)
LED is ON (Green) when OUT1 is ON.
Indicates the output status of OUT2.
Indicator LED (OUT2)
LED is ON (Red) when OUT2 is ON.
Selects the mode or increases the ON/OFF set value.
button (UP)
Press this button to change to the peak display mode.
Press this button to change to another mode and to set a value.
button (SET)
Selects the mode or decreases the ON/OFF set value.
button (DOWN)
Press this button to change to the bottom display mode.
Back
Power and output
lead wire and
Item Description
connector
Power and output lead Cable to supply power and
wire and connector transmit output signals.
Connector for sensor
Sensor connector
lead wire.
Sensor connector
Mounting and Installation
Installation
Panel mounting
•Fix the panel mount adapter to the product with the mounting screws (nominal size:
3 x 8 L, 2 pcs.) supplied.
•The monitor can be mounted on a panel with a thickness of 0.5 to 6.0 mm.
Bracket mounting
•Mount the bracket using the mounting screws (M3 x 5 L) supplied.
•The required tightening torque is 0.5 to 0.7 Nm.
•Install the product (with bracket) using the M4 screws (2 pcs.).
•Bracket thickness is approximately 1.6 mm.
Refer to the product catalogue or SMC website (URL http://www.smcworld.com) for more
information about panel cut-out and mounting hole dimensions.
Front protective
cover (option)
Mounting screw
Bracket
Mounting screw (M3 x 5 L)
Panel mount adapter (can be rotated 90 degrees for mounting).
Wiring
Wiring of connector
•Connections should only be made with the power supply turned off.
•Use separate routes for the product wiring and any power or high voltage wiring.
Otherwise, malfunction may result due to noise.
•Ensure that the FG terminal is connected to ground when using a commercially
available switch-mode power supply. When a switch-mode power supply is connected
to the product, switching noise will be superimposed and the product specification can
no longer be met. This can be prevented by inserting a noise filter, such as a line noise
filter and ferrite core, between the switch-mode power supply and the product, or by
using a series power supply instead of a switch-mode power supply.
Attaching the connector to the sensor wire
Cover more than 20 mm
•Strip the sensor wire as shown.
•Do not cut the insulator.
•Insert the corresponding wire colour shown in the table into the
pin number printed on the sensor connector, to the bottom.
Pin no. Wire colour A
1 Brown (DC+)
2 NC
3 Blue (DC−)
4 Black (IN (1 to 5 V))
•Check that the above preparation has been performed
correctly, then part A shown should be pressed in by hand to make temporary connection.
•Part A should then be pressed in using a suitable tool, such as pliers.
•The sensor connector cannot be re-used once it has been fully crimped.
In cases of connection failure such as incorrect order of wires or incomplete insertion,
please use a new connector.
•If the sensor is not connected correctly "LLL" or "HHH" will be displayed.
Connecting / Disconnecting
•When mounting the connector, insert it
straight into the socket, holding the
lever and connector body, and push the
Lever
connector until the lever hooks into the
housing, and locks.
•When removing the connector, press
down the lever to release the hook from
the housing and pull the connector
straight out.
Connector for sensor
lead wire
Lever
Power and output connector
pin numbers
DC(+) Brown 5
OUT1 Black 4
OUT2 White 3
Analogue output / External input Grey 2
DC(-) Blue 1
Flow Setting
Measurement mode
The mode in which the flow is detected
and displayed, and the switch function is
operating. This is the basic operating
mode; other modes should be selected for
set-point and other Function Setting changes.
: The display will indicate [LLL] if a sensor is not connected.
To use the product for flow rate indication, select the connected flow sensor using
function [F95] before setting any other functions.
Switch operation
When the flow (or voltage) falls below the set
value by the amount of hysteresis or more, the
switch will turn ON.
When the flow (or voltage) exceeds the set value,
the switch will turn OFF.
If this condition, shown to the right, is acceptable,
then keep these settings.
<Operation>
: The Product outputs will continue operating during setting.
1. Press the button in measurement mode to display the set values.
[P_1] or [n_1] and the set value are displayed in turn.
: [LLL] is displayed during measurement mode when the sensor is not connected.
PFMV V
Reversed output
Normal output
2. Press the or button to change the set value.
The button is to increase and the
•Press the button once to increase by one digit, or press it continuously to keep
increasing the set value.
•Press the button once to decrease by one digit, or press it continuously to keep
decreasing the set value.
PFMV V PFMV
3. Press the button to complete the setting of OUT1.
[n_2] or [P_2] will be displayed. Set as above.
Function Setting
Function selection mode
In measurement mode, press the button
for 2 seconds or longer, to display [F 0].
The [F ] indicates the mode for changing
each function setting.
Press the button for 2 seconds or longer
in function selection mode to return to
measurement mode.
Default setting
The default settings are provided as follows. If these settings are acceptable, retain for use.
Item
[F 0] Auto-preset
[oU1] Output mode (OUT1)
[1ot ] Reversed output (OUT1)
[F 1] [n_1] Input of set value (OUT1)
[H_1] Setting of hysteresis (OUT1)
Insulator
[CoL] Display colour
[oU2] Output mode (OUT2)
[2ot ] Reversed output (OUT2)
[F 2]
[n_2] Input of Set value (OUT2)
[H_2] Setting of hysteresis (OUT2)
[F 3] [rES] Response time
[F 4] [ inP] External input
[F 5] [Eco] Power saving mode
[F 6] [P in] Security code
[r An] Select connected sensor
[F95]
[Un i] Unit selection function
[F99] [ in i ] Reset to the default settings
Power and output
lead wire
and connector
[F95] Selection of flow indication
The flow rate can be displayed. The flow rate units can be selected (for models with unit
selection function) after selecting the connected sensor.
L/min. or CFM(ft 3 /min.) x 10
To use for flow rate indication, select the sensor and units before setting the functions
[F1], [F2], [F4].
The set values for [F1], [F2] and [F4] will be reset when the flow indication setting is
changed.
<Operation>
Power is supplied
Press the or
Press the
The product identification is displayed
approx.3 seconds
(the output remains off
for this period)
Measurement mode
Select connected sensor
[rAn] and the set value are displayed in turn.
Press the or
Voltage PFMV530
display
Connected sensor model
PFMV530
PFMV510
PFMV505
PFMV530F
PFMV510F
PFMV505F
Displayed in turn
: The set values of OUT1 and OUT2 will be reset when the flow range setting is changed.
Press the
button is to decrease the set value.
Selection of flow indication completed. Return to Function selection mode.
Standard value offset function
The display can be offset to the standard value by pressing the
V PFMV V simultaneously for 1 second or longer.
For the initial operation, always perform the standard value offset function with no flow
applied.
Other Settings
Standard value offset function
Peak/Bottom value display
Indicated content check function
Key lock function
Measurement mode
To set each of these functions, refer to the SMC website (URL http://www.smcworld.com)
Press the button
for more detailed information, or contact SMC.
for 2 seconds or longer
Function selection mode
Troubleshooting
Error indication
Function Setting
Error name Error display
Input voltage
flow error
Default setting
-
[HYS] Hysteresis mode
[1_n] Reversed output
Overcurrent
[2.50] (Voltage display)
error
[0.12] (Voltage display)
[SoG] ON: Green OFF: Red
[HYS] Hysteresis mode
[2_n] Normal output
System error
[2.50] (Voltage display)
[0.12] (Voltage display)
[.002] 2 msec.
Standard
[oFF] Unused
value offset
error
[oFF] Unused
[oFF] Unused : If the error cannot be reset after the above measures are taken, then please contact SMC.
[oFF] Unused
Refer to the SMC website (URL http://www.smcworld.com) for more information about
[LPm] L/min
troubleshooting.
[oFF] Unused
Specifications / Outline with Dimensions
Refer to the product catalogue or SMC website (URL http://www.smcworld.com) for more
information about the product specifications and outline dimensions.
Akihabara UDX 15F, 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021, JAPAN
Phone: +81 3-5207-8249 Fax: +81 3-5298-5362
Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
© 2011 SMC Corporation All Rights Reserved
-2 are the selectable display units.
button in function selection mode to display [F95].
button.
Displayed in turn
button to select.
Flow range Set value
PFMV510 PFMV505 PFMV530F PFMV510F PFMV505F
Flow display
Displayed flow range Rated flow range
3.0 L 0 to 3.0 [L/min]
1.0 L 0 to 1.0 [L/min]
0.5 L 0 to 0.5 [L/min]
-3.0 L -3.0 to 3.0 [L/min]
-1.0 L -1.0 to 1.0 [L/min]
-0.5 L -0.5 to 0.5 [L/min]
button to set. Move on to unit selection function
(for models with unit selection
function).
and buttons
Error type Troubleshooting method
The flow (input voltage) has exceeded the upper Reduce input voltage
limit of the display range. (= flow).
The flow (input voltage) is less than the lower Increase input voltage
limit of the display range. (= flow).
A sensor may be disconnected or wired Check the connection and
incorrectly. wiring of the sensor.
The switch output load current (OUT1) has
Turn off the power supply
exceeded 80 mA.
and remove the cause of
the over current. Then
The switch output load current (OUT2) has
supply the power again.
exceeded 80 mA.
The product has lost the factory adjustment Stop operation immediately
settings. The internal circuit may be damaged. and contact SMC.
System error. Turn the power off and turn
The product has failed to store the data, or the it on again, then repeat the
internal circuit may be damaged. Function Setting.
The standard value offset function has been Perform the standard value
performed outside the effective range for offset under no flow
correction. conditions.
URL http://www.smcworld.com
