Humanscale efloat one Assembly Instructions Manual page 9

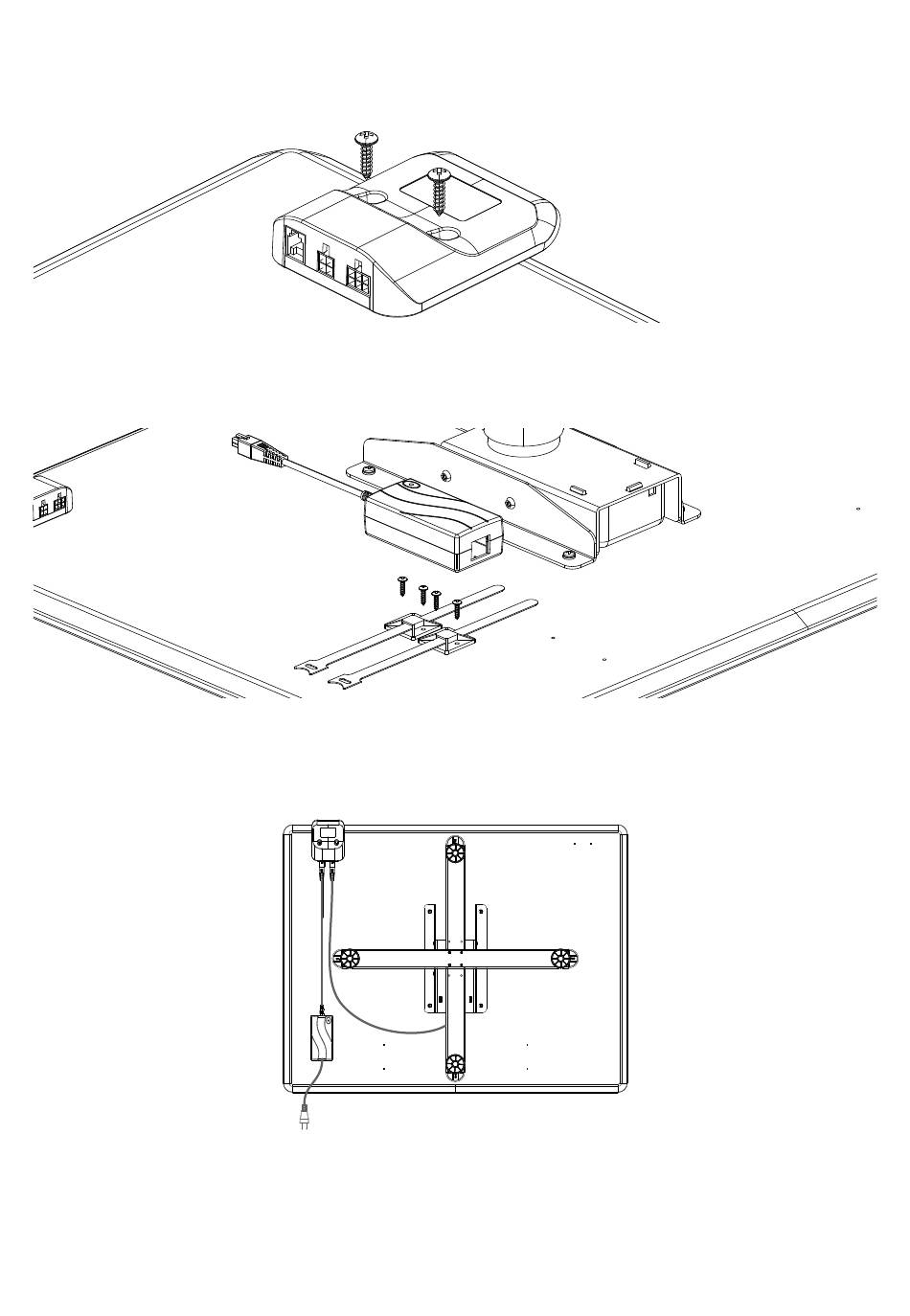

4
Secure the hand switch to the worksurface in your desired location using the (2) ST5 X 18, screw
along the front edge of worksurface� Pilot holes are positioned on the left/right hand side of the
worksurface in our recommended location(s)�
5
Secure the Power Supply to the worksurface in your desired location using the provided Cable
Straps� To secure the Cable Straps, peel and stick to desired location and secure with the (4) ST3�5
X 16 screws�
6
Plug the Leg Column into the hand switch� Connect the power supply to the hand switch� Plug the
power cord into the power supply� Use the provided Cable ties to secure cables to underside of
worksurface (not pictured), with either double sided tape or the (5) ST5 X 16 Screws�
7
Flip your Table right side up and plug into outlet� Reset the desk per instructions in following
section�
YOU MUST RESET THE DESK BEFORE USE. FOLLOW INSTRUCTIONS ON INITIAL SETUP/RESET
UNDER HAND SWITCH
9
