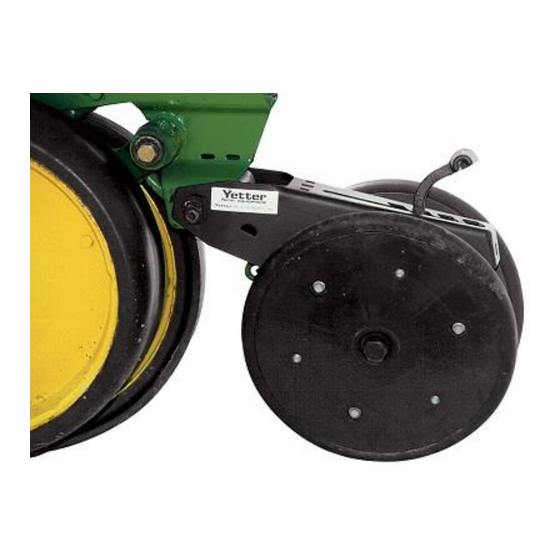

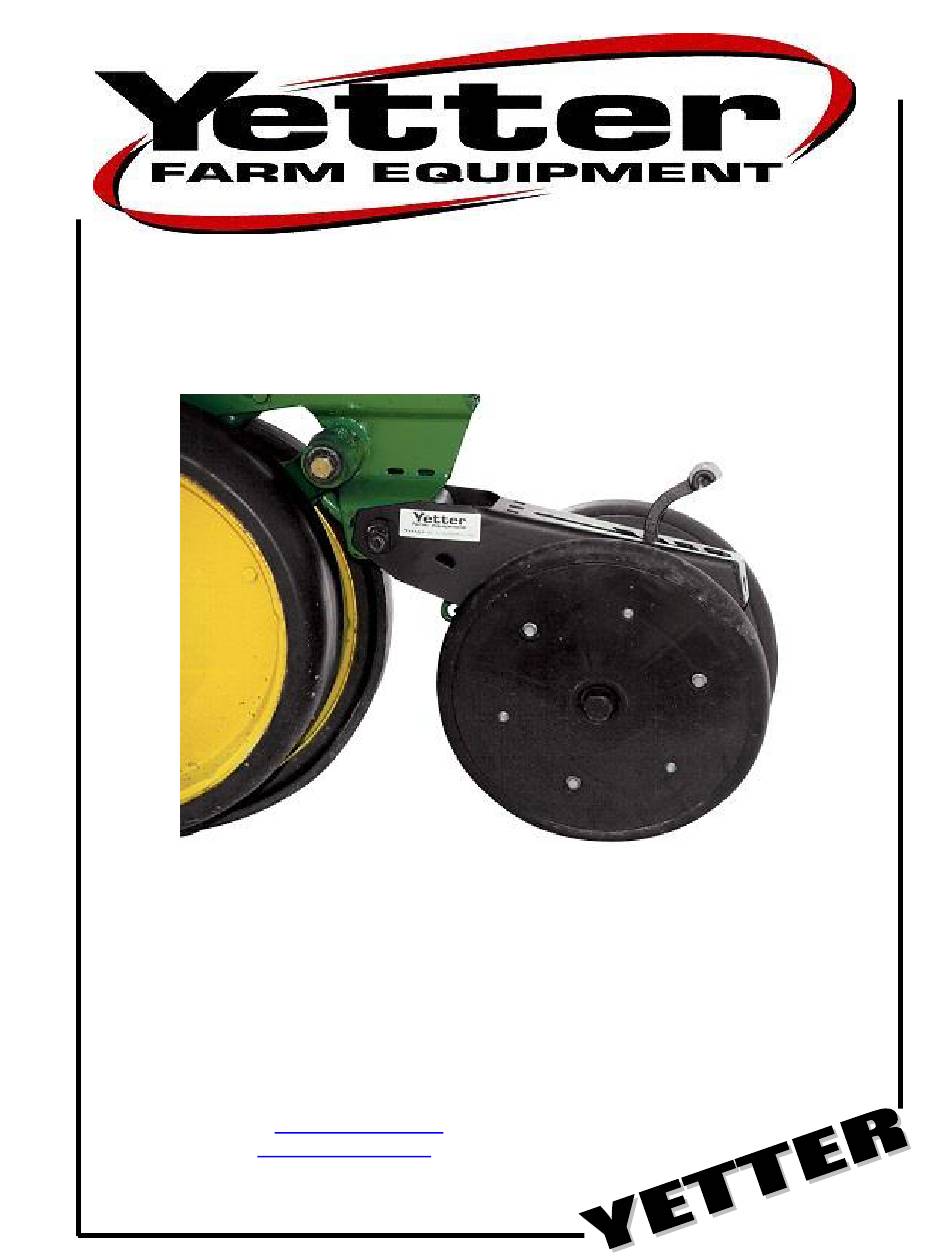

6000-002 CLOSE WHEEL ATTACHMENT ASSEMBLY 2565-402-REV-A ● 03/2020 YETTER MANUFACTURING CO. FOUNDED 1930 Colchester, IL 62326-0358 Toll free: 800/447-5777 309/776-3222 (Fax) Website: www.yetterco.com E-mail: info@yetterco.com...
Page 2
“V” CLOSING WHEEL ADJUSTMENT WARNING: Raise planter to transport position and install all safety locks before adjusting closing wheels. Angled closing wheels trail behind the seed opener to close the seed trench left by the opener. Adjusting spring pressure permits proper firming of the soil beside the seed rather than directly above it. An eccentric bushing allows centering the closing wheel on the row to properly apply pressure on both sides of the seed when closing the trench.
Page 3
LUBRICATION Oil the closing wheel bushings weekly with a general-purpose oil. (CLOSING WHEEL ASSEMBLY SHOWN NOT ASSEMBLED TO ROW UNIT FOR VISUAL CLARITY) ASSEMBLY & PARTS IDENTIFICATION ITEM PART # DESCRIPTION 5/16 – 18 X 1 ½ HHCS GR 5 ZP 2502-206 5/8 –...
