The software should now be installed, but the USB drivers may not have been loaded by the PC operating
system. The USB driver upload step completes when the ADCPro software is executed (see
Running the Software and Completing the Driver Installation).
7.2 Running the Software and Completing the Driver Installation
NOTE: The software is continually under development. These instructions and screen images are
current at the time of this writing, but may not exactly correspond to future releases.
ADCPro uses a series of software plug-ins to communicate with the ADS1675REF. The ADS1675REF
plug-in is included in the ADS1675REF package.
The program currently runs only on Microsoft Windows platforms of WindowsXP
supported.
Follow these procedures to run ADCPro and complete the necessary driver installation.
Step 1. Start the software by selecting ADCPro from the Windows Start menu. The screen in
appears.
SBAU162A – December 2009 – Revised September 2010
Submit Documentation Feedback

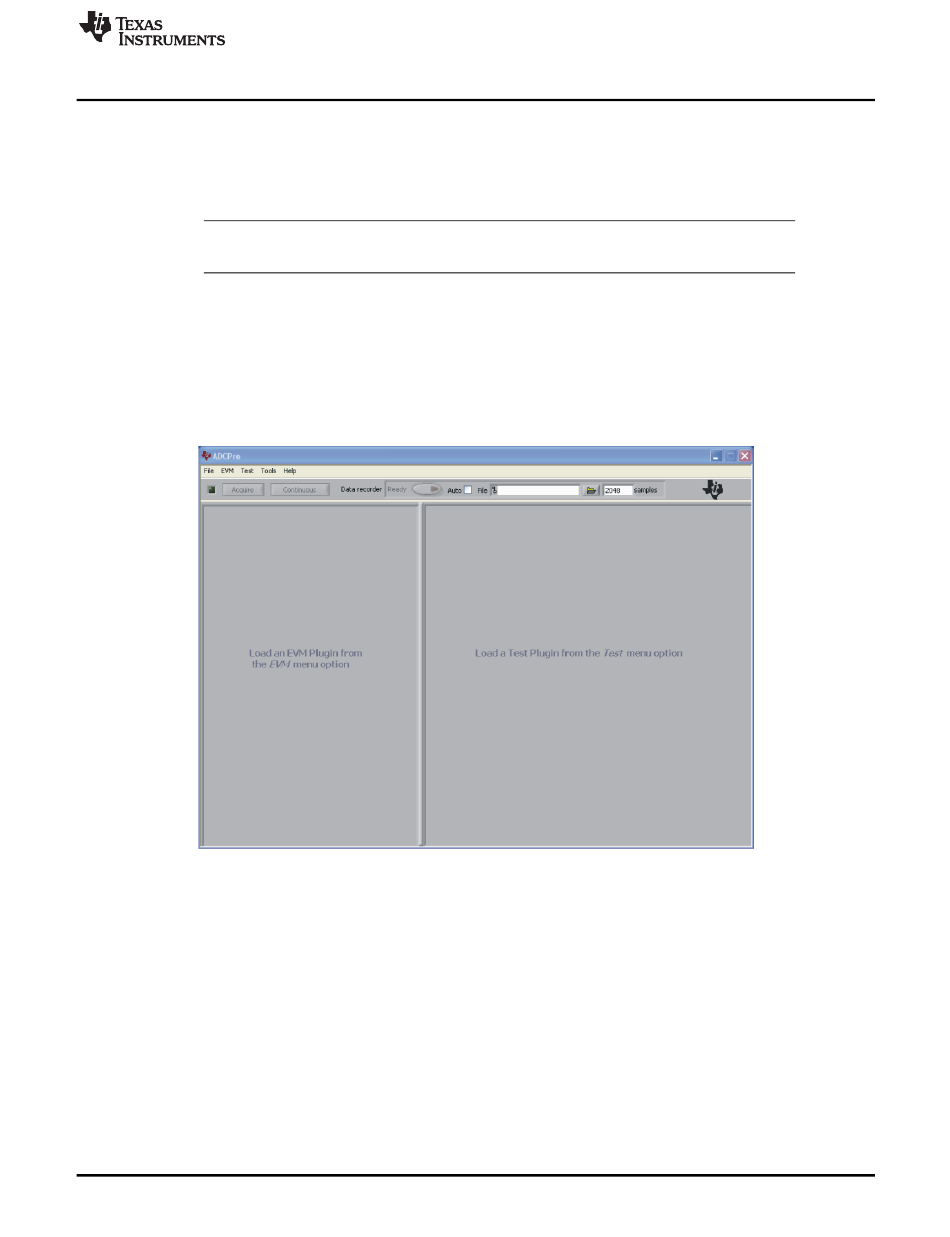

Figure 3. ADCPro Software Start-up Display Window
Copyright © 2009–2010, Texas Instruments Incorporated
ADS1675REF Plug-in Operation
Section 7.2,
; Windows Vista is not
® ®
Figure 3
ADS1675REF
