Item Quantity Value
38 7
39 4
40 1
41 1
42 1
43 1
44 1
45 1
46 0
SBAU162A – December 2009 – Revised September 2010
Submit Documentation Feedback
Table 3. ADS1675REF Bill of Materials (continued)
Reference Designators
TP1, TP2, TP3, TP5, TP7, TP9,
Test Point PC Mini .040"D Red
TP11
TP4, TP6, TP8, TP10 Test Point PC Mini .040"D Black
U1 IC Prec V-REF 2.5V LN 8-SOIC
U2 IC Prec V-REF 3.0V LN 8-SOIC
U3 IC Op Amp Diff 300MHz SGL 8SOIC
U4 IC ADC 24-Bit 4MSPS 64-TQFP
IC Op Amp GP R-R 80MHz SGL
U5
8MSOP
U6 IC Sngl 2-in pos-OR Gate SOT-5
U7 Not Installed

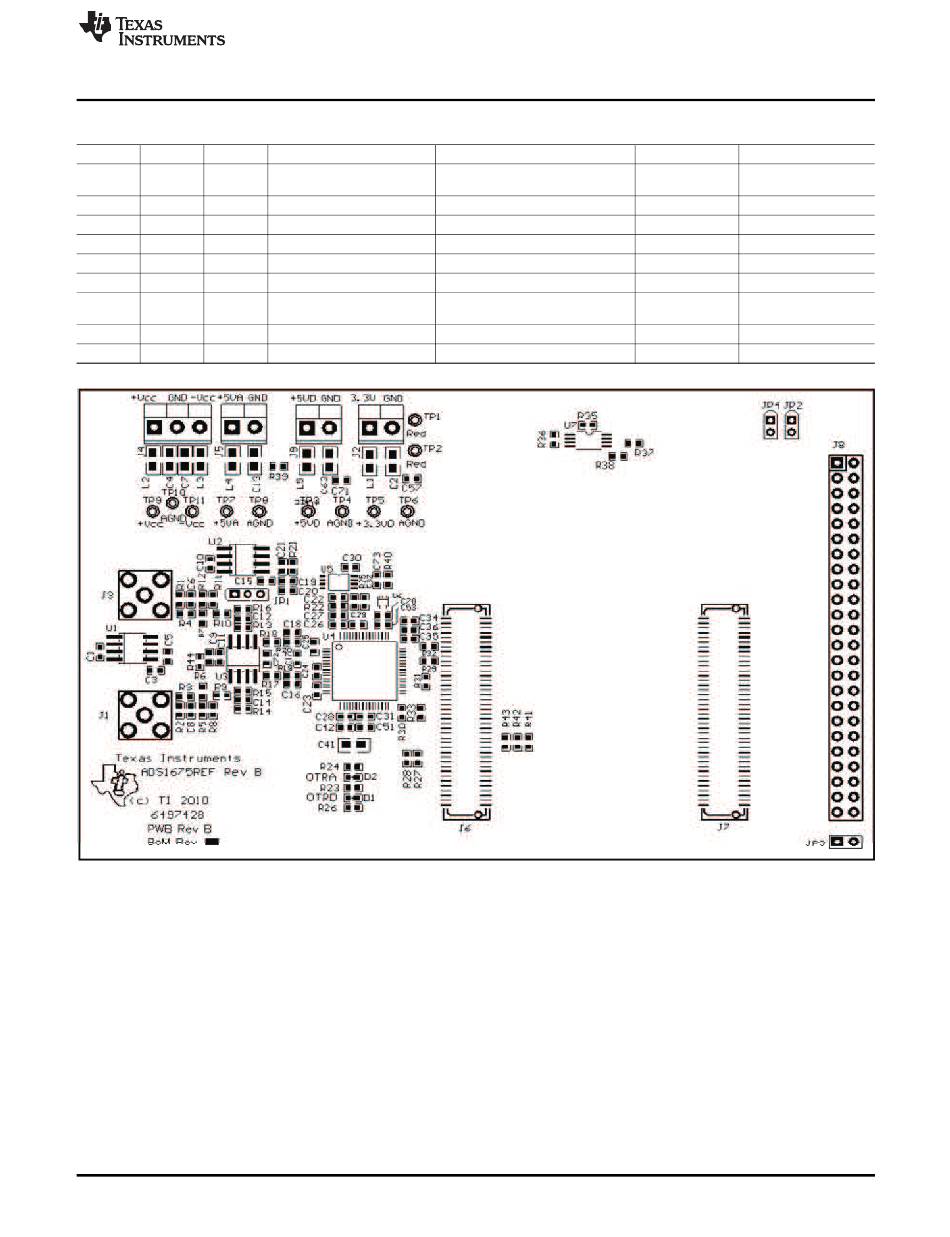

Figure 16. ADS1675REF Silkscreen Drawing
Copyright © 2009–2010, Texas Instruments Incorporated
Schematic and Bill of Materials
Description MFR
Keystone
Keystone
TI
TI
TI
TI
TI
TI
—
Part Number
5000
5001
REF5025ID
REF5030AID
THS4503ID
ADS1675IPAG
OPA211AIDGK
SN74AHC1G32DRLR
—
