ADS1675REF Plug-in Operation
Choose a test to run from the Test menu. In the example shown in
chosen.
14
ADS1675REF

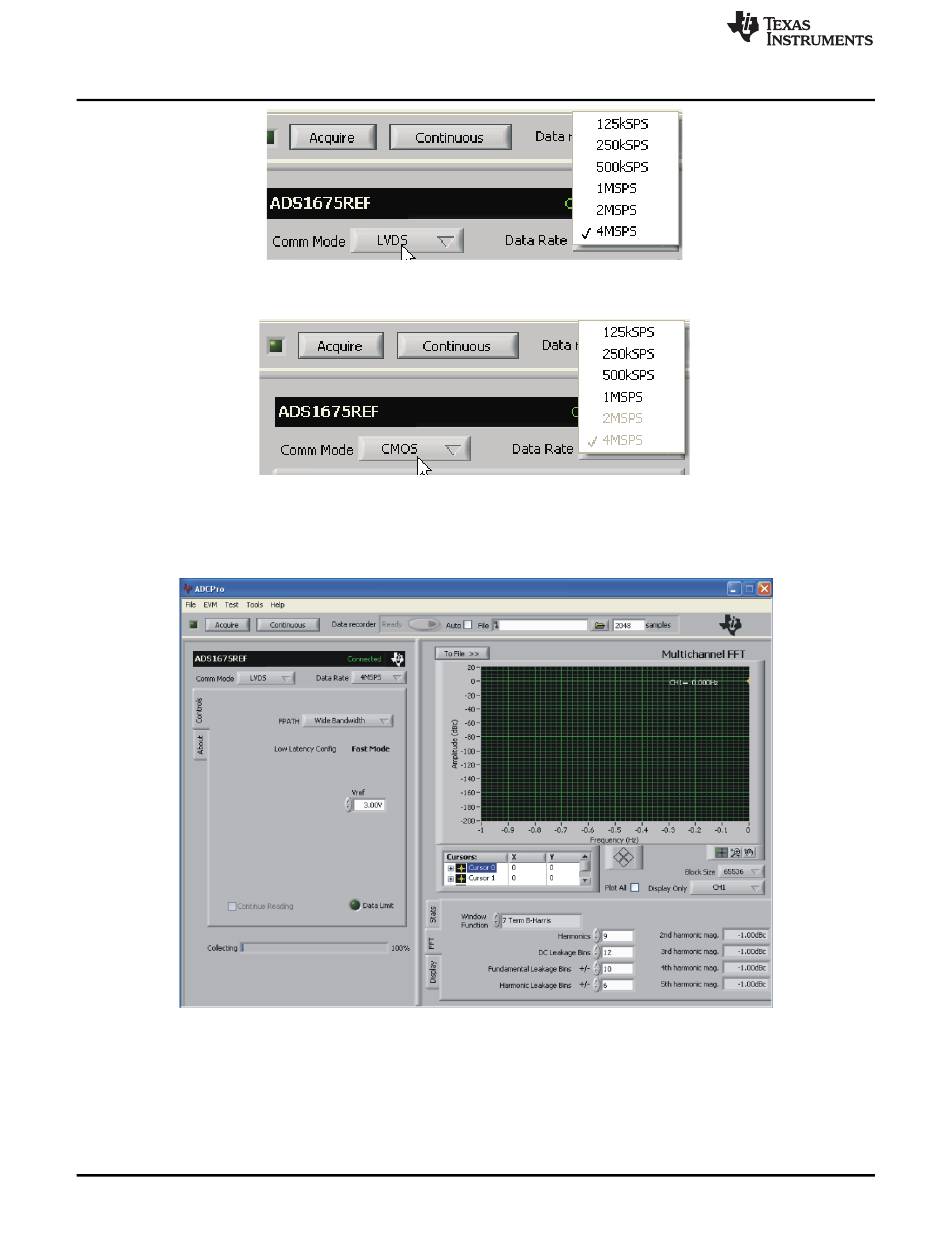

Figure 12. Six Default Data Rates for LVDS
Figure 13. Four Default Data Rates for CMOS
Figure 14. MultiFFT Test Plug-In (Example)
Copyright © 2009–2010, Texas Instruments Incorporated
Figure 14, the MultiFFT test was
