ADS1675REF Plug-in Operation
space
Step 2. Select ADS1675REF from the REF drop-down menu. The ADS1675REF plug-in appears in
the left pane, as shown in
Step 3. The ADS1675REF plug-in window has a status area at the top of the screen. When the
plug-in is first loaded, the plug-in searches for the board. You will see a series of messages
in the status area that indicate this action, such as Connected (as
Figure 5. ADS1675REF Plug-in Status Information Display Window
Step 4. Apply power to the REF board and connect the board to an available PC USB port.
Step 5. If you have not yet loaded the XEM3010 system drivers, Windows will display the Windows
Found New Hardware Wizard sequence (illustrated in
prompted, accept the Continue Anyway option as
10
ADS1675REF
Figure 4.

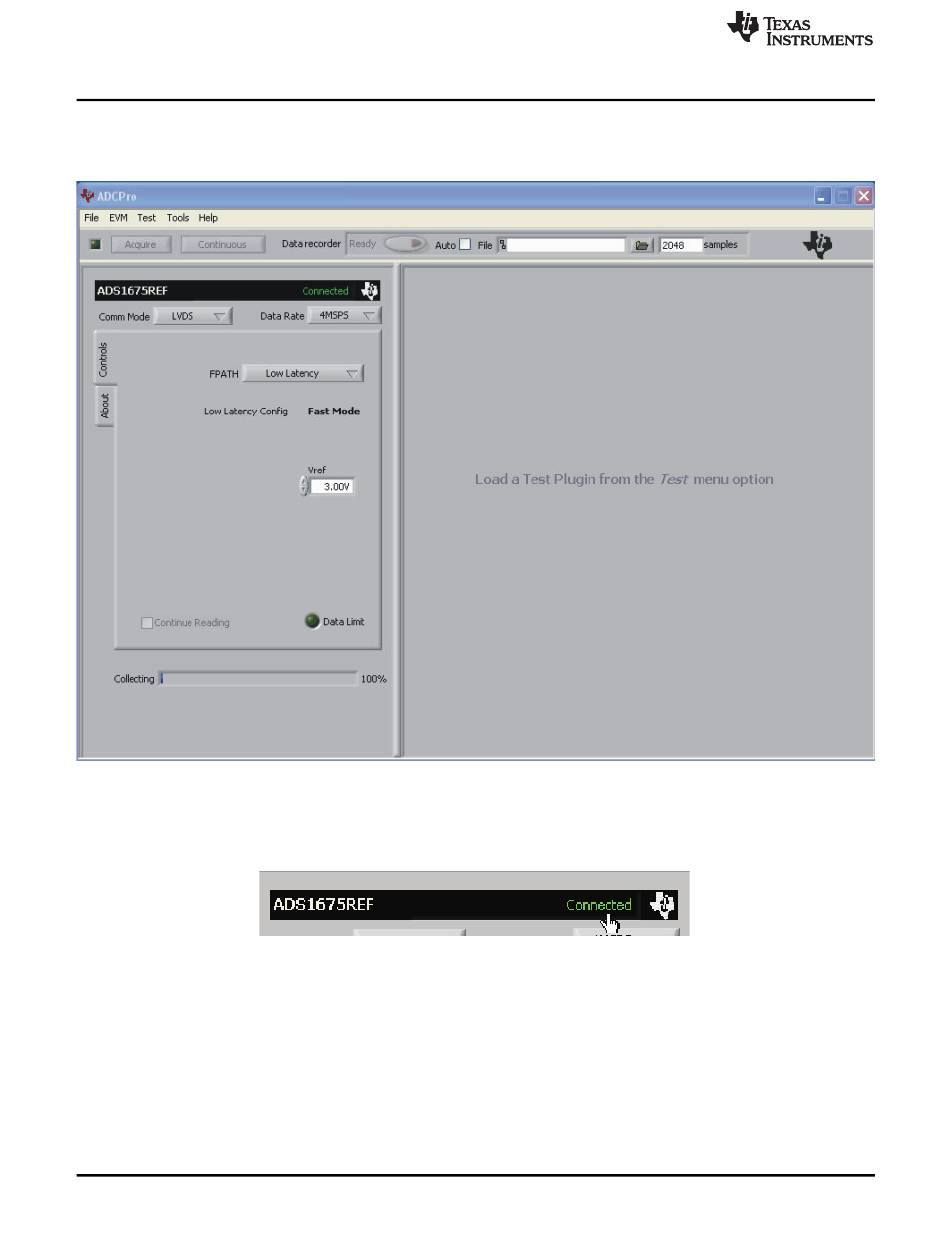

Figure 4. ADS1675REF Plug-in Display Window
