Truss installation
1. Bolt each clamp (1) to the omega holder (2) with M12 bolt and lock nut through the hole in the holder.
2. Fasten the omega holders to the bottom of the base by inserting both quick-lock fasteners (1) into
the holes of the base and tighten fully clockwise.
3. Clamp the fixture on a truss (3) and tighten the rigging clamps.
4. Pull one safety wire (5) around the truss (3) and lock
(6) as shown on the picture below.
will be 20 cm.
When installing fixtures side-by-side, avoid illuminating one fixture with
the snap hook of the safety wire
Use the safety wire of a suitable length that maximum fall of the fixture
another!
8

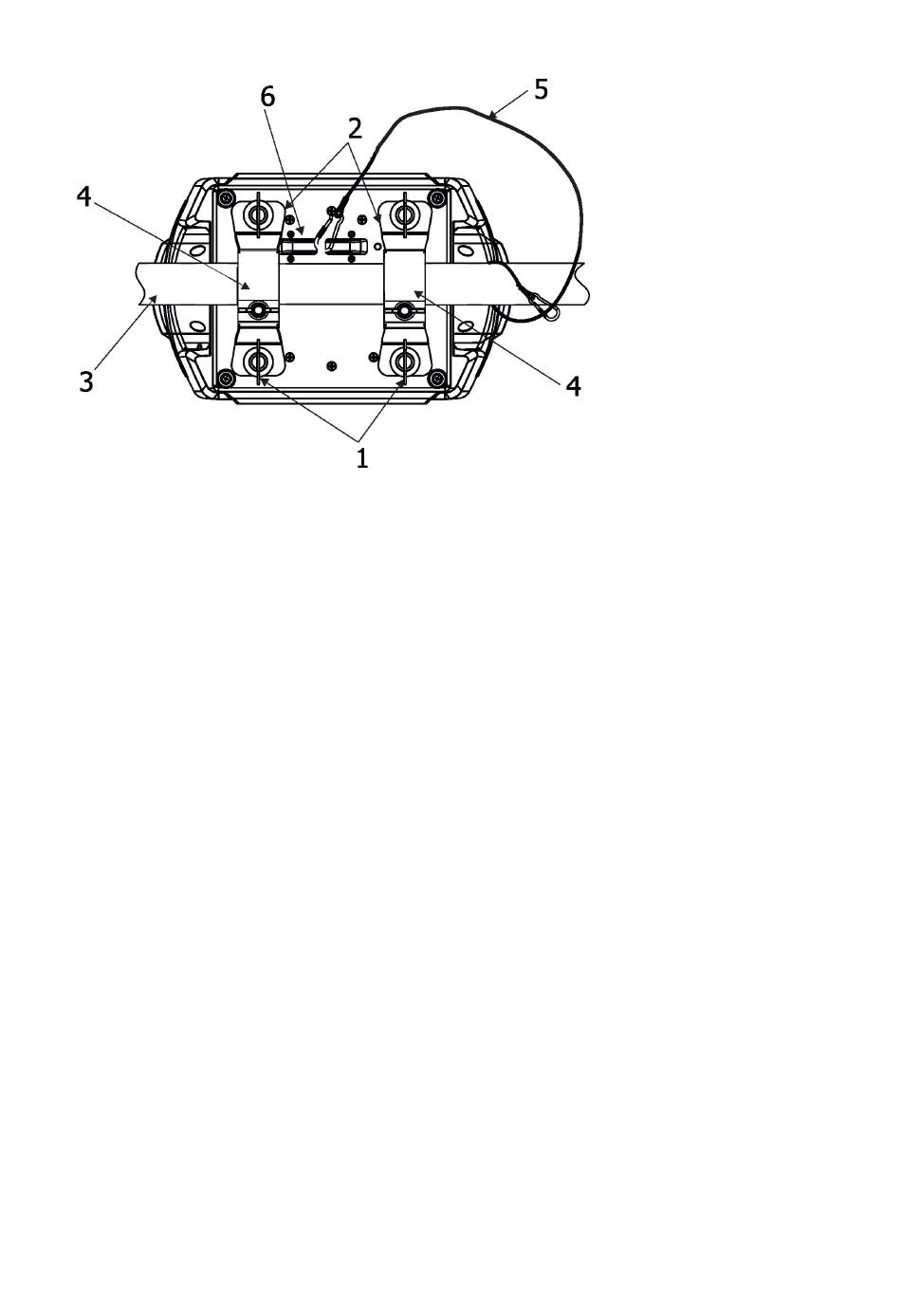

1-Quick-lock fastener
2-Omega holder
3-Trust
4-Clamp
5-Safety wire with a snap hook
with screw lock gate
6-Attachment point
in the attachment point
