3.4. Wireless DMX operation

The external ROBE Wireless CRMX Dongle for compact ROBIN fixtures allows receiving wireless DMX. This
module is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX
module operates on the 2.4 GHz band.

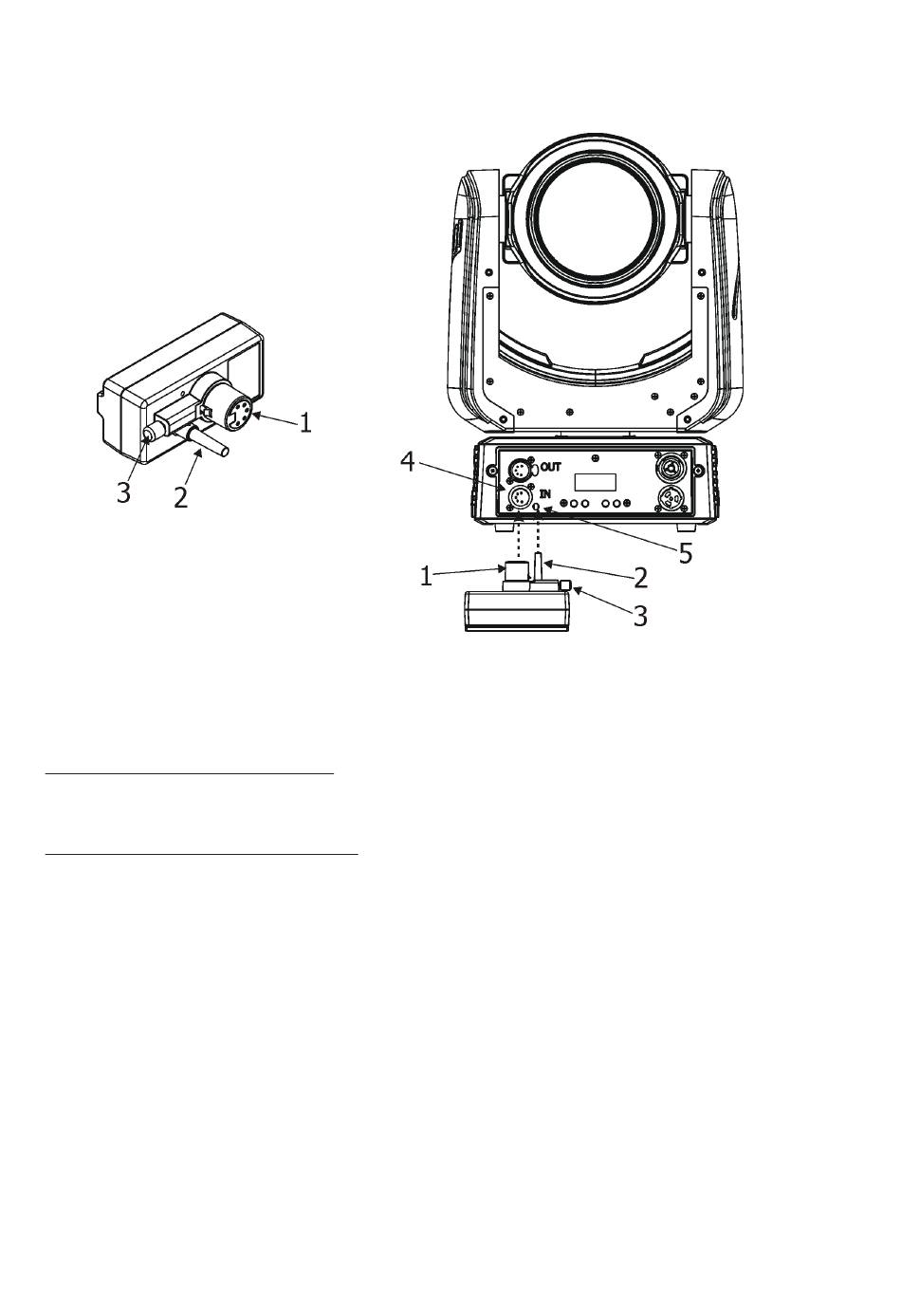

ROBE Wireless CRMX Dongle for
compact ROBIN fixtures
1 - 5-pin XLR (female)
2 - Locating pin
3 - Lock
Push in the 5-pin XLR plug (1) into 5-pin XLR sockit (4) and simultaneously locating pin (2) into the hole (5) in
the front panel of the fixture. In this way the wireless DMX module is connected with the fixture.
NOTE: when you disconnect the DMX wireless module from fixture, press and hold the lock (5) during getting
the wireless module out from the 5-pin XLR sockit (4) .
To link the fixture to a DMX transmitter.
The fixture can be only linked to a transmitter by running the link procedure at DMX transmitter .
After linking , the level of DMX signal ( 0-100 %) is displayed in the menu item "Stat" (Special -->Vireless -->Stat).
To unlink the fixture from DMX transmitter.
The fixture can be unlinked from receiver via the menu item " Unlink" (Special-->Vireless -->Unlink).
10
