Version 2.5
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROBIN T1 Profile and is the answer not in the manual?

Questions and answers

Related Manuals for Robe ROBIN T1 Profile

Summary of Contents for Robe ROBIN T1 Profile

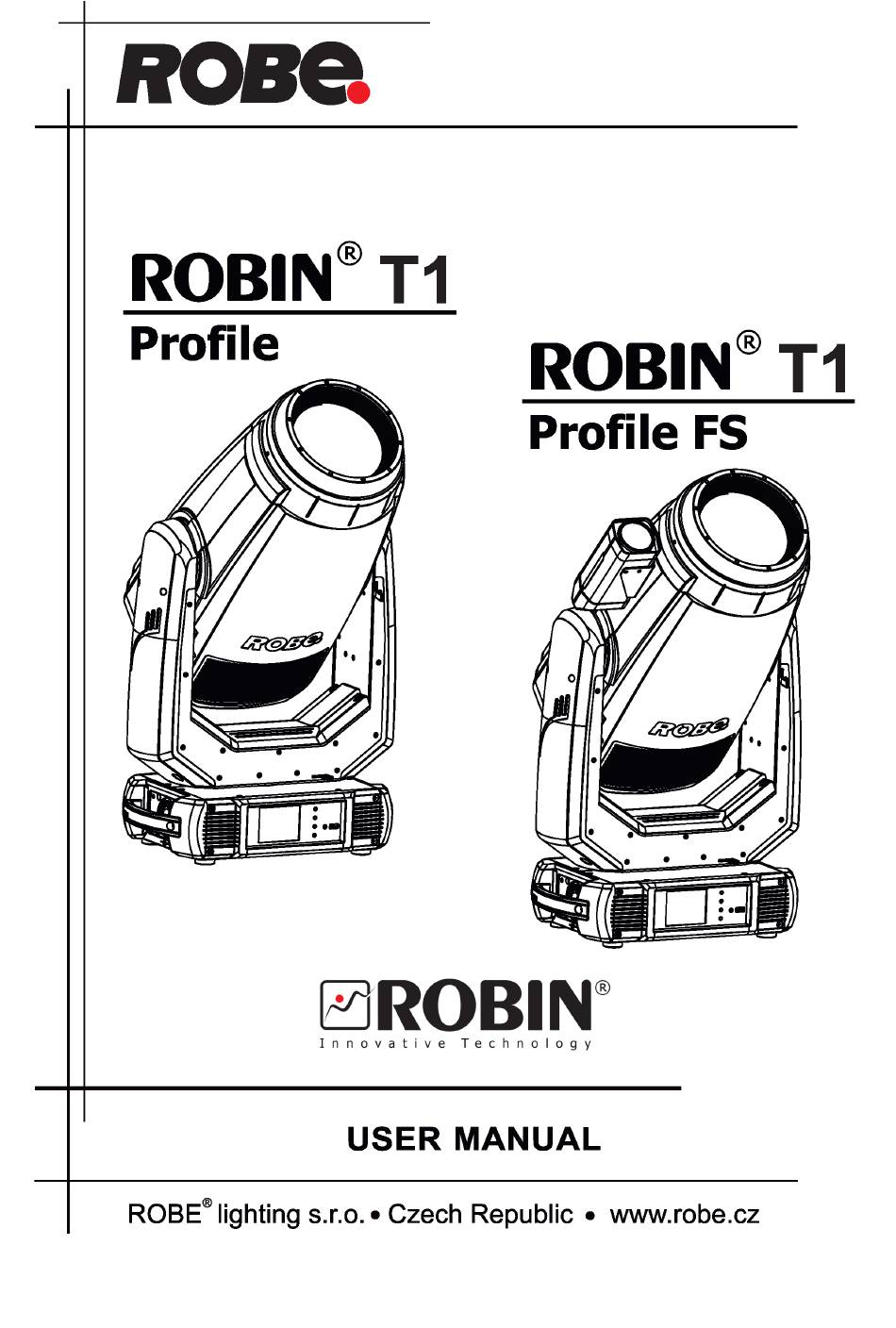

  • Page 1 Version 2.5...

  • Page 2: Table Of Contents

    Robin T1 Profile Robin T1 Profile FS Table of contents 1. Safety instructions ......................3 2. Operating determination ....................4 3. Fixture exterior view ...................... 5 4. Installation........................6 4.1 Connection to the mains .................... 6 4.2 Replacing the frost ....................6 4.3 Replacing gobos .......................

  • Page 3: Safety Instructions

    CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START - UP! 1. Safety instructions Every person involved with installation and maintenance of this device have to: - be qualified - follow the instructions of this manual CAUTION!

  • Page 4: Operating Determination

    Do not view the light output with optical instruments or any device that may concentrate the beam. The light source contains blue LEDs. CAUTION! Risk group 2, RG-2 2. Operating determination This device is a moving head for creating decorative effects and was designed for indoor use only. This device is for professional use only.

  • Page 5: Fixture Exterior View

    3. Fixture exterior view 1 - Front lens 2 - Camera* 3 - Arm 4 - Handle 5 - Base 6 - Pan lock 7 - Tilt lock 8 - Head *T1 Profile FS only The head has to be locked for transportation- the tilt lock latch (7) and the pan lock latch (6) have to be in the locked positions.

  • Page 6: Installation

    4.1 Connection to the mains For protection from electric shock, the fixture must be earthed! The Robin T1 Profile is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz AC power source from 100-240 Volts.

  • Page 7: Replacing Gobos

    5. Remove the original gobo (2) and insert the new one (glossy side towards the light source). The Robe gobo has a small position point (8) at its edge which has to aim at the position point (4) on the gobo holder (4). Insert the spring lock to secure correct gobo position in the gobo holder.

  • Page 8: Installing The Top Hat

    4.4 Installing the top hat Disconnect the fixture from mains before installing the top hat. 1. Disconnect the fixture from mains. 2. Remove the original gel frame adaptor P/N 10980440 (1) from the fixture head (2) by unscrewing six screws M4x10 (3) 3.

  • Page 9: Rigging The Fixture

    4.5 Rigging the fixture A structure intended for installation of the fixture(s) must safely hold weight of the fixture(s) placed on it. The structure has to be certificated to the purpose. The fixture (fixtures) must be installed in accordance with national and local electrical and construction codes and regulations.
  • Page 10 Truss installation 1.Bolt clamps (4) to the brackets Omega CL (1) with M12 bolts and lock nuts through the hole in the bracket Omega CL. 2.Fasten the brackets Omega CL on the bottom of the base by means of the quick-lock fasteners (2) and tighten them fully clockwise.

  • Page 11: Dmx-512 Connection

    4.6 DMX-512 connection The fixture is equipped with both 3-pin and 5-pin XLR sockets for DMX input and output.The sockets are wired in parallel. Only use a shielded twisted-pair cable designed for RS-485 and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.

  • Page 12: Ethernet Connection

    The Universe is a single DMX 512 frame of 512 channels. The Robin T1 Profile is equipped with 8-pin RJ- 45 socket for Ethernet input.Use a network cable category 5 (with four “twisted” wire pairs) and standard RJ-45 plugs in order to connect the fixture to the network.
  • Page 13 Ethernet / DMX operation Option “ Artnet" (gMaI or gMA2 or sACN) has to be selected from “Ethernet Mode” menu at first fixture. Option “Ethernet To DMX” has to be selected from the “Ethernet Mode” menu at the first fixture (connected to the Ethernet) in the fixture chain, next fixtures have standard DMX setting.

  • Page 14: Wireless Dmx Operation

    4.8 Wireless DMX operation The wireless version of the Robin T1 Profile is equipped with the Lumen Radio CRMX module and antenna for receiving DMX signal. CRMX module operates on the 2.4 GHz band. The item " Wireless " from the menu "DMX Input" allows you to activate receiving of wireless DMX (Person- ality-->...

  • Page 15: Remotely Controllable Functions

    5. Remotely controllable functions 5.1 Colour influencing functions Factory setting of menu functions (channels) which influence behaviour of colour channels is the following: Function Factory setting Function Factory setting DMX mode Uniformity Colour calibration mode Colour mix control 0 DMX Colour mixing mode 110 DMX (5600K) Dimmer curve...
  • Page 16 Colour Mix control (DMX channel "Colour Mix control") The Colour Mix control channel defines relation between colour channels (Cyan, Magenta, Yellow, Red, Green, Blue, Amber, Light Green and CTC ) and the colours on the virtual colour wheel: DMX value Function 0 - 9 Virtual colour wheel has priority over colour channels (default setting)
  • Page 17 Green correction (DMX channel "Green correction ") The channel allows you a fine correction of colours (whites, mixed colours, colours on the Virtual colour wheel). E.g. white colour from red to green tint. Virtual colour wheel (DMX channel " Virtual colour wheel") The virtual colour contains 67 preset colours,10 user colours and 70 multicolours.

  • Page 18: Effect Functions

    5.2 Effect functions Effect wheel The wheel rotates in both directions with variable speed which creates wide spectrum of graphic effects. Gobo wheel The fixture includes rotating gobo wheel with 7 glass gobos rotating in both directions, indexable, replaceable "SLOT&LOCK” system. Prism The 6-facet prism rotates in both directions at different speeds, 16 prism/gobo macros are available.
  • Page 19 Pan/Tilt Fast pan/tilt movement due to built-in electronic motion stabilizer (EMS). The electronic motion stabilizer ensures precise position of the fixture´s head during its movement and reduces its swinging when the truss shakes. Pan /Tilt movement range: 0-540°/0-265°.

  • Page 20: Control Menu Map

    6. Control menu map Default settings=Bold print Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Addressing Settings DMX Address 001-512 DMX Presets Mode 1 Mode 2 Mode 3 View Selected Preset Ethernet Settings Ethernet Mode Disable ArtNet gMAI gMA2...
  • Page 21 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Module F-A Module F-B Module G Module FR Product IDs Mac Address RDM UID RDM Label View Logs Fixture Errors Fixture States Power On Power Off Fixture Position Fixture Temperatures LEDs B.1 Temperature LEDs B.2 Temperature...
  • Page 22 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 2000W 25000W Init Effect Positions 0-255 Dimmer Fine 0-255 Screen Settings Display Intensity 1-10 Screen Saver Delay Off-10min. Touchscreen Lock Off-10min. Recalibrate Touchscreen Display Orientation Normal Inverted Auto Temperature Unit °C,°F Fan Mode...
  • Page 23 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Service Adjust DMX Values 0-255 Dimmer Fine 0-255 Calibrations Calibrate Effects 0-255 Tilt 0-255 Effect Wheel 0-255 Rot. Gobo Wheel 0-255 R. Gobo Index 1 0-255 R. Gobo Index 7 0-255 Prism 1 0-255...

  • Page 24: Control Menu

    7. Control menu The Robin T1 Profile is equipped with the QVGA Robe touch screen with battery backup which allows you to set the fixture´s behaviour according to your needs, obtain information on its operation, control all range of effects and program it in stand-alone mode.

  • Page 25: Tab " Address

    Touch any part of the screen or press the [ENTER/Display On] button to display the initial screen with the cur- rent stored DMX address: Note: The green icon at the top right corner of the screen indicates the level of the display battery charging. If the whole icon is green, the battery is fully charged while the red icon indicates exhausted battery.

  • Page 26: Tab "Information

    Resetable Hours - The item shows the number of the operation hours that the Robin T1 Profile has been powered on since the counter was last reset. In order to reset this counter to 0, touch the text box next to the item "Resetable Hours:"...
  • Page 27 Max. Res. - A maximum temperature of the LED PCBs since the counter was last reset. In order to reset some counter to 0, touch desired text box under item "Max.Res." LEDs Brd.1 Temperature - The menu shows temperature on the LEDs control PCB (RB 3401-top side with coils) in the fixture head.

  • Page 28: Tab "Personality

    7.3 Tab "Personality" User mode - The Robin T1 Profile allows you to recall two user settings. After switching the fixture on for the first time, the User A settings is active. Now all changes made in the “Personality” menu , ”Addressing” menu and the “Music Trigger“...
  • Page 29 Distribute User Colour - The item allows you to "send" user colours from this fixture to all connected Robin T1 Profile fixtures by means of RDM protocol. User colours in the fixtures will be overwritten. Tungsten effect simulation - This function simulates behaviour of a halogen lamp during dimming at calibrated whites 2700K-4200K.

  • Page 30: Tab "Manual Control

    -Use the menu to run a test/demo sequences without an external controller, which will show you some possibilities of using Robin T1 Profile. Dynamic Mode - This mode uses all Robin T1 Profile functions including pan/tilt movement and therefore is good for a complete introduction of the fixture.

  • Page 31: Tab "Service

    Play Program 2 - The option starts user program No. 2. Play Program 3 - The option starts user program No. 3. Edit Program - Use the menu to create or to edit desired program. The Robin T1 Profile offers 3 free programs, each up to 80 steps.
  • Page 32 Frost 2/2 - a medium frost fine position movement 2 Fr. Shutters.rot- a framing shutters module fine rotation (value range: 0-255) Fr. Shutter 1 Move - a Fram. lamella 1 fine moving Fr. Shutter 1 Swiv. - a Fram. lamella 1 fine swivelling Fr.
  • Page 33 If you use the Robe Universal Interface, connect a USB port of your computer with the Robe Universal Interface by means of the USB cable and DMX input of the fixture with the DMX output of the Robe Universal Interface via a DMX cable.

  • Page 34: Rdm

    6. Select correct "COM " number if you use a Flash cable RS232/DMX or select "Robe Universal Interface " if you use the Robe Universal Interface/Robe Universal Interface WTX and then click on the "Connect" button. 7. If the connection is OK, click the “Start Uploading" button to start software uploading. It will take several minutes to perform software update.

  • Page 35: Error And Information Messages

    9. Error and information messages Information icons - Air Filters Cleaning This icon signalizes that cleaning period of the air filters has elapsed and you have to clear air filters and reset the menu item "Elapsed Time". Errors Error in the fixture is signalled by the yellow warning icon at the bottom line of the screen: Touch the warning icon or press the [ESCAPE] button to display error messages.
  • Page 36 Fr. Shutters Rot. Error 1 (Fr. Shutters Rot. Error 2 ) The messages will appear after the reset of the framing shutters module if this module is not located in the default position. Fr. Shutter 1 Error 1 (Fr. Shutter 1 Error 2 ) The messages will appear after the reset of the framing shutters module if the frame 1 is not located in the default position.
  • Page 37 Base Fan Bad The fan in the fixture base is disconnected from its control PCB or is faulty and should be replaced. A light output from the fixture is closed. Suction LED Fan 1 Bad/ Suction LED Fan 2 Bad The suction fan 1 (fan 2) at the LED engine is is disconnected from its control PCB or is faulty and should be replaced.

  • Page 38: Technical Specifications

    10. Technical Specifications Electrical Power supply: electronic auto-ranging Input voltage range: 100-240V, 50-60Hz Fuse: T 10 A Max. power consumption: 750W (power factor 0.98) Optic Light source type: MSL™ 550 W Multi-Spectral LED engine CMY/RGB colour mixing CRI setting range: Standard (80) - High (90+) Min.
  • Page 39 Strobe Strobe effect with variable speed (0.3 - 20Hz) Dimmer Smooth dimmer from 0 - 100 % Camera (Robin T1 Profile FS only) Type: SNZ-6320 Max. resolution: 1920 x 1080 16 : 9 Full HD (1080p) resolution support 32x optical zoom, 16x digital zoom H.264, MJPEG dual codec, Multiple streaming...
  • Page 40 Temperatures Maximum/Minimum ambient operating temperature : +45°C/-5°C Maximum housing temperature : 70° C Minimum distances Min. distance from flammable surfaces: 0.5 m Min. distance to lighted object: 2 m Total heat dissipation 2560 BTU/hr (calculated) Weight 24.3 kg (Robin T1) 25.5kg (Robin T1 FS) Protection factor IP2X...
  • Page 41 Doughty Trigger Clamp (P/N 17030386) Safety wire 35 kg (P/N 99011963) Frost filter 1° (exchange) for Robin T1 Profile (P/N 10980578) Frost filter 5° (exchange) for Robin T1 Profile (P/N 10980573) Frost filter 20° (exchange) for Robin T1 Profile (P/N 10980574)

  • Page 43: Maintenance And Cleaning

    11. Maintenance and cleaning It is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on or within the fixture. Otherwise, the fixture‘s light-output will be significantly reduced. Regular cleaning will not only ensure the maximum light-output, but will also allow the fixture to function reliably throughout its life.

  • Page 44: Disposing Of The Product

    New P/N for optional frosts 5°a 20° 30/11/2020 Frost 1°added to optional accessories November 30, 2020 Copyright © 2018-2020 Robe Lighting - All rights reserved All Specifications subject to change without notice Made in CZECH REPUBLIC by ROBE LIGHTING s.r.o. Palackeho 416/20 CZ 75701 Valasske Mezirici...
  • Page 45 DMX protocol Robin T1 Profile - DMX protocol Version: 1.9 Mode 1-CMY/RGB, Mode 2 -Reduced CMY/RGB, Mode 3-Five colours (R,G,B,A,Light Green) Quick overview of default DMX values for each channel Mode/channel Default Function DMX Value Pan Fine Tilt Tilt fine...
  • Page 46 DMX protocol Mode/channel Default Function DMX Value Iris - fine Zoom Zoom - fine Focus Focus - fine Framing shutters module rotation Framing shutter 1- movement Framing shutter 1- swivelling Framing shutter 2- movement Framing shutter 2- swivelling Framing shutter 3 movement Framing shutter 3- swivelling Framing shutter 4 movement Framing shutter 4- swivelling...
  • Page 47 DMX protocol Mode/channel Type of Function Value control Graphic display: On 20-24 step Graphic display: Off 25-29 step Reserved 30-39 step 40-44 Pan/Tilt mode: Speed step 45-49 Pan/Tilt mode: Time step 50-54 Blackout while pan/tilt moving: On step 55-59 Blackout while pan/tilt moving: Off step 60-64 Blackout while gobo wheel moving: On...
  • Page 48 DMX protocol Mode/channel Type of Function Value control LED Frequency (step -126) step LED Frequency (step -125) step LED Frequency (step -124) step LED Frequency (step -3) step LED Frequency (step -2) step LED Frequency (step -1) step Selected LED Frequency (128=default) step LED Frequency (step +1) step...
  • Page 49 DMX protocol Mode/channel Type of Function Value control Filter 10 (Medium Yellow) step Filter 19 (Fire) step Filter 26 (Bright Red) step 9-10 Filter 58 (Lavender) step Filter 68 (Sky Blue) 11-12 step Filter 71 (Tokyo Blue) 13-14 step Filter 79 (Just Blue) 15-16 step 17-18...
  • Page 50 DMX protocol Mode/channel Type of Function Value control Filter 181 (Congo Blue) 99-100 step 101-102 Filter 197 (Alice Blue) step 103-104 Filter 201 (Full C.T. Blue) step 105-106 Filter 202 (Half C.T. Blue) step 107-108 Filter 203 (Quarter C.T. Blue) step 109-110 Filter 204 (Full C.T.
  • Page 51 DMX protocol Mode/channel Type of Function Value control Multicolour 29 step Multicolour 30 step Multicolour 31 step Multicolour 32 step Multicolour 33 step Multicolour 34 step Multicolour 35 step Multicolour 36 step Multicolour 37 step Multicolour 38 step Multicolour 39 step Multicolour 40 step...
  • Page 52 DMX protocol Mode/channel Type of Function Value control 226-227 User colour 6 step 228-229 User colour 7 step 230-231 User colour 8 step 232-233 User colour 9 step 234-235 User colour 10 step 236-245 Rainbow effect (with fade time) from slow-> fast proportional 246-255 Rainbow effect (without fade time) from slow->...
  • Page 53 DMX protocol Mode/channel Type of Function Value control 66-109 Colour temperature changing 657 8K ->5622 K (22 K/1 DMX) proportional 5600 K (110=default) step 111-179 Colour temperature changing 5580 K ->4220 K (20 K/1 DMX) proportional 4200 K step 181-229 Colour temperature changing 4180 K ->3220 K (20 K/1 DMX) proportional 3200 K step...
  • Page 54 DMX protocol Mode/channel Type of Function Value control No rotation (128=default) step 129 - 255 Backwards rotation from slow to fast proportional Effect wheel animations No animation (0=default) Note : Set suitable DMX value at Focus channel to get desired animation.
  • Page 55 DMX protocol Mode/channel Type of Function Value control Shaking gobos from slow to fast Rotation - set rotation on channel 27/16/31 130 - 139 Gobo 1 proportional 140 - 149 Gobo 2 proportional 150 - 159 Gobo 3 proportional 160 - 169 Gobo 4 proportional 170 - 179 Gobo 5 proportional...
  • Page 56 DMX protocol Mode/channel Type of Function Value control No rotation step 1 - 127 Forwards prism rotation from fast to slow proportional No rotation (128=default) step 129-255 Backwards prism rotation from slow to fast proportional Frost Open (0=default) step Light Frost 1-50 Light Frost from 0% to 100% proportional...
  • Page 57 0 - 255 Dimmer intensity from 0% to 100% (0=default) proportional Dimmer intensity - fine 0 - 255 Fine dimming (0=default) proportional Copyright © 2018-2020 Robe Lighting s.r.o. - All rights reserved All Specifications subject to change without notice Page 13...
  • Page 58 Colour macros on Virtual Colour Wheel Light Green Amber Colour name Red DMX Blue DMX Green Filter 4 (Medium Bastard Amber) Filter 10 (Medium Yellow) Filter 19 (Fire) Filter 26 (Bright Red) Filter 58 (Lavender) Filter 68 (Sky Blue) Filter 71 (Tokyo Blue) Filter 79 (Just Blue) Filter 88 (Lime Green) Filter 90 (Dark Yellow Green)
  • Page 59 Light Green Amber Colour name Red DMX Blue DMX Green Filter 172 (Lagoon Blue) Filter 179 (Chrome Orange) Filter 180 (Dark Lavender) Filter 181 (Congo Blue) Filter 197 (Alice Blue) Filter 201 (Full C.T. Blue) Filter 202 (Half C.T. Blue) Filter 203 (Quarter C.T.
