CM 120 R
INSTALLATION AND
PROGRAMMING MANUAL

Guarantee

During the guarantee period the manufacturer shall, at its sole discretion, replace or repair any defective
product when it is returned to the factory. All parts replaced and/or repaired shall be covered for the remainder
of the original guarantee, or for ninety (90) days, whichever period is longer. The original purchaser shall
immediately send manufacturer a written notice of the defective parts or workmanship, which written notice
must in all cases be received prior to expiry of the guarantee.
International Guarantee
Foreign customers shall enjoy the same guarantee rights as those enjoyed by any customer in Bulgaria,
except that manufacturer shall not be liable for any related customs duties, taxes or VAT, which may be
payable.
Guarantee Procedure
This guarantee will be granted when the appliance in question is returned. The manufacturer shall accept no
product whatsoever, of which no prior notice has been received.
Conditions for waiving the guarantee
This guarantee shall apply to defects in products resulting only from improper materials or workmanship,
related to its normal use. It shall not cover:
§Damages resulting from transportation and handling;
§Damages caused by natural calamities, such as fire, floods, storms, earthquakes or lightning;
§Damages caused by incorrect voltage, accidental breakage or water; beyond the control of the manufacturer;
§Damages caused by unauthorized system incorporation, changes, modifications or surrounding objects:
§Damages caused by peripheral appliances (unless such peripheral appliances have been supplied by the
manufacturer);
§Defects caused by inappropriate surrounding of installed products;
§Damages caused by failure to use the product for its normal purpose;
§Damages caused by improper maintenance;
§Damages resulting from any other cause, bad maintenance or product misuse.
In the case of a reasonable number of unsuccessful attempts to repair the product, covered by this guarantee,
the manufacturer's liability shall be limited to the replacement of the product as the sole compensation for
breach of the guarantee. Under no circumstances shall the manufacturer be liable for any special, accidental
or consequential damages, on the grounds of breach of guarantee, breach of agreement, negligence, or any
other legal notion.
Waiver
This Guarantee shall contain the entire guarantee and shall be prevailing over any and all other guarantees,
explicit or implicit (including any implicit guarantees on behalf of the dealer, or adaptability to specific
purposes), and over any other responsibilities or liabilities on behalf of the manufacturer. The manufacturer
does neither agree, nor empower, any person, acting on his own behalf, to modify or alter this Guarantee, nor
to replace it with another guarantee, or another liability with regard to this product.
Unwarranted Services
The manufacturer shall repair or replace unwarranted products, which have been returned to its factory, at its
sole discretion under the conditions below. The manufacturer shall accept no products for which no prior
notice has been received.
The products, which the manufacturer deems repairable, will be repaired and returned. The manufacturer has
prepared a price list and those products, which can be repaired, shall be paid for every repaired appliance.
The closest equivalent product, available at the time, shall replace the products manufacturer deems un-
repairable. The current market price shall be charged for every replaced product.

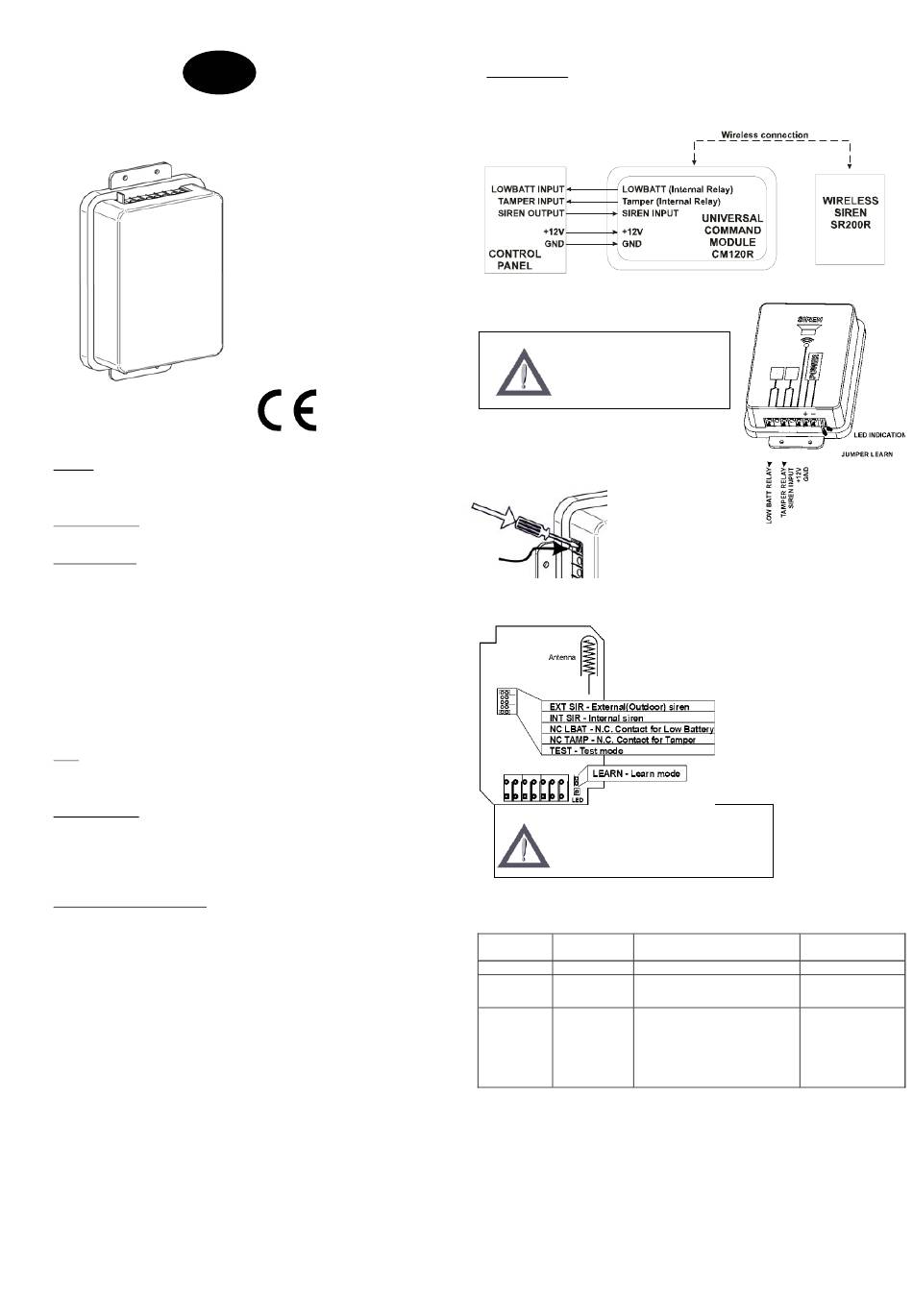

GENERAL SPECIFICATIONS

CM120R in combination with SR200R offers you a good solution to control the
siren without wires for any conventional alarm control panel.
CM120R can work with two outdoor sirens, two indoor sirens, or one outdoor
and one internal siren simultaneously.
Wireless link distance....... up to 200 m outdoor
Power supply.................... 6 to 15 V
Consumption..................... 25 to 60 mA
Temperature range............. -40 to +70 ºC
Digital input....................... LOW level (0V – 0.5V)
HIGH level (3.6V – max 15V)
Outputs............................. Two dry relay outputs for Low Battery
and Tamper faults;
100mA/100V AC/DC, max 10ohm serial
resistance
N.C./N.O. configurable (see Installation,
5. for jumper description)
ATTENTION!
This manual should be read
carefully.
The contents thereof are subject to
change.
Rev. D 11/2008
18020365

INSTALLATION

1. After installation is completed, the wireless siren SR200R should be
connected to a control panel by means of a universal CM120R as shown
below.
2. Connect inputs and outputs as indicated on
the cover.
Jumpers for the LOW BATT
and TAMPER outputs are set
up by default.
3. Press back the orange plastic clamp with a
screwdriver, feed the cable
corresponding hole, and release the clamp to
fix the cable into
position.
4. To program and configure the control module
delete the siren address according to the siren
installation manual.
5. Remove the control module unit cover to reveal the printed circuit board.
The functions of the jumpers are as follows:
Please do NOT touch the antenna!
6. For LED-indicated events refer to the table below:
Mode Operating Learn Mode
Mode
Red flash data sent at intervals of 1 sec.
Green data data received
flash received
Buzzer short beep short beep—data received
when Input from a set up
is activated SR100TE/SR200R
Long beep—data received
from an SR100TE/SR200R
that has not been set up
into the
LEARN – used to set up a
siren device (see
Mode).
ExtSir –ON for an outdoor
siren.
IntSir – ON for an internal
siren.
NC LBatt – LowBatt relay
output – ON for N.C. contact
/Off for N.O. contact.
NC Tamp – Tamper relay
output – ON for N.C. contact
/Off for N.O. contact.
TEST – ON for RF Test Mode.
Test Mode
data sent
data received
short beep—
Input is
activated.
0 to 5 beeps—
strength of the
RF-signal
Learn
