Teletek electronics PAX SR EXT Installation And Operation Manual

ATTENTION: Read carefully this installation Instructions before installing the device! This manual is subject to change without notice!

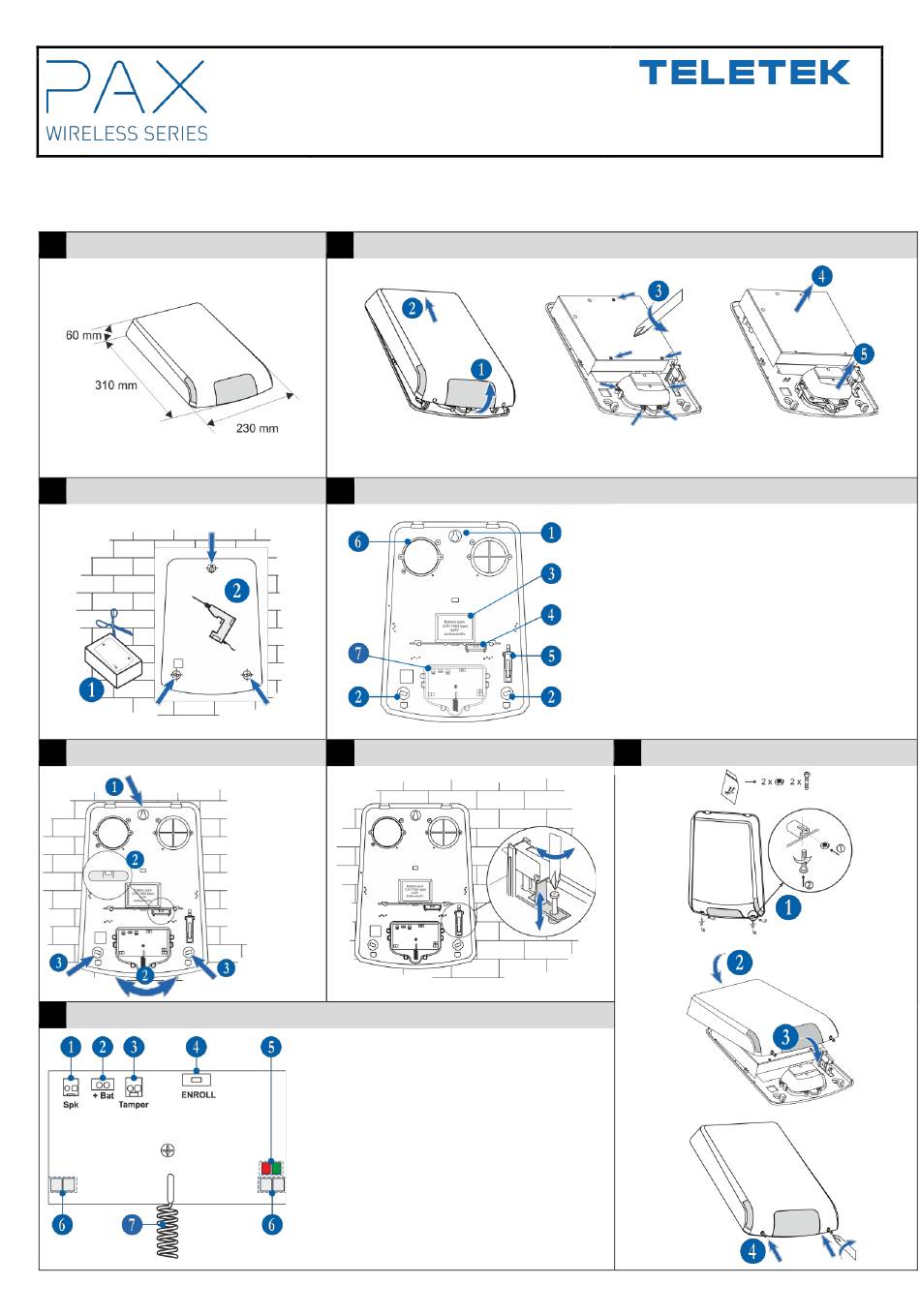

1. Installation
1 General view & Dimensions
3 Drilling Template
5 Wall Mounting
8
PAX SR EXT
Wireless Outdoor Siren
Installation and Operation Manual
2
Note: Perform steps 3, 4 and 5 only if you have to reset the siren. To change the battery package,
perform only steps 3 and 4.
4
6
Use fitting
elements
according the
mounting
surface, as it
is required to
use supporting
elements that
hold 900N
downwards
force.
PCB Elements
The PCB is protected with a plastic cover. The
tamper and siren connection cables are factory
mounted. The connection cable for the battery is
brought out under the protective cover.
1 – Speaker terminal, factory mounted.
2 – Battery connector, the connection cable is
brought out under the plastic cover.
3 – Tamper switch terminal, factory mounted.
4 – ENROL button.
5 – Operation LED indicators, red and green.
6 – Alarm LEDs.
7 – Antenna. Do not touch!
Siren Elements
1 – Main mounting hole – see section 5.
2 – Supporting mounting hole – see section 5.
3 – Battery pack*, factory mounted, under the metal
protective cover. The battery pack is equipped with a
connection cable and 3-pin connector for switching to
main PCB.
4 – Spirit bubble leveller – see section 5.
5 – Bi-directional tamper switch – see section 6.
6 – Piezo sounder.
7 – Control PCB – see section 8.
*Attention:
connector wires! Do not disassemble the battery pack!
The battery pack is not rechargeable! Use only battery
pack types approved by the manufacturer!
Do not expose the battery pack on high temperatures!
Tamper Settings
Teletek Electronics JSC
Address: 14A Srebarna Str,
1407 Sofia, Bulgaria
Opening
Do not cut, shorten, or extend the battery
7 Closing and securing the sounder
