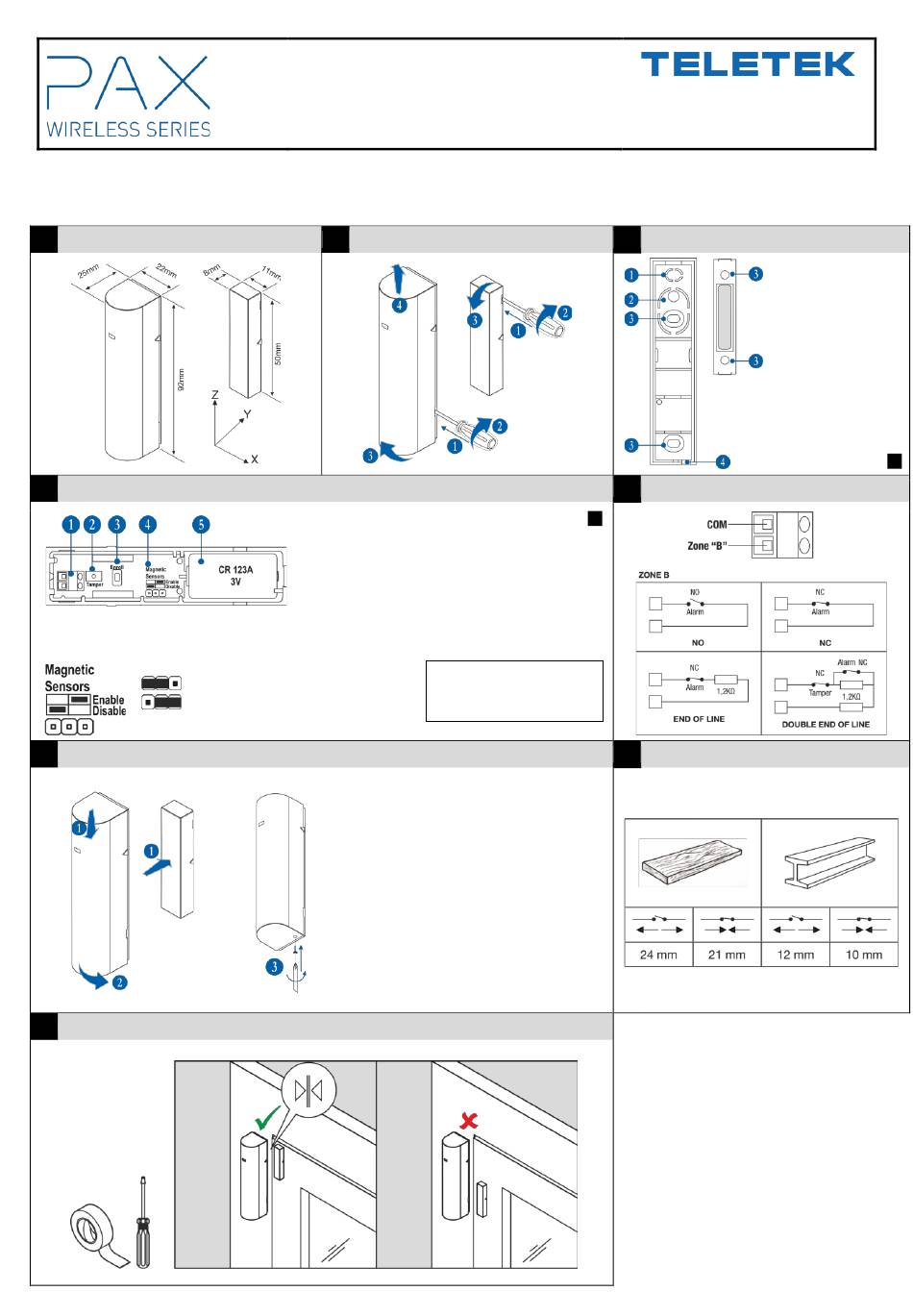

Teletek electronics PAX MC1 Installation And Operation Manual

ATTENTION: Read carefully this installation Instructions before installing the device! This manual is subject to change without notice!
1. Installation
1 General view & Dimensions
4
To set the operation of the magnetic sensors, put a jumper on the respective terminals:
The operation of magnetic sensors is Disabled.
The operation of magnetic sensors is Enabled.
6
8
Wireless Magnetic Contact with One Input
Installation and Operation Manual
2
PCB Elements and Jumper settings
1 - Terminals for connecting the wired zone - see .5.
2 - Tamper switch
3 - Operation button (used for Enrolment, Reset and
Radio signal check)
4 - Jumper terminals for Enable/Disable the
operation of the magnetic sensors
5 - Battery 3V CR123A*
* Use only Panasonic, IEC 60086 tested batteries.
Closing and securing the front cover
For securing the cover to the bottom, use the
little pan head screw from the supplied kit
with spare parts.
Installation place
PAX MC1
Opening the front covers
When all jumpers are removed, the
LED and magnetic sensor
operation is fully programmable via
the control panel or configuration
software!
Teletek Electronics JSC
Address: 14A Srebarna Str,
1407 Sofia, Bulgaria
3 Mounting the bases
1 - Cable running
hole, knock out plate
2 - Back-tamper knock
out plate (against
unauthorized
dismantling)
3 - Mounting holes
4 - Hole for fixing the
cover to the bottom
with a screw (optional,
against unauthorized
opening, according
EN50131-1 and
EN50131-3) – see .6.
5 Zone wiring diagrams
7 Operation distance
