BLOTZ B20-ST-111 Construction Instructions

Please read these instructions fully before starting construction.
PVA or equivalent glue will be required to stick sections together.
Sand paper can be used to gently clean any joints.
A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due care and remember
to cut away from yourself at all times.
During the construction of this model, you may find it convenient to use pegs / elastic bands to hold pieces in place while
you allow glue to dry.
A full-colour copy of these instructions can be found on our website: www.blotz.co.uk

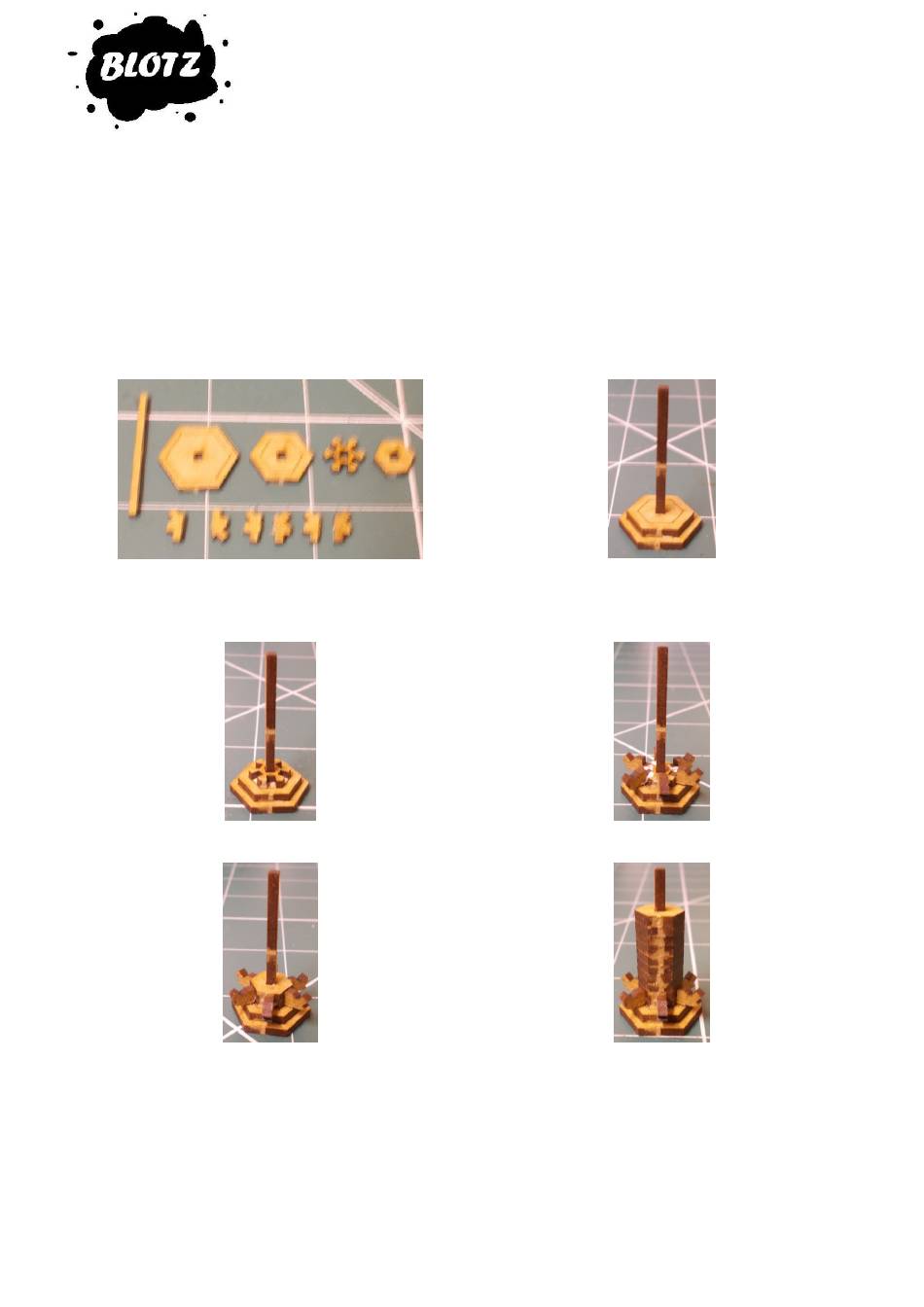

The central column starts with the pieces shown
above. Note the small hexagon and the "cog" are the
same size.
Next glue the "cog" into place.
Lock these into place by adding the small hexagonal
piece (again ensure you align the sprue point).
20mm Pissoir and Benches
B20-ST-111
Glue the two larger hexagons together and insert
the spindle through both pieces. To ensure pieces
are the right way round make sure the sprue points
are on the same side.
Then attach the arms so that the long edge is resting
on the base as shown.
Glue the remaining hexagons onto the spindle.
