BLOTZ B20-MD-004 Quick Start Manual

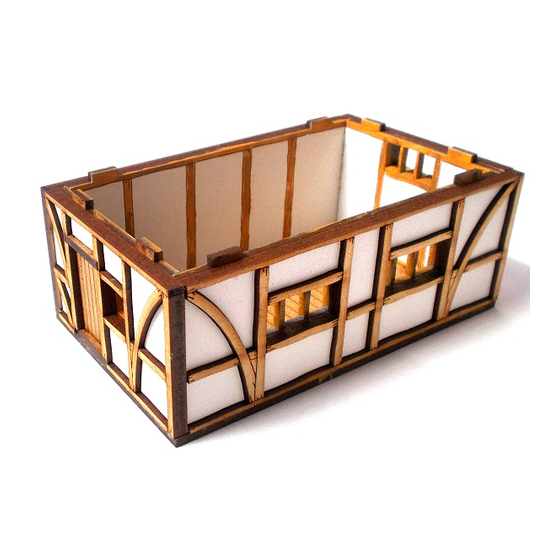

20mm Saddlery floor for use with Open Fronted Barn

B20-MD-004

Please read these instructions fully before starting construction.

PVA or equivalent glue will be required to stick sections together.

Sand paper can be used to gently clean any joints.

A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due care and remember

to cut away from yourself at all times.

During the construction of this model, you may find it convenient to use pegs / elastic bands to hold pieces in place while

you allow glue to dry.

You may find it easier to paint portions of this model BEFORE construction – please see the end of the document for info

about this.

Upper Floor (Saddlery)

Remove the door and handle from the sprue and

glue them together as shown.

Glue the walls to the floor with all the etched

detail facing inwards.

Add the frames. Starting with the door

framework, glue this into place aligning the door

supports into their spaces.

Note: This piece will be flush to the left hand side

of the wall and extend out by about 3mm on the

right. Move around the building adding each

frame in turn.

Take the floor and upper walls from the sprue (as

seen above).

Take the frameworks.

Glue one of the door supports to the base of the

doorway with the hole on the left (see pic)

Table of Contents

Do you have a question about the B20-MD-004 and is the answer not in the manual?

Page 1 20mm Saddlery floor for use with Open Fronted Barn B20-MD-004 Please read these instructions fully before starting construction. PVA or equivalent glue will be required to stick sections together. Sand paper can be used to gently clean any joints. A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due care and remember to cut away from yourself at all times.
Page 2 Place the top support on top of the door and Then take the insert sections from the sprue and gently slide this into position as shown. glue them into the spaces in the framework. Note the insert pieces for each wall are in their relative positions on the sprue.
