- Page 1 Industrial Renewable Power 5-Port Gigabit Managed Switch/Router with 4-Port 802.3at PoE+ BSP-360 Quick Installation Guide...
- Page 2 Safety Precautions Please read the following before using: 1. All electrical work must be done in accordance with local, and/or international electrical codes. 2. Before installing or using this device, read all instructions and cautionary marking located in (or on) this guide, the controller, the batteries, PV (Photovol- taic) array and any other device used.
-
Page 3: Table Of Contents
Table of Contents 1. Package Contents ..................4 2. Requirements ..................... 5 3. Hardware Introduction ................6 3.1 Front Panel ..................6 3.2 LED Indicators..................7 3.3 Upper Panel ..................8 4. Hardware Installation .................10 5. Web Management ..................16 6. Deployed Devices Monitored via NMS-360 Controller ........18 7. -
Page 4: Package Contents
1. Package Contents Thank you for purchasing PLANET Industrial Renewable Energy Managed PoE Switch/Router, BSP-360. Open the box of the BSP-360 and carefully unpack it. The box should contain the following items: 1 x BSP-360 1 x Quick Installation Guide... -
Page 5: Requirements
2. Requirements PLANET BSP-360 provides a remote login interface for management purposes. The following equipment is necessary for further management: Workstation is installed with Ethernet NIC (Network Interface Card) Choice of Internet browsers includes Windows XP/2003, Vista, Windows 7, Windows 8, Windows 10, MAC OS X, Linux, Fedora, Ubuntu or other platforms compatible with TCP/IP protocols. -
Page 6: Hardware Introduction

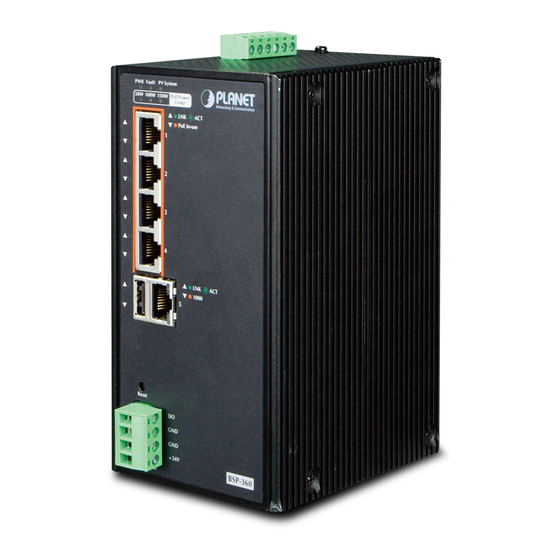

3. Hardware Introduction 3.1 Front Panel The front panel of the BSP-360 consists of 5 auto-sensing 10/100/1000Mbps Ethernet RJ45 ports and one USB interface. The LED Indicators are also located on the RJ45 ports of the BSP-360. PWR Fault PV System... -
Page 7: Led Indicators
3.2 LED Indicators System Color Function Green To indicate BSP-360 has power. To indicate bad battery, over-current or short- Fault circuit. Slow To indicate the system is “on”. Blinks Green System Fast To indicate the battery is “charging”. Blinks... -
Page 8: Upper Panel
3.3 Upper Panel The upper panel of the BSP-360 consists of one terminal block connector with PV and battery power inputs. 1 2 3 4 5 6 PV DC Input: Max. fault loading: 24V, 1A 24-45V , 6A max. Battery DC Input: 24V... - Page 9 Battery In/Out 24V DC 24V DC 1 2 3 4 5 6 PV DC Input: Max. fault loading: 24V, 1A 24-45V , 6A max. Battery DC Input: 24V , 6A Battery Figure 3-4 Battery In/Out The wire gauge for the terminal block should be in the range from 14 to 24 AWG.
-
Page 10: Hardware Installation
4. Hardware Installation The following section describes the hardware installation of the BSP-360. Before connecting any network device to the BSP-360, read this chapter carefully. CAM1 CAM2 CAM3 Solar PV Battery BSP-360 Surge arrester is required must be grounded Equipment must... - Page 11 2. Connect the positive electrode of the battery to the terminal for the positive electrode of the battery on the BSP-360. 3. After the battery is well connected to the BSP-360, the PWR LED will be ON and System LED will slowly blink.
- Page 12 2. Connect the positive electrode of the PV panel to the terminal for the posi- tive electrode of the PV panel on the BSP-360. 3. After the PV is well connected to the BSP-360 and providing 24V or above voltage, the System LED will blink fast for battery charge if the battery is not full.
- Page 13 “B” 802.3af/at PoE Device 1. Connect the PoE devices to ports 1~ 4 on the BSP-360. 2. Check the PoE-in-Use LED. If the network devices such as PoE camera and PoE wireless AP are powered, the PoE-in-use LED will turn ON and Link/Act LED will blink for a successful connection or data receiving.
- Page 14 Step 5. Wiring the DC Outputs Please follow the steps below to insert the power wires for DC power required equipment 1. Please find the terminal block connector with two DC power outputs shown below: 2. Insert the Positive and Negative DC wires into the V+ and V- terminals, respectively;...
- Page 15 The external device should also be grounded properly. Please ensure the output voltage is correct for remote device. Otherwise, it will damage your remote device. Step 6. Connect to PC Ethernet Switch Monitoring Center BSP-360 After completing the above 6 steps, the BSP-360 is ready for service.
-
Page 16: Web Management
5. Web Management The following shows how to start up the Web Management of the BSP-360. Note the BSP-360 is configured through an Ethernet connection. Please make sure the manager PC must be set to the same IP subnet address. - Page 17 DC IN, Battery and Power Consumption. Step 4. The Switch Menu on the left of the Web page lets you access all the functions and status the BSP-360 provides. Now, you can use the Web management interface to continue the Switch management.
-
Page 18: Deployed Devices Monitored Via Nms-360 Controller
The NMS-360 is used to centrally manage a large number of BSP-360s(V2). Therefore, you need to upgrade the BSP-360(V2) firmware before using NMS-360. Please download and use the latest BSP-360(V2) firmware from the website so that setting can be completed smoothly. - Page 19 Step 2. BSP-360: Log in to the Switch’s Web User Interface and enable both the SNMP and NMS controller functions. BSP-360 (Figure 1) (Figure 2) If you want to use central management, ONVIF monitoring func- tions, please refer to the user manual or NMS-360 series related profile.
-
Page 20: Customer Support
PLANET web site first to check if it could solve your issue. If you need more support information, please contact PLANET switch support team. Support team mail address: support@planet.com.tw BSP-360 User’s Manual: https://www.planet.com.tw/en/support/downloads?&method=keyword&keyword=B SP-360&view=3#list BSP-360 PV&BAT Calculation: https://www.planet.com.tw/en/support/faq?method=keyword&keyword=BSP- 360+Calculation Copyright ©... -
Page 21: Appendix A: Recommended Use Of The Connected Wires
Appendix A: Recommended Use of the Connected Wires (Applicable to the system with voltage attenuation less than 3%) The following table is applicable to the applications in the system. Distance in feet (meters) Amps 24 AWG 22 AWG 20 AWG 18 AWG 16 AWG 14 AWG... -
Page 22: Appendix B: Recommended Settings For Batteries
Appendix B: Recommended Settings for Batteries We suggest Lead-acid battery for BSP-360. You could set the Battery type at Battery Management on the web of BSP-360. Description Specifications Battery type Lead-acid Battery Battery capacity Depending on Battery Output voltage for load Equal to battery’s voltage...
