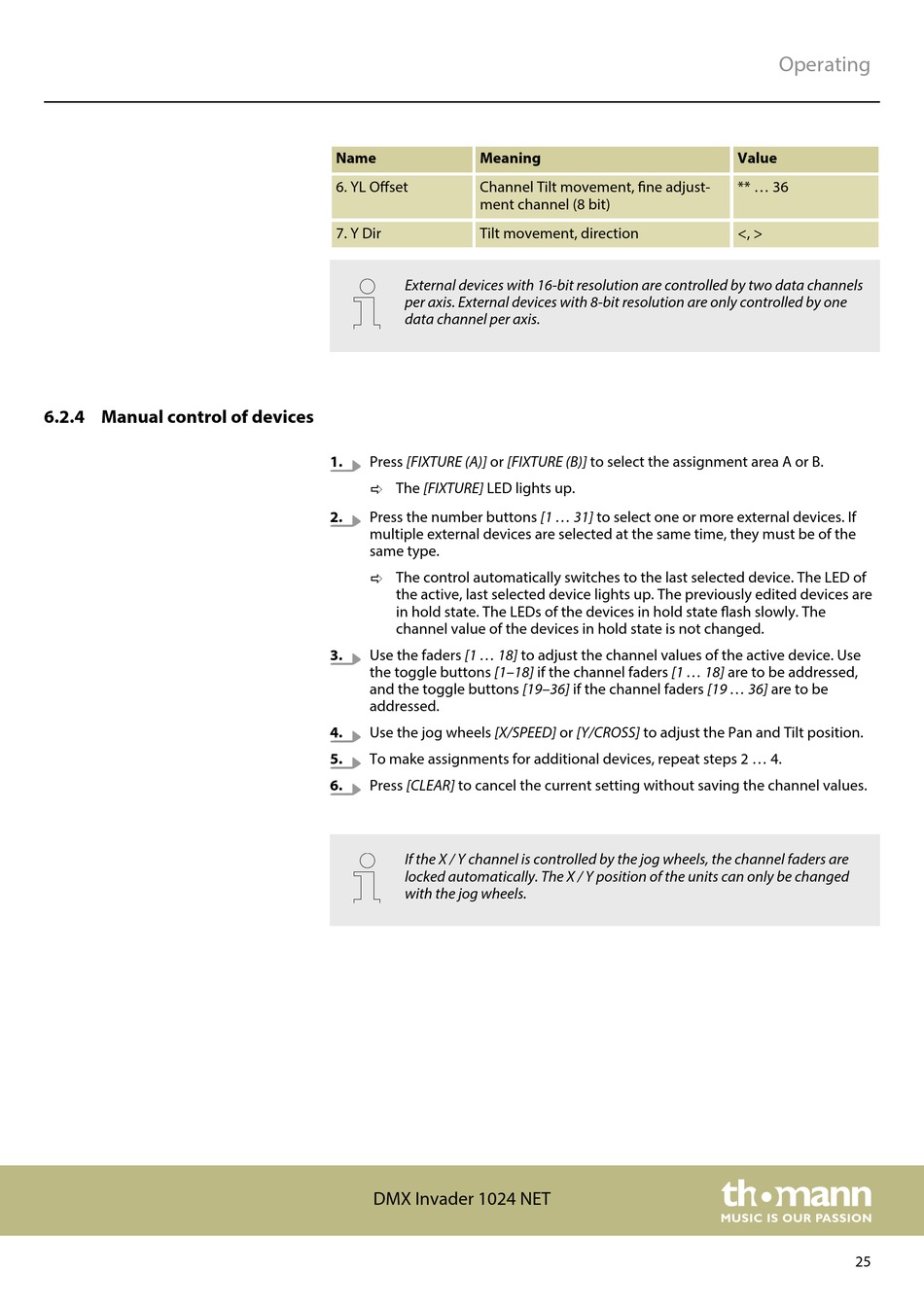

6.2.4 Manual control of devices

Name Meaning
6. YL Offset Channel Tilt movement, fine adjust‐
ment channel (8 bit)
7. Y Dir Tilt movement, direction
External devices with 16-bit resolution are controlled by two data channels
per axis. External devices with 8-bit resolution are only controlled by one
data channel per axis.
1.
Press [FIXTURE (A)] or [FIXTURE (B)] to select the assignment area A or B.
ð The [FIXTURE] LED lights up.
2.
Press the number buttons [1 ... 31] to select one or more external devices. If
multiple external devices are selected at the same time, they must be of the
same type.
ð The control automatically switches to the last selected device. The LED of
the active, last selected device lights up. The previously edited devices are
in hold state. The LEDs of the devices in hold state flash slowly. The
channel value of the devices in hold state is not changed.
3.
Use the faders [1 ... 18] to adjust the channel values of the active device. Use
the toggle buttons [1–18] if the channel faders [1 ... 18] are to be addressed,
and the toggle buttons [19–36] if the channel faders [19 ... 36] are to be
addressed.
4. Use the jog wheels [X/SPEED] or [Y/CROSS] to adjust the Pan and Tilt position.
5.
To make assignments for additional devices, repeat steps 2 ... 4.
6.
Press [CLEAR] to cancel the current setting without saving the channel values.
If the X / Y channel is controlled by the jog wheels, the channel faders are
locked automatically. The X / Y position of the units can only be changed
with the jog wheels.
DMX Invader 1024 NET
Operating
Value
** ... 36
<, >
25
