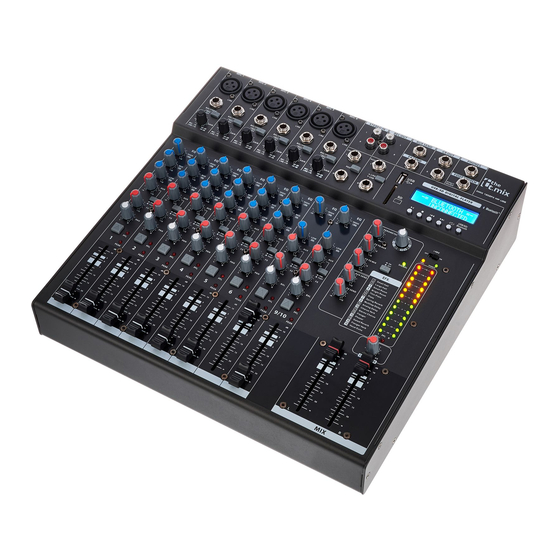

- Page 1 xmix 1202 FXMP USB mixer user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 17.11.2020, ID: 422795 (V3)
-
Page 3: Table Of Contents
Table of contents Table of contents General information......................4 1.1 Further information......................4 1.2 Notational conventions....................4 1.3 Symbols and signal words................... 4 Safety instructions......................... 6 Features............................9 Installation and starting up..................... 10 Connections and controls....................11 Technical specifications....................17 Plug and connection assignment................. -
Page 4: General Information
1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. - Page 5 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a possible dangerous situation that can result in minor injury if it is not avoided.
-
Page 6: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for amplification, mixing and playback of signals from musical instruments and microphones. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 7 Safety instructions CAUTION! Possible hearing damage With loudspeakers or headphones connected, the device can produce volume levels that may cause temporary or permanent hearing impair‐ ment. Do not operate the device permanently at a high volume level. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 8 Safety instructions NOTICE! Possible damage due to installation of a wrong fuse The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used. mixer...
-
Page 9: Features
Features Features 10-channel mixer with built-in FX processor and USB port Bluetooth for wireless data transmission 6 mono channels (MIC, line) with 3-band EQ and low cut 2 stereo channels with balance control 1 × AUX control per channel, PRE/POST selectable Master output L/R via 2 ×... -
Page 10: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 11: Connections And Controls
Connections and controls Connections and controls Mono channel strip 1 [MIC] Balanced XLR mono input to connect a microphone. 2 [LINE] 1/4" phone input to connect a line level audio source (keyboards, drum modules etc., balanced or unbalanced). 3 [80 Hz HPF] High pass filter to attenuate rumble noise and other low frequency interfer‐... - Page 12 Connections and controls Stereo channel strip 14,16 [STEREO IN] RCA sockets for connecting stereo sources. 15,17 [REC OUT] Line outputs with RCA sockets for connecting recording devices. 18,19 [L] 1/4" phone input to connect the left signal of a stereo line level audio source (keyboards, drum modules etc.).
- Page 13 Connections and controls 32 [PEAK] The LED lights up on channel overload. If this happens in the STEREO IN channel press the [PAD] switch. When overload occurs in the REC OUT channel reduce the output level of the signal source connected here. 33 The channel fader sets the strength of the channel signal in the overall signal.
- Page 14 Connections and controls 42 [AUX SEND] At this line level output the signal set with the [ AUX]channel controls is present, maybe to create a monitor mix. 43 [FX SEND] At this line level output the signal set with the [ FX]channel controls is present, maybe to be sent to an external effects device.
- Page 15 Connections and controls 53 [+48V] LED This LED is lit when the phantom power is on. 54 [+48V] switch When this switch is in ON position, a phantom voltage of 48 V is present at the XLR sockets in the mono channels for using condenser mics. If no con‐ denser mics are used, the switch should be in the OFF position.
- Page 16 Connections and controls 60, 61 [MAIN OUTPUTS] Balanced 1/4" phone outputs for connecting power amplifiers, effects or recording devices. 62, 63 [MAIN OUTPUTS] Balanced XLR outputs for connecting power amplifiers, effects or recording devices. 64 [POWER] Mains switch to turn the device on or off. 65 [SIGNAL] IEC chassis plug for mains connection with fuse holder.
-
Page 17: Technical Specifications
Technical specifications Technical specifications Input connections Voltage supply IEC chassis plug C14 Microphone input Type XLR chassis socket, 3-pin, balanced Level + 4 dBu ± 1 dBu max. Impedance balanced: 6 kΩ unbalanced 3 kΩ ±200 Ω Line input Type ¼-inch (6.35-mm) jack socket, balanced or unbalanced Level... - Page 18 Technical specifications Impedance balanced: 100 Ω, unbalanced: 200 Ω Control Room output Type 2 ×1/4" jack socket Level +26 dBu ± 1 dBu max. Impedance balanced: 100 Ω, unbalanced: 200 Ω Stereo headphones output Type 1/4" phone socket Level 150 mW ± 5 mW @ 32 Ω Treble +/- 10 dB, ±...
- Page 19 Technical specifications Weight 4.7 kg Ambient conditions Temperature 0 °C…40 °C range Relative humidity 50 %, non-condensing Further information Built-in effects unit 19" rack-mountable Number of microphone channels Number of stereo inputs Number of AUX ways Phantom power Built-in power supply Parametric Digital interface USB 2.0...
-
Page 20: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 21 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) XLR plug (unbalanced) Ground, shielding Signal Bridged to pin 1 RCA connection Drawing and table indicate the pin assignment of an RCA plug. Signal Ground, shielding xmix 1202 FXMP USB...
-
Page 22: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
