Summary of Contents for EAST COAST Dorset Dresser

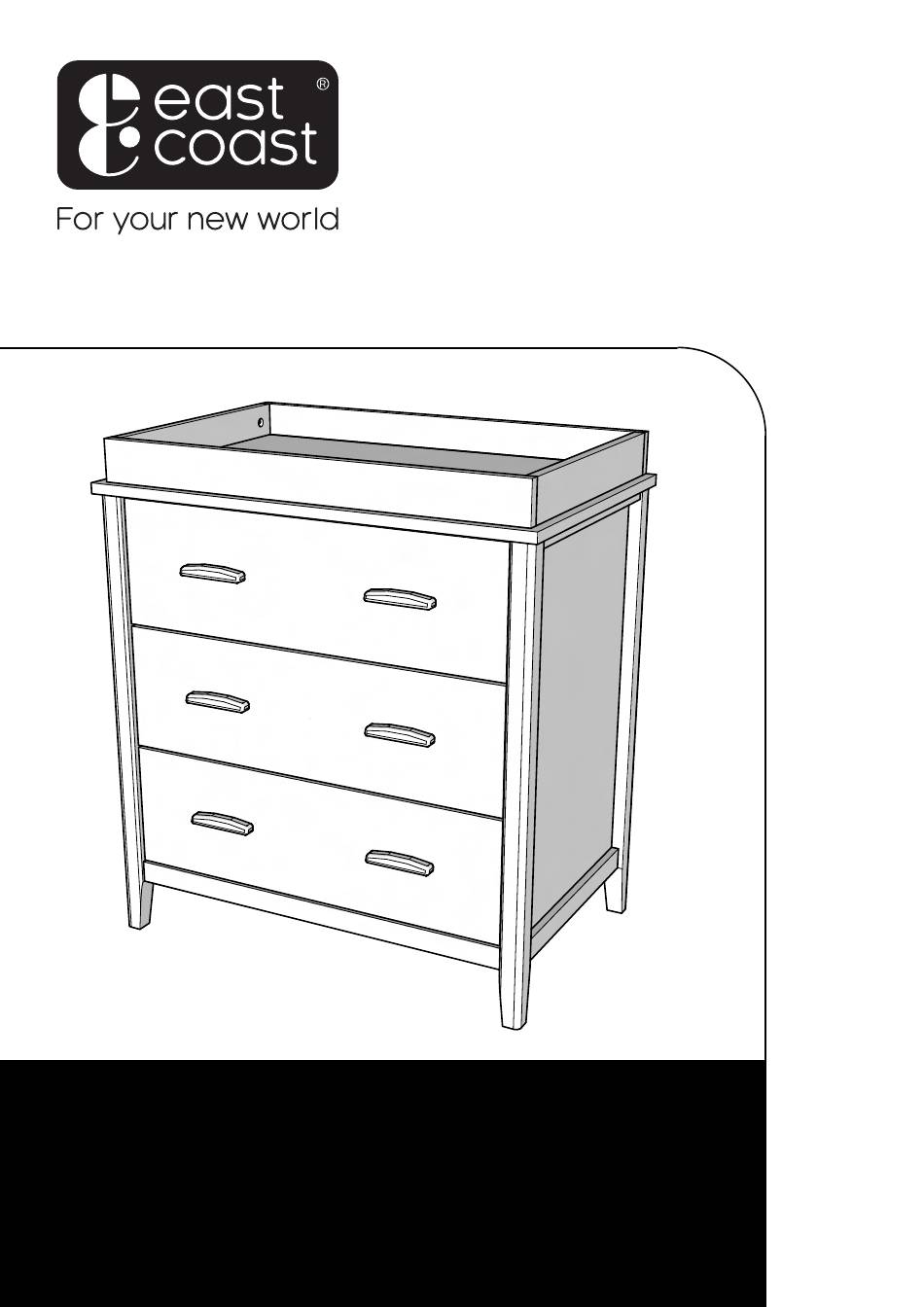

- Page 1 Dorset Dresser Assembly and care instructions...
- Page 2 IMPORTANT. RETAIN FOR FUTURE REFERENCE: READ CAREFULLY Thank you for purchasing an East Coast product. It’s been carefully designed and constructed to offer quality, safety and reliability for you and your baby. If you have a query about this product or require replacement parts, please contact 01692 408802.
- Page 3 Wooden Parts Changer back Top panel Changer side x 2 Dresser side x 2 (L & R) Changer base Changer front Crossbar (upper) x 2 Crossbar x 5 Back panel (upper) Back panel (lower) Drawer side x 6 (3L & 3R) Drawer back x 3 Drawer base x 3 Drawer front panel x 3...
- Page 4 Assembly 1 Crossbar x 5 Crossbar (upper) x 2 NOTE: Take care to insert the dowels into the A x 7 correct holes as indicated. Repeat for the opposite end of each crossbar. (Total 14 x part A) Assembly 2 C x 7 Dresser side NOTE: Repeat for the remaining...
- Page 5 Assembly 3 Crossbar Crossbar (upper) D x 7 1/2 turn clockwise NOTE: Ensure the x 2 Crossbar (upper) face downwards, using holes for D fixings as reference. Assembly 4 Dresser side D x 7 1/2 turn clockwise...
- Page 6 Assembly 5 Top panel E x 3 E x 4 (each side) (front and rear) Assembly 6 Back panel (upper) (ensure slot is toward the top) Back panel (lower) NOTE: When fitting the back, push the panel into the top corners so that the side and top edges contact the recess evenly all the way around I x 24...
- Page 7 Assembly 7 Changer side A x 4 (each end) Assembly 8 Changer front Changer back C x 4 Assembly 9 Changer side Changer back Changer base Changer side D x 4 1/2 turn Changer front clockwise...
- Page 8 Assembly 10 Changing unit Assembly 11 L x 2 I x 2 K x 2...
- Page 9 Assembly 12 Drawer back M x 2 J x 4 Drawer front B x 2 (each side) NOTE: Repeat for remaining 2 drawers Assembly 13 Drawer side Drawer front Drawer base H x 4 F x 2 Drawer back (each side) Drawer side G x 2 (each side)
- Page 10 Assembly 14 The dresser is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Washer x 2 Screw (short) Screw (long)
- Page 11 Assembly 15 Drawer runners NOTE: To prepare the Drawer runners, compare with images 1 and 2 below. If part A is in position 1, move forward against the spring pressure until firm resistance is felt. Press the tab on A down to lock in position. Slide part B forward until it is at the front edge of the runner.
-
Page 12: Care And Maintenance
Do not use the dresser if any of the parts are broken, torn or missing. Any additional or replacement parts can only be obtained from the manufacturer or the distributor. For customer care or enquiries: Call: 01692 408802 Email: nursery@east-coast.co.uk East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX eastcoastnursery.co.uk 8290-1...
