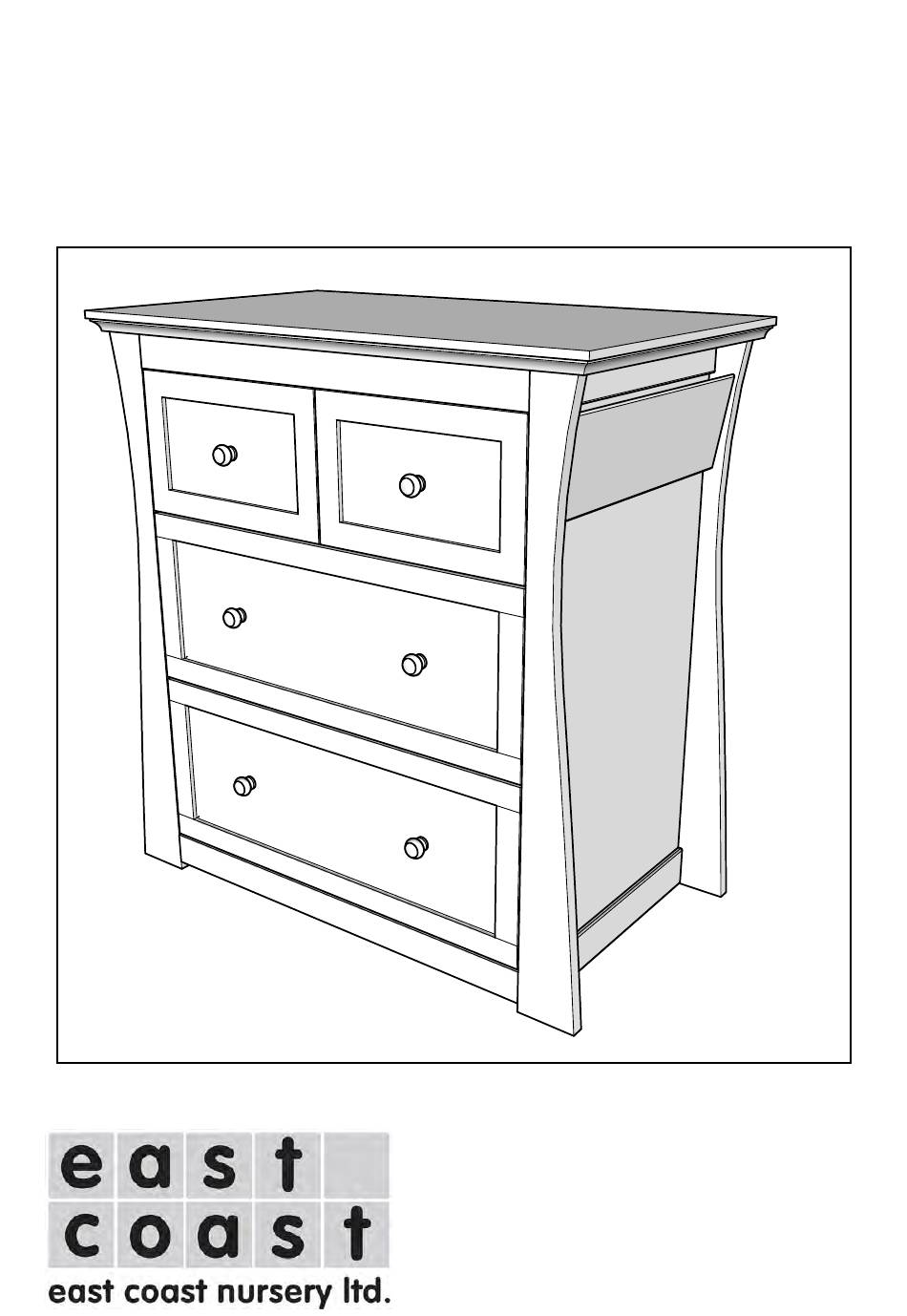

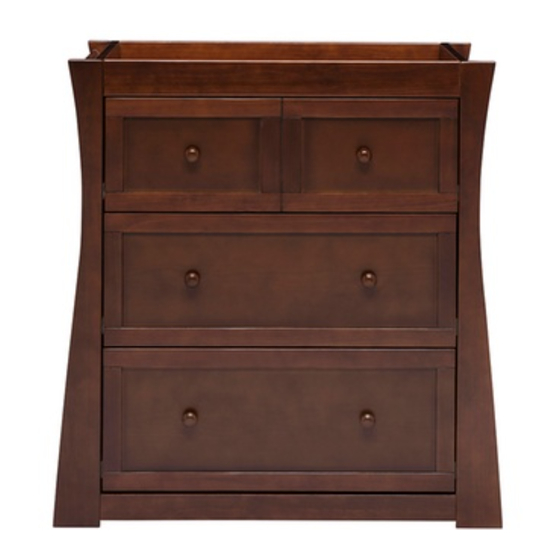

- Page 1 Devon Dresser...
- Page 2 Important Retain for future reference: Read carefully Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of this product. Your child’s safety is your responsibility. If you have a query with this product or require replacement parts, please contact 01692 408802.
- Page 3 Wooden Parts Changer Back Back Panel (Upper) Changer Cover Changer Front Back Panel (Lower) Changer Surface Dresser Side 1 Dresser Side 2 Drawer Back x 3 Drawer Baser x 3 Drawer Front (Top) Centre Crossbar Drawer Front (Centre) Drawer Brace x 3 Drawer Side x 3 (L &...
- Page 4 Assembly 1 Changer Front Changer Back Centre Crossbar Lower Rear Crossbar Lower Front Crossbar C x 7 NOTE: Take care to insert the dowels into the correct holes as indicated. Repeat for the opposite end of each crossbar. (Total 14 x part C) Assembly 2 Changer Front Changer Back...
- Page 5 Assembly 3 Changer Surface Assembly 4 Dresser Side 2...
- Page 6 Assembly 5 Back Panel (Upper) I x 16 Back Panel (Lower) I x 16 NOTE: Ensure that the slot in the Back Panel (Upper) is at the top. Assembly 6 Drawer Front (Top) Drawer Side (R) H x 2 Drawer Side (L) NOTE: H x 2 Repeat for remaining Drawer...
- Page 7 Assembly 7 Drawer Base NOTE: Repeat for remaining drawers. Assembly 8 NOTE: Ensure slots in part F are visible. Repeat for remaining drawers. F x 4 Drawer Back Drawer Brace...
- Page 8 Assembly 9 G x 4 NOTE: Repeat for remaining drawers. Assembly 10 NOTE: Repeat for remaining drawers. K x 2 J x 2...
- Page 9 Assembly 11 Top drawer Centre drawer Bottom drawer Assembly 12 Changer Cover NOTE: The Changer Cover must not be fitted when using as a changing unit. Store Nappy Storage safely. Ensure that the Changer Cover is securely located on the top of the unit when using as a dresser.
- Page 10 Assembly 13 The dresser is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Washer x 2 Screw (15mm) Screw (25mm)
- Page 11 BLANK PAGE...
-
Page 12: Care And Maintenance
Do not use the dresser if any of the parts are broken, torn or missing. Any additional or replacement parts can only be obtained from the manufacturer or the distributor. Customer Care line for this Product 01692 408802 East Coast Nursery Ltd. Robertson House, North Walsham, Norfolk, NR28 0BX www.eastcoastnursery.co.uk 7843-02...
