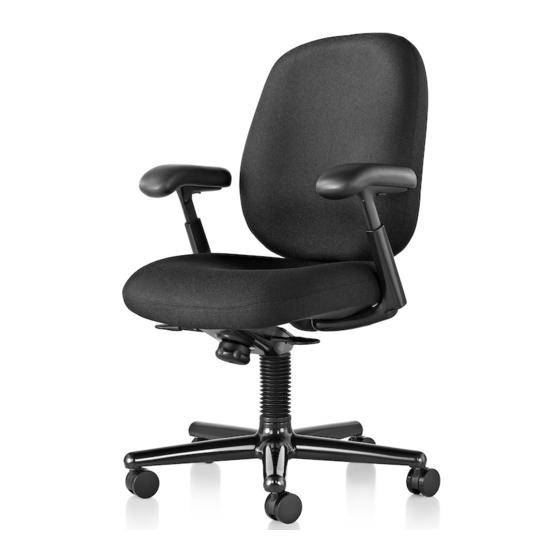

- Page 1 Read this while adjusting your Ergon 3 chair ®...
- Page 2 Seat Height Tilt Tension Knob under seat on front of chair Pneumatic: Paddle-shaped lever on right side To increase: While seated, turn knob To raise: While raising your weight off chair, to the left. lift lever. To decrease: While seated, turn knob To lower: While seated, lift lever.
- Page 3 Back Height Arm Height Bottom of back cushion Button underneath each armpad To raise back: While seated, grasp bottom To raise or lower arm: While seated, grasp corners of back cushion and raise to arm and push button in. Raise or lower to desired position.
- Page 4 Arm Angle Arm Width Front of each armpad Back of each armpad To swing arms in or out: While seated, To move armpads closer or further apart: grasp front end of armpad and pivot it to While seated, grasp back end of armpad and the left or right.
- Page 5 Tilt Lock Forward Tilt/Tilt Lock (for chairs with knee tilt only) (for chairs with knee tilt/forward angle) Lever on right side Forward Tilt: Small lever on right front corner Tilt Lock: Paddle-shaped lever on left side To lock chair in upright position: While To position chair forward: Lean back seated upright, push lever in.
- Page 6 Back Angle Footring Height Lever under seat pan on back of chair Footring at base of chair To make more reclined: While seated, lean To set: Lift and turn ring counterclockwise; forward slightly to take weight off back of set at desired height. chair.
- Page 9 Instructions on this card show all possible adjustments. Specific adjustments vary according to chair model.
- Page 10 Care and Maintenance Manual available from your Herman Miller dealer. For more information about our products and services or to see a list of dealers, please visit us at www.hermanmiller.com or call (800) 851 1196. © 2000 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 172052-C O.EE6200 ®...
