Embody

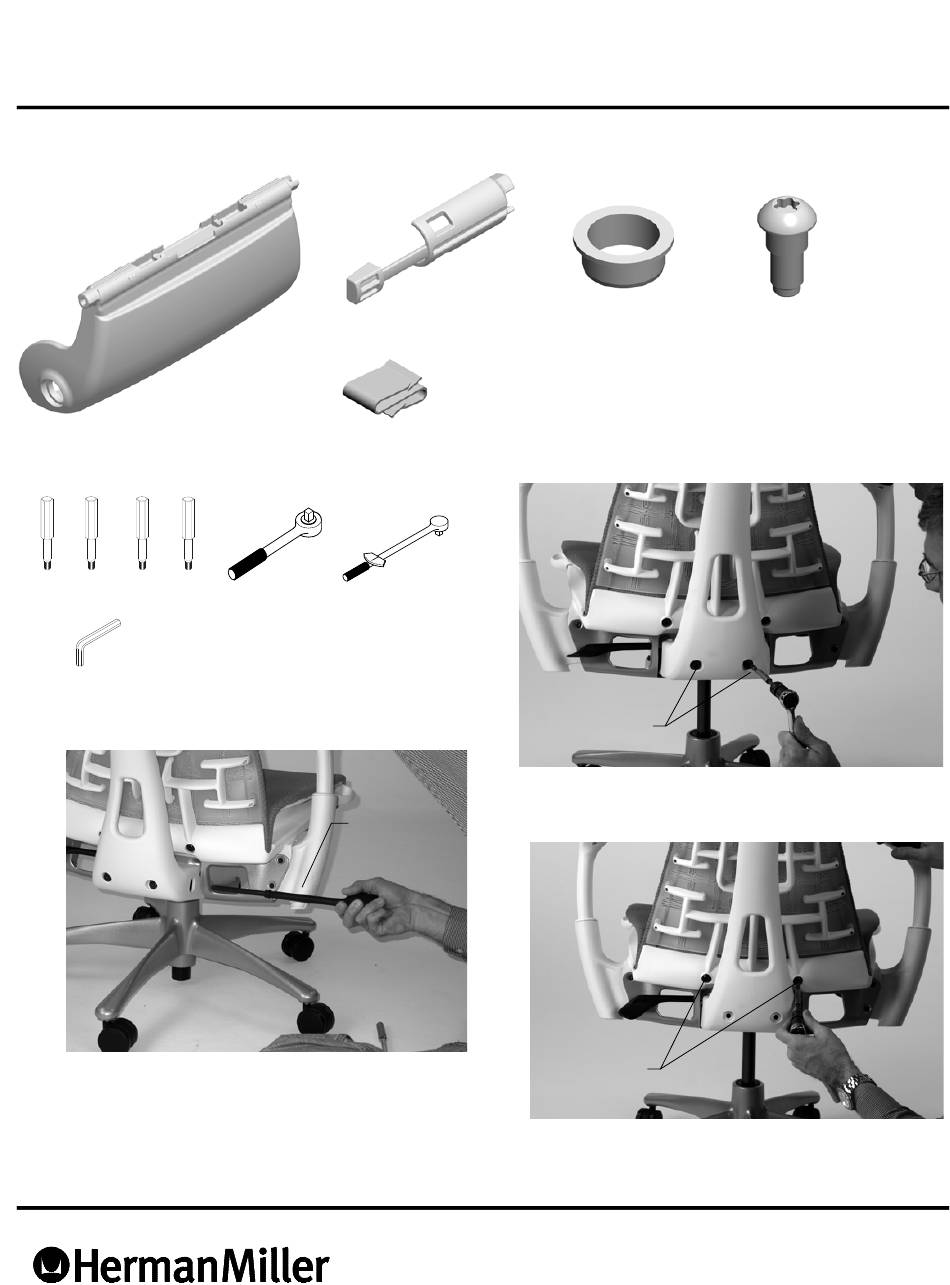

Front Seat Link Replacement
PARTS INCLUDED:
Front Seat Link
TOOLS REQUIRED:
T-30 T-40
T-45
T-27
Torx bits
1/16" Allen Wrench
1
Remove back tension adjustment rod by insert-
ing 1/16" allen wrench underneath rod to
release and then pulling out. (Chairs built prior
to 4/3/09 can be removed by wiggling up and
down while pulling out to disengage.)
Upper Link Bushing (2)
S-Clip (2)
Ratchet
Torque Wrench
Tension
Adjustment Rod
©
2017 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A.
L, Z, Y, Embody, are trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication. The right is reserved to make
changes in design and specifications at any time, without notice, and also to discontinue products.
Flange Bushing (2)
2
Bolts
Remove lower spine bolts using t-40 torx
wrench
3
Bolts
Remove lower back bolts using t-40 torx
wrench
Shoulder Bolt (2)
1B4YHZ REV B
