Summary of Contents for HermanMiller Equa 2

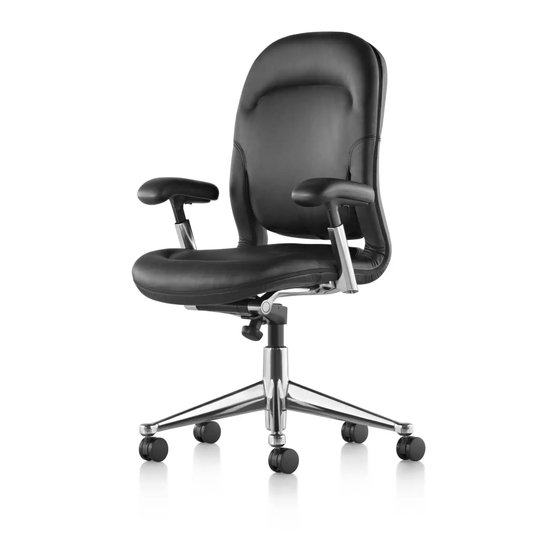

- Page 1 Read this while adjusting your Equa 2 chair ®...
- Page 2 Shell Flexibility Seat Height Pneumatic: Paddle-shaped lever on right side To raise: While raising your weight off chair, lift lever. To lower: While seated, lift lever. Mechanical To raise: While standing, turn chair counter- clockwise. To lower: While standing, turn chair clockwise. Flexibility of the shell allows the chair to Adjust chair height so feet rest flat on floor automatically adapt to your movements while...
- Page 3 Tilt Tension Arm Height Knob under seat at front of chair Button underneath each armpad To increase: While seated, turn knob to the left. To raise or lower arm: While seated, grasp To decrease: While seated, turn knob to the right. arm and push button in.
- Page 4 Arm Angle Arm Width Front of each armpad Back of each armpad To swing arms in or out: While seated, To move armpads closer or further apart: grasp front end of armpad and pivot it to While seated, grasp back of armpad and slide the left or right.
- Page 5 Lumbar Depth Lumbar Height Pump pad and release button on front of Small handles on outside of chair back right back support To increase lumbar support: While lifting To change height: While seated, completely your weight off back of chair, push pump pad deflate lumbar support by pressing release in to inflate lumbar support and achieve button.
- Page 6 Tilt Lock Footring Height Paddle-shaped lever on left side Footring at base of chair of tilt mechanism To lock chair in upright position: While To set: Lift and turn ring counterclockwise; seated upright, swing paddle back. set at desired height. To release tilt lock: Swing paddle forward.
- Page 9 Instructions on this card show all possible adjustments. Specific adjustments vary according to chair model.
- Page 10 For the location of the sales facility or dealer near you, visit www.hermanmiller.com or call (800) 851 1196. © 1999 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 172050 O.EN6200 ® z, y, and Equa 2 are among the registered trademarks of Herman Miller, Inc.
