HermanMiller Eames CTM Assembly Instructions

HermanMiller Eames CTM Assembly Instructions

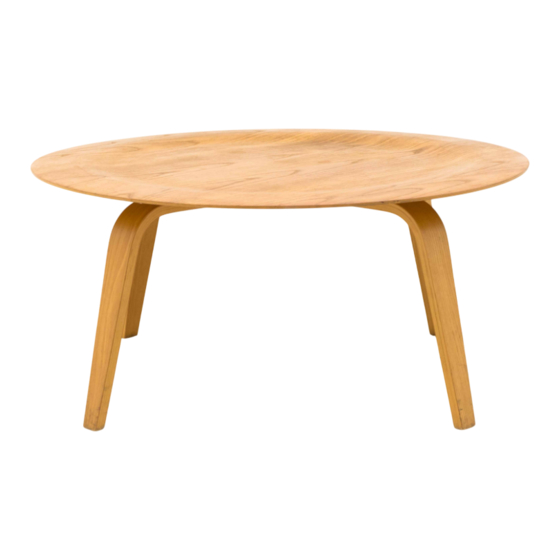

Molded plywood coffee table

Advertisement

Quick Links

HermanMiller
The Collection
Eames

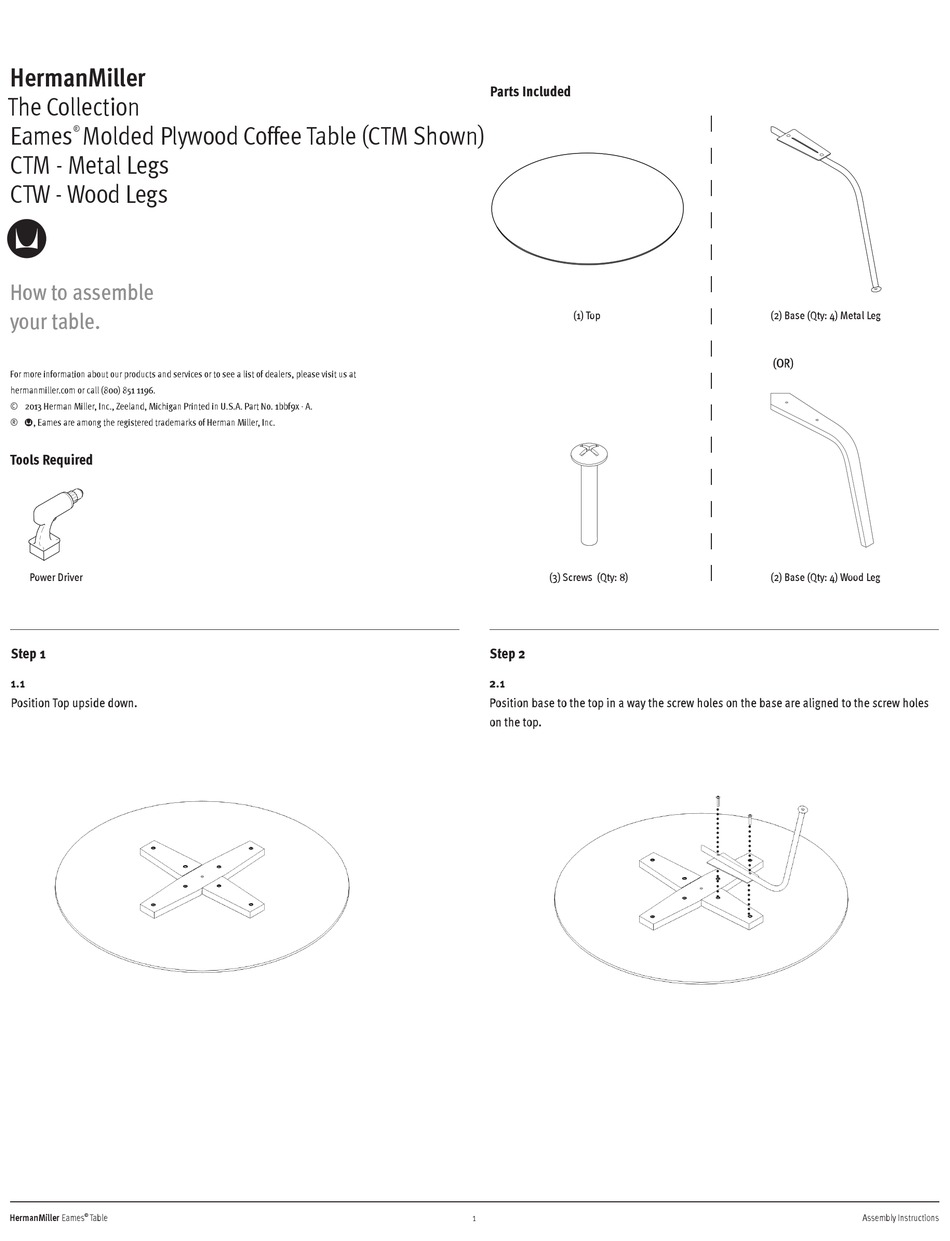

Molded Plywood Coffee Table (CTM Shown)
®
CTM - Metal Legs
CTW - Wood Legs
How to assemble
your table.
For more information about our products and services or to see a list of dealers, please visit us at
hermanmiller.com or call (800) 851 1196.
© 2013 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1bbf9x - A.
® Y, Eames are among the registered trademarks of Herman Miller, Inc.

Tools Required

Power Driver

Step 1

1.1
Position Top upside down.
HermanMiller Eames
Table
®

Parts Included

(1) Top
(3) Screws (Qty: 8)

Step 2

2.1
Position base to the top in a way the screw holes on the base are aligned to the screw holes
on the top.
1
(2) Base (Qty: 4) Metal Leg
(OR)
(2) Base (Qty: 4) Wood Leg
Assembly Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eames CTM and is the answer not in the manual?

Questions and answers

Summary of Contents for HermanMiller Eames CTM

  • Page 1 For more information about our products and services or to see a list of dealers, please visit us at hermanmiller.com or call (800) 851 1196. © 2013 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1bbf9x - A.
  • Page 2 Step 3-A Step 4-A Step 5 Step 6 Repeat steps 2 & 3 to assemble the remaining 3 legs. Rotate the table back to its original position. Metal Leg Metal Leg Wood Leg Wood Leg HermanMiller Eames Table Assembly Instructions ®...

This manual is also suitable for:

Eames ctw
