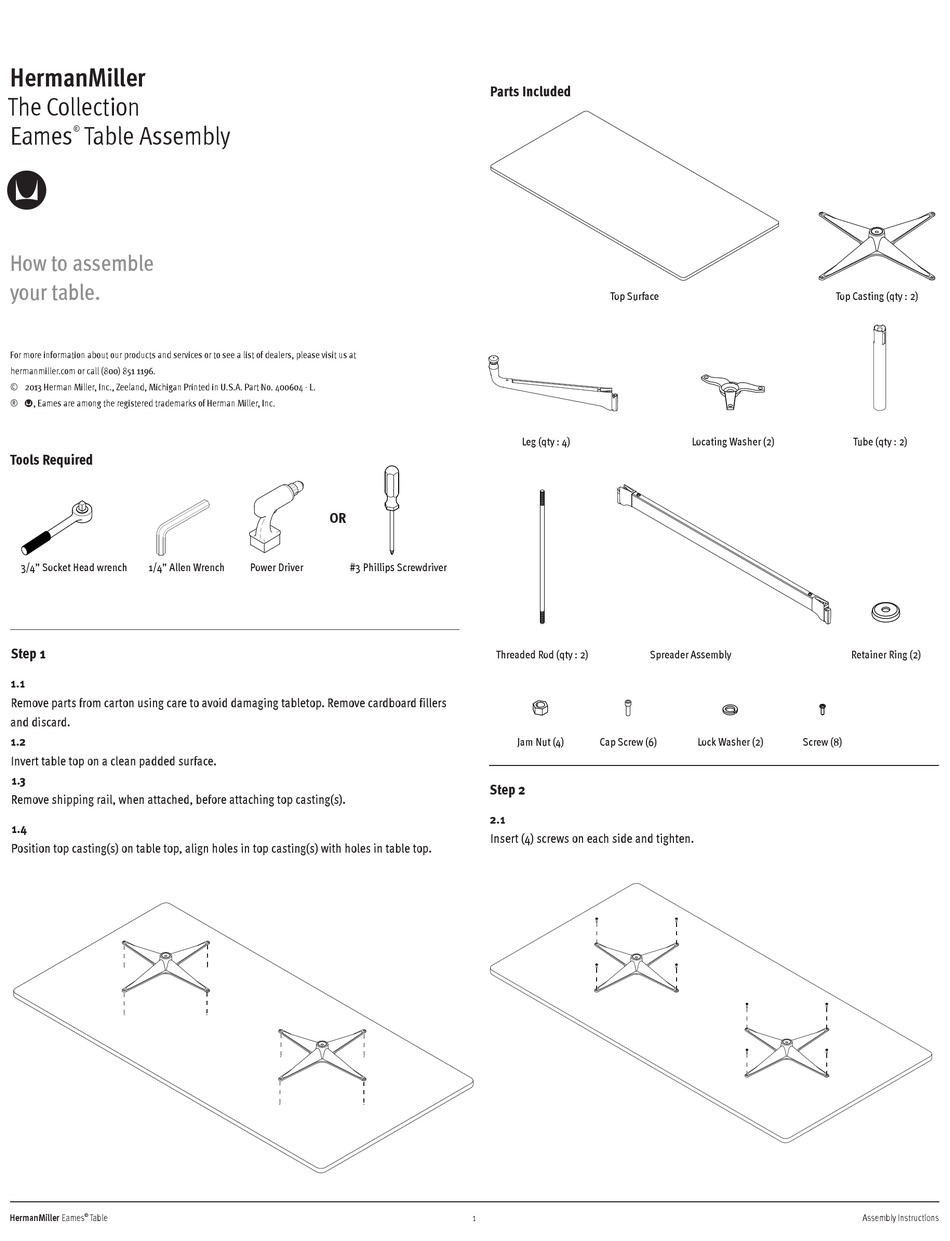

HermanMiller
The Collection
Eames
Table Assembly
®
How to assemble
your table.
For more information about our products and services or to see a list of dealers, please visit us at
hermanmiller.com or call (800) 851 1196.
© 2013 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 400604 - L.
® Y, Eames are among the registered trademarks of Herman Miller, Inc.

Tools Required

3/4" Socket Head wrench
1/4" Allen Wrench

Step 1

1.1
Remove parts from carton using care to avoid damaging tabletop. Remove cardboard fillers
and discard.
1.2
Invert table top on a clean padded surface.
1.3
Remove shipping rail, when attached, before attaching top casting(s).
1.4
Position top casting(s) on table top, align holes in top casting(s) with holes in table top.
HermanMiller Eames
Table
®
OR
Power Driver
#3 Phillips Screwdriver

Parts Included

Top Surface
Leg (qty : 4)
Threaded Rod (qty : 2)
Spreader Assembly
Jam Nut (4)
Cap Screw (6)

Step 2

2.1
Insert (4) screws on each side and tighten.
1
Top Casting (qty : 2)
Locating Washer (2)
Tube (qty : 2)
Retainer Ring (2)
Lock Washer (2)
Screw (8)
Assembly Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eames and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HermanMiller Eames

  • Page 1 (800) 851 1196. © 2013 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 400604 - L. ® Y, Eames are among the registered trademarks of Herman Miller, Inc. Leg (qty : 4) Locating Washer (2)
  • Page 2 Threaded rod end with jam nut all the way into the top casting. Tighten jam nut against top casting. Step 5 Step 6 Place spreader assembly into slot in tubes, when applicable. Insert legs into slots in the tubes. HermanMiller Eames Table Assembly Instructions ®...
  • Page 3 Place lock washer and threaded nut on threaded rod and tighten the nut to 45 ft lbs. Note: Retainer ring fits inside of tube Place locating washer over legs and spreader assembly. Insert cap screw and tighten Step 9 Place table in upright position. HermanMiller Eames Table Assembly Instructions ®...
