HermanMiller
The Collection
®
Eames

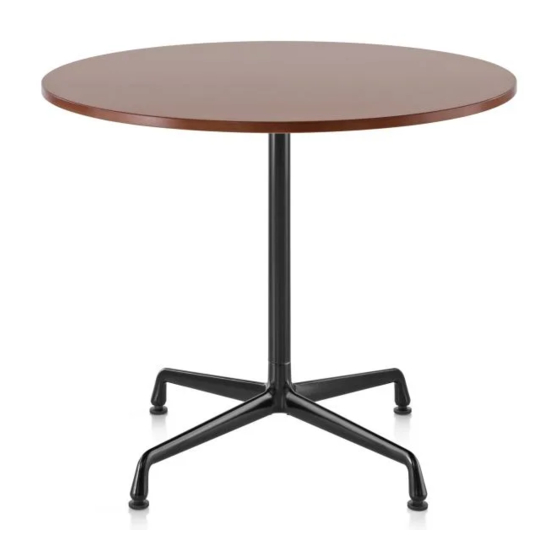

Square, Round, and Mobile Table Assembly
How to assemble
your table.
For more information about our products and services or to see a list of dealers, please visit us at
hermanmiller.com or call (800) 851 1196.
© 2013 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 108445 - L.
® Y, Eames are among the registered trademarks of Herman Miller, Inc.

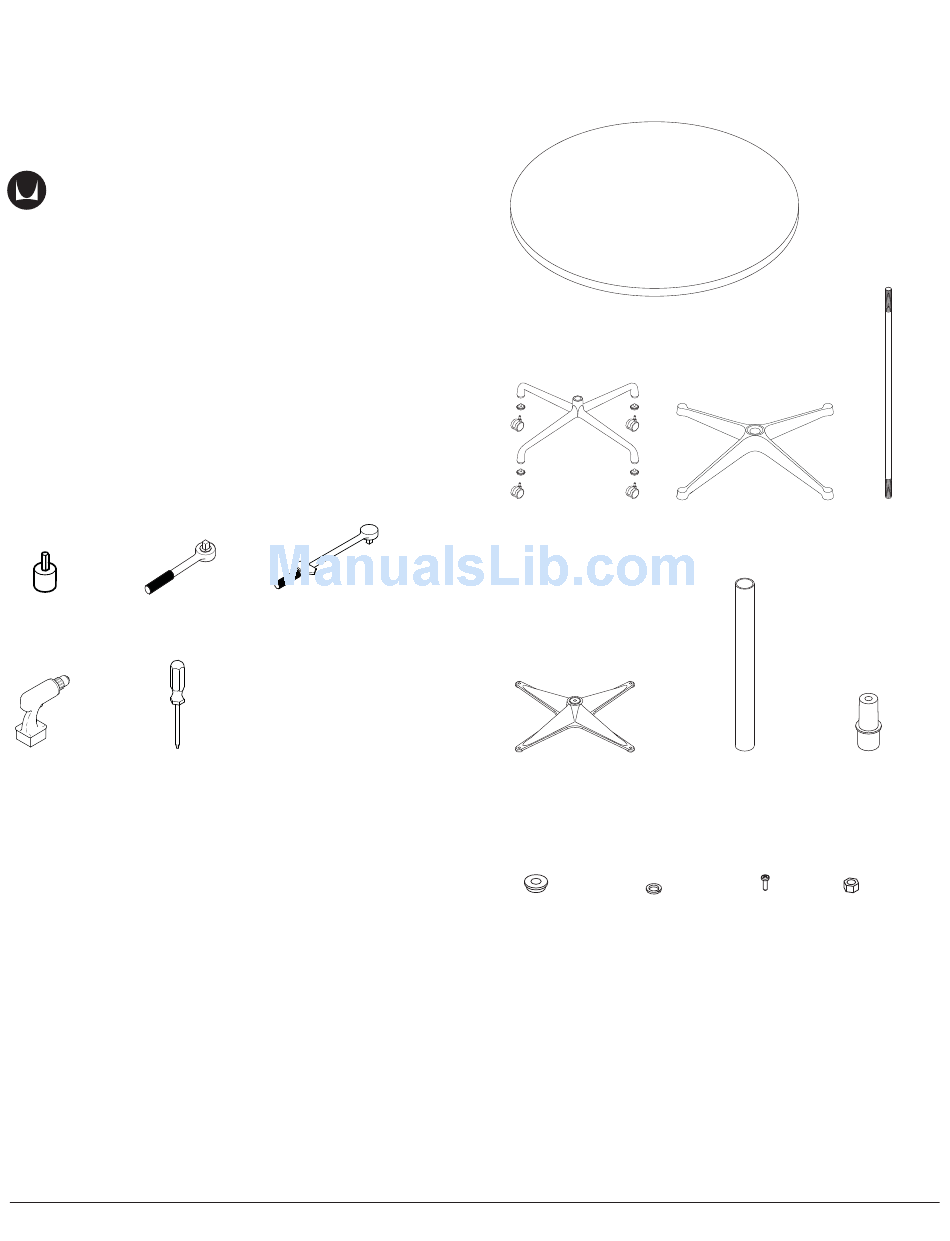

Tools Required

3/4" Hex Socket
Ratchet Wrench
OR
Power Driver
#3 Phillips Screwdriver
HermanMiller Eames
®
Table
Torque Wrench
Parts Included
Top Surface
Base Casting
(Universal base)
Top Casting
Washer
Lock Washer
1
Contract Base
Threaded Rod
Tube
Steel Bushing
(Universal base only)
Screw (4)
Jam Nut

Assembly Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eames Square and is the answer not in the manual?

Questions and answers

Summary of Contents for HermanMiller Eames Square

  • Page 1 For more information about our products and services or to see a list of dealers, please visit us at hermanmiller.com or call (800) 851 1196. © 2013 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 108445 - L.
  • Page 2 Insert rod, jam nut down, and thread completely into top casting. Tighten jam nut against top casting. Insert (4) screws and tighten.. Step 3 Step 4 Place tube over rod onto top casting. For universal base only-place steel bushing over rod into tube. ® HermanMiller Eames Table Assembly Instructions...
  • Page 3 Assemble washer and lock washer onto threaded rod. Torque jam nut to minimum of 40 ft-lbs. casting legs are aligned approximately with top casting arms. ( for mobile table only, insert casters into base). Step 7 Place table in upright position and return to service. HermanMiller Eames ® Table Assembly Instructions...

This manual is also suitable for:

Eames roundEames mobile
