HermanMiller Nelson Installation Instructions

HermanMiller
The Collection

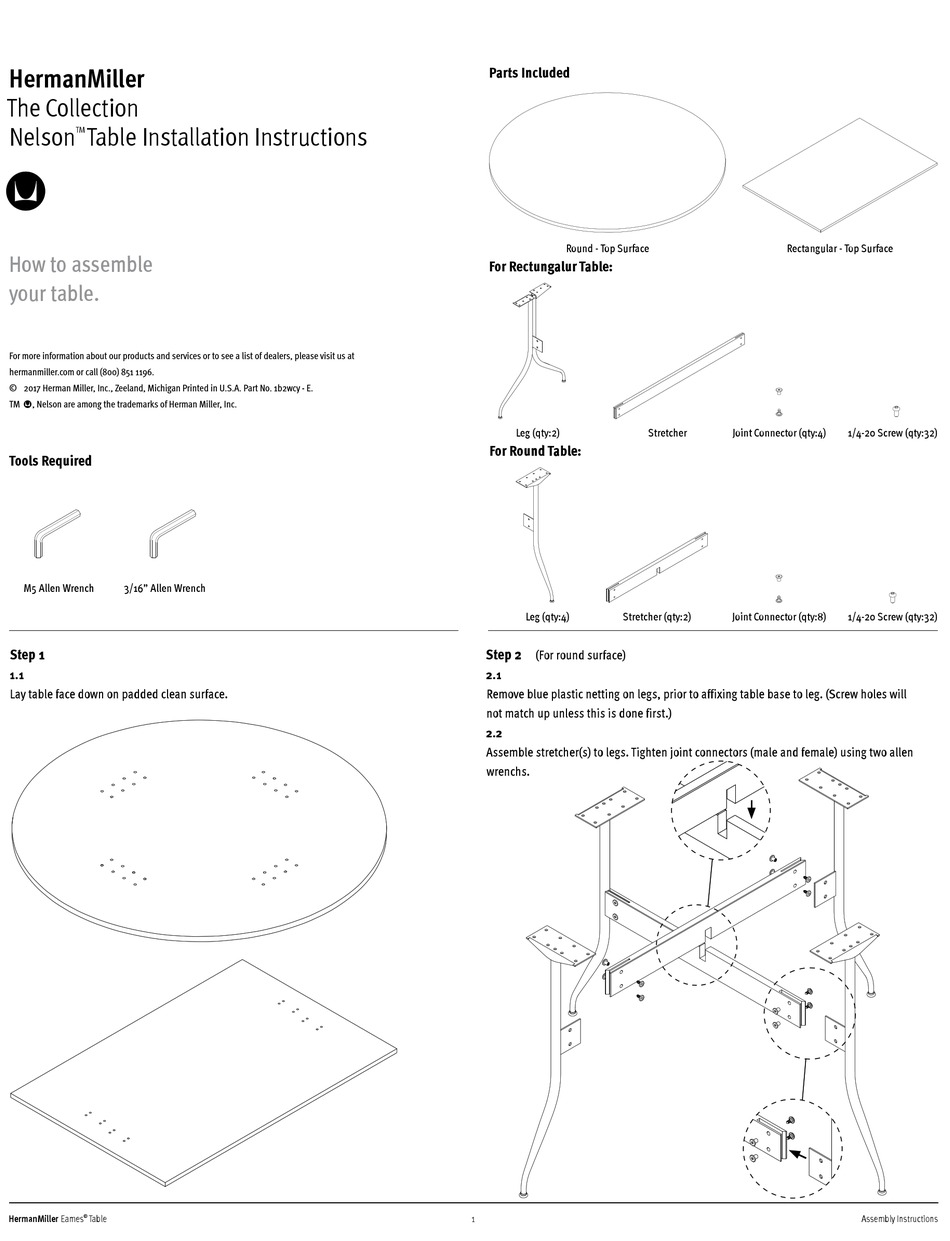

Nelson Table Installation Instructions
TM
How to assemble
your table.
For more information about our products and services or to see a list of dealers, please visit us at
hermanmiller.com or call (800) 851 1196.
© 2017 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1b2wcy - E.
TM Y, Nelson are among the trademarks of Herman Miller, Inc.
Tools Required
M5 Allen Wrench 3/16" Allen Wrench
Step 1
1.1
Lay table face down on padded clean surface.
HermanMiller Eames Table
®
Parts Included
Round - Top Surface
For Rectungalur Table:
Leg (qty:2) Stretcher
For Round Table:
Leg (qty:4) Stretcher (qty:2)
Step 2
(For round surface)
2.1
Remove blue plastic netting on legs, prior to affixing table base to leg. (Screw holes will
not match up unless this is done first.)
2.2
Assemble stretcher(s) to legs. Tighten joint connectors (male and female) using two allen
wrenchs.
1
Rectangular - Top Surface
Joint Connector (qty:4) 1/4-20 Screw (qty:32)
Joint Connector (qty:8) 1/4-20 Screw (qty:32)
Assembly Instructions
