Infineon EconoPIM™ 3 IGBT Module EB1200-352J Evaluation Board
Chapter 2: Introduction
The EB1200-352J evaluation driver board with integrated DC bus, shown in
Figure
1, is developed to support Broadcom
customers during their first steps in designing inverter applications with the ACPL-352J gate drivers. Board properties and
typical performance are described in this reference manual. Information related to design is given with an aim to enable
customers to copy and modify the design specifics according to their technical requirements and use it in their own designs
(see
Section A.4,
Disclaimer).
The design is tested, as described in this document, at the temperature of 25°C, but it is not qualified regarding operation in
the entire operating ambient temperature range of ACPL-352J, or its lifetime. The board is subjected to functional testing
only. Electrical components used in this design are selected to be suitable for lead-free reflow soldering.

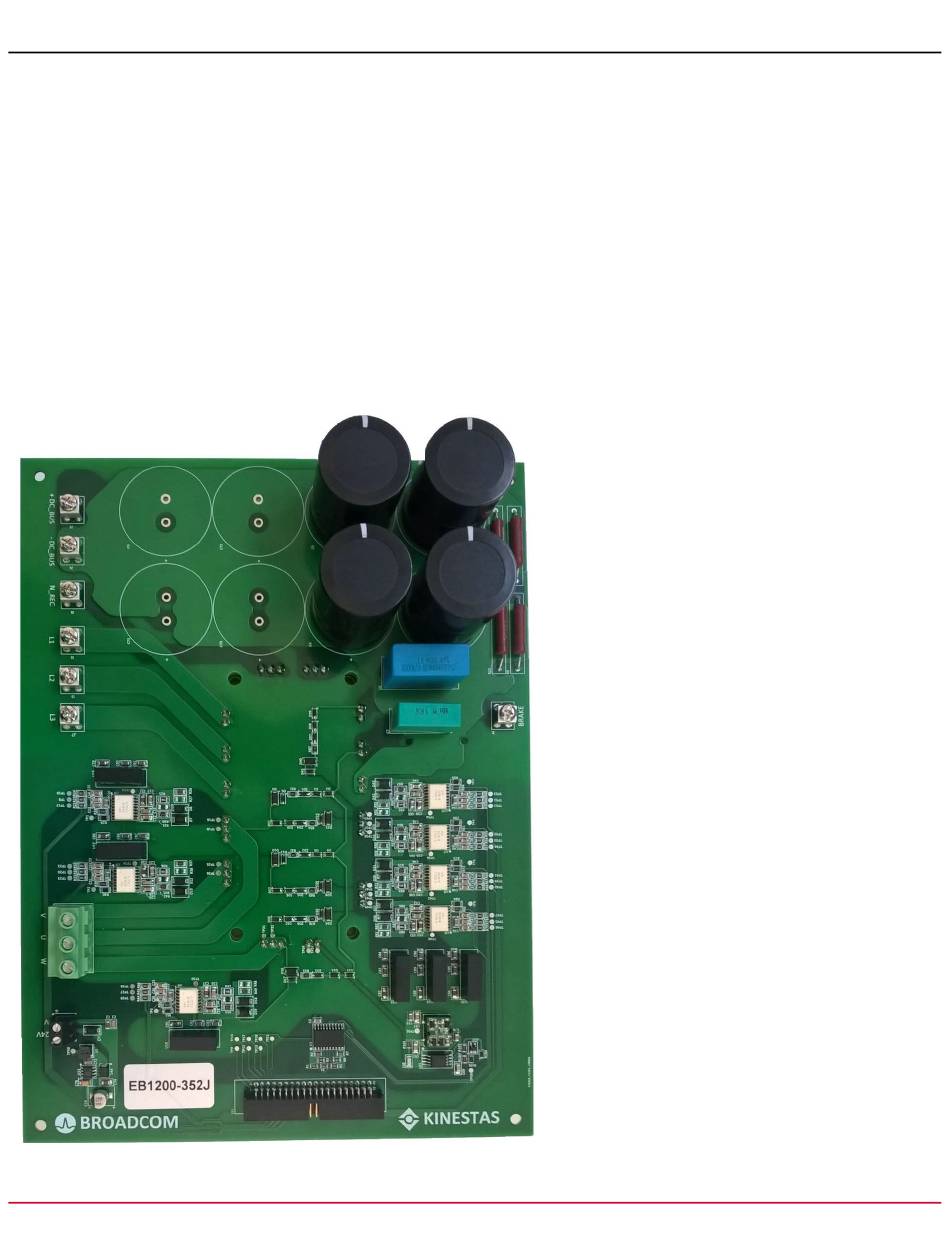

Figure 1: Evaluation Gate Driver Board EB1200-352J
Broadcom
ACPL-352J-EB1200-RM100
7
