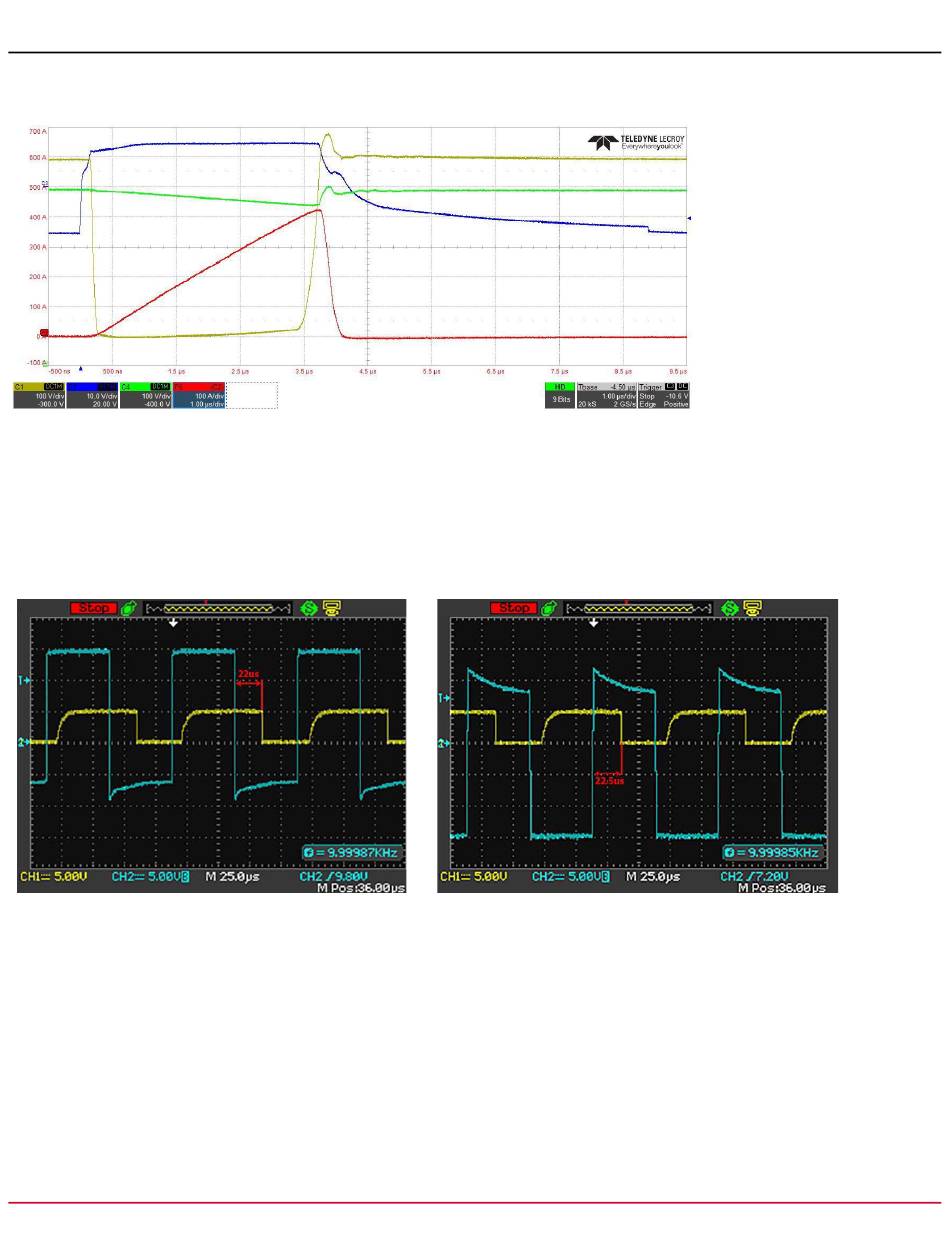

Figure 20: Measurement Results from DESAT Detection, Direct Short Circuit at V
= 600V, CH1 (Yellow) V
, CH3 (Blue) V
,
dc
ce
ge
CH4 (Green) V
, F6 (Red) I
dc
c
6.4 Typical GFAULT Performance
Typical GFAULT detection in condition when the gate voltage is below the GFAULT thresholds is shown in Figure 21 in cases
a) IGBT turn-on and b) IGBT turn-off.
Figure 21: Measurement Results from GFAULT Detection, CH1(Yellow) GFAULT, CH2(Blue) V
ge
a)
b)
