Step 5

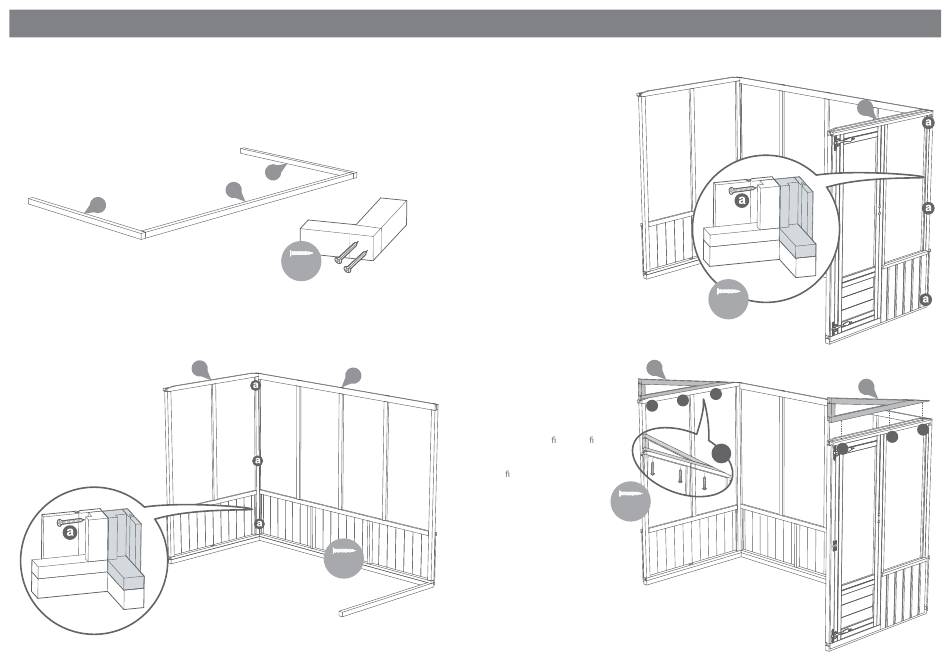

Lay the panel joists down as shown in the diagram on a firm and level base, ensure base has suitable
drainage free from areas where standing water can collect (see front page on base requirements).
Ensure the base is square and fix together with 2 x 70mm screws per corner - pre drill to avoid splitting the
timber.
12
Step 6
Position the rear panel on the
1
base, the frame sits onto the
base with the cladding
overlapping. Locate the side
and rear panel frame to frame
as in diagram and fix with 3 x
70mm screws using fixing
method A, pre drill to avoid
splitting the timber.
* The door and rear panel are
both interchangable and can
be positioned either end,
decide which works best
before assembly. (see
04GRECOM0808 assembly)*
12
11
70mm
screw
4x70mm Screws
2
70mm
screw
3x70mm Screws
Please retain product label and instructions for future reference
Step 7
Fix the door panel using the
same method shown in step 6.
Step 8
6
Place the left and right gable
tops onto the groove of each
c
side. Secure in place using 3 x
50mm screws per side.
Pre drill holes rst then x
screws from the side gable up
into the gable top as shown
in xing C.
50mm
screw
70mm
screw
c
c
c
c
3
3x70mm Screws
5
c
c
6 x 50mm screws
