3.1.43 Enlarge/diminish individual curves

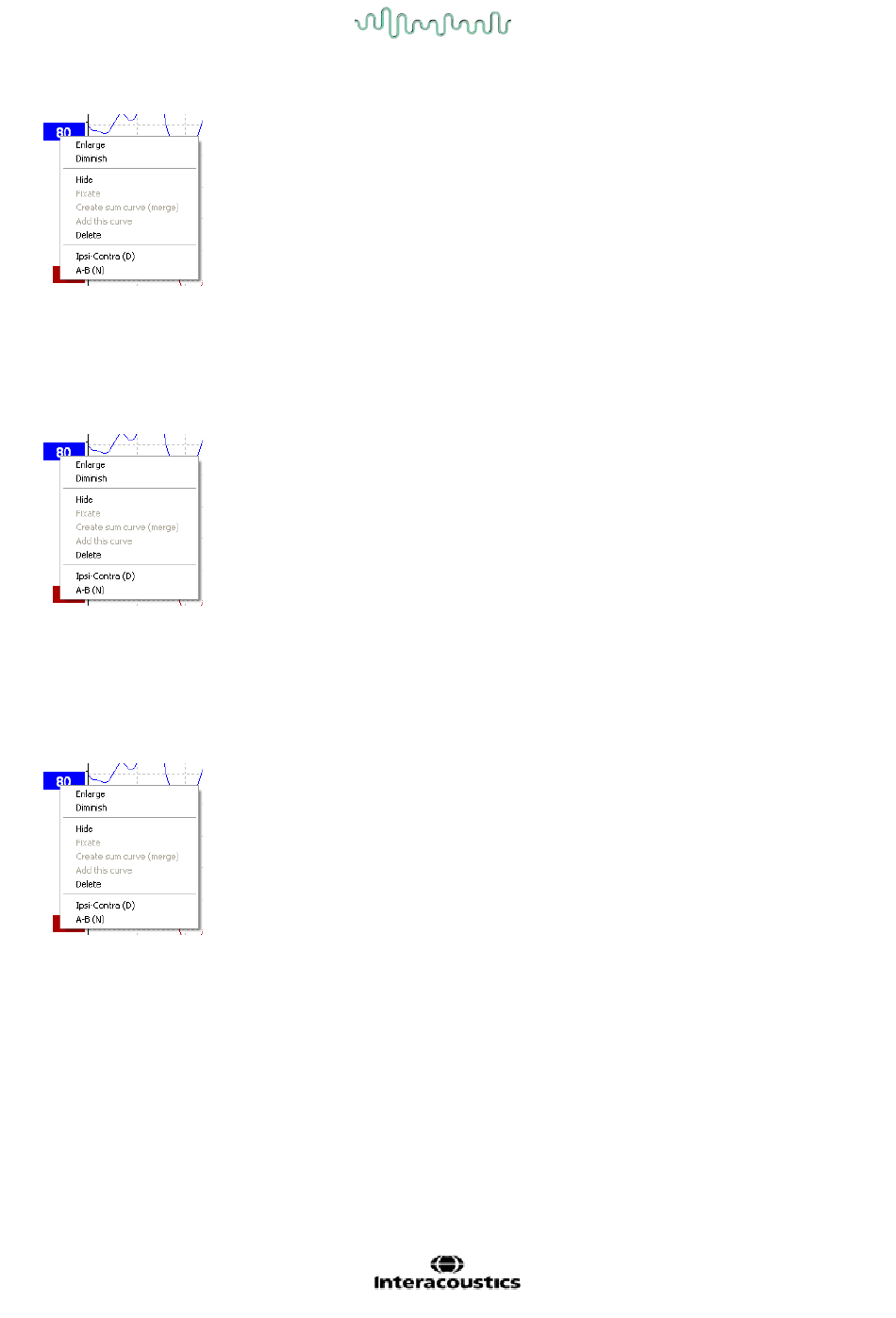

Change the Display Gain for a single curve by right clicking on the selected curve's handle and selecting the
Enlarge or Diminish option. Alternatively, use Ctrl + the up or down arrow key on the keyboard for the
selected waveform.

3.1.44 Hiding individual curves

Right click on the curve's handle to select Hide. This will hide the curve temporarily.
The handle will remain visible to indicate the presence of the hidden curve. Right click on a hidden curve's
handle to Show the curve

3.1.45 Fixate individual curves /comparing to a historic session

Right click on the curve's handle to Fixate the curve on the screen. The fixated curve/s may be compared to
previous sessions which are brought forward by pressing the PgUp or PgDn keys on the keyboard.
This function is only available if you have just recorded the test or when entering the software in new test
mode. It is not available if you have entered the edit mode directly from the database.

3.1.46 Merging curves (creating a summed curve)

Curves of the same intensity, stimulus type and ear can be merged to create a sum curve based on the total
average of the individual sweeps of the two selected curves.
1. Select one curve by doubling clicking on the curve's handle.
2. Right click on the second curve and select Create sum curve (merge).
The merged/summed curve can be split back into its two original curves by right clicking on the handle and
selecting Undo Sum Curve.
D-0120578-C – 2019/11
Eclipse – Instructions for Use - US Page 33
